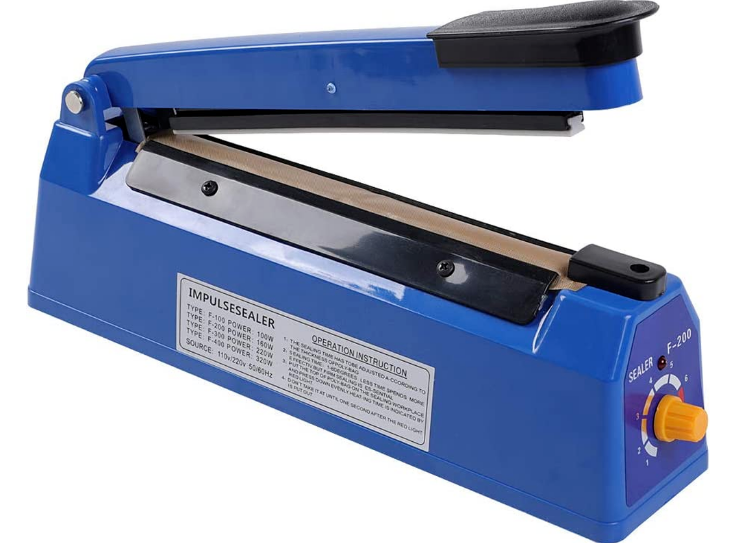

Hand Sealing Machinery Impulse Heat Polythene Sealer PFS-150

Hand Sealing Machinery Impulse Heat Polythene Sealer PFS-150

Hand Sealing Machinery PFS-150 Impulse Heat Make 150mm / 15cm / 6 Inchs Wide Polythene Plastic Bag Film Sealer By Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Hand Sealing Machinery Plastic (ABS) Body PFS-Series Impulse Heat Make Polythene Plastic Bag Film Sealer is probably the most ubiquitous packaging machines and are used to seal bags for a great variety of industries and applications.    They are affordable and easy to use, which makes them a great alternative for light-duty bag sealing applications.
Hand Sealing Machinery Plastic (ABS) Body PFS-Series Impulse Heat Make Polythene Plastic Bag Film Sealer can be equipped with either a 2mm,3mm,5mm or 8mm wide seal width.Simply push down on the handle, and when the indicator light goes out release the handle.   The bag is sealed perfectly every time.When the seal is done, the red light will go off and keep the handle pressed down for 2-3 seconds to get seal optimal results.  Do not use a wet cloth to clean the surface of the heat sealing strip and kindly Pls read the product description details.


Hand Sealing Machinery PFS-150 Impulse Heat Make 150mm / 15cm / 6 Inchs Wide Polythene Plastic Bag Film Sealer Feature:


Max Sealing Length:150mm / 15cm / 6 Inches
Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heat Time: 0.2 -1.5s
Can Make OEM Products

Precision electronic control circuit
Portable and compact size
Adjustable timer creates perfect seals for varying Pouches / bag thickness
Labour-saving design with long handle
Low power consumption
Polythene/Impulse Sealer is with Simple modeling, small volume, large capacity, very convenient to use.
High-temperature glue bar, durable.
Full automatic high-temperature seal.
The operation of the Polythene/Impulse Sealer is simple, the super-strong hand pressure seal is fresh, and the seal can be sealed 50 times per minute, which can extend the storage period by 5 times.
This type of sealing machine is necessary for families, shops, restaurants, hotels, hospitals, banks, and other high-end establishments.


Hand Sealing Machinery PFS-150 Impulse Heat Make 150mm / 15cm / 6 Inchs Wide Polythene Plastic Bag Film Sealer Specifications:



Model: PFS-150
Color:Gray,Black,Blue,White
Sealing Length: 150mm / 15cm / 6 Inches
Sealing Width: 2mm
Sealing Thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Heating Time:0.2-1.5S
Source: AC110V / 50Hz or AC220V/60Hz
Power: 220W
Dimensions: 295X95X180mm (L X W X H)
Weight: 1.24 Kg
Suitable for: PE/PP Bags
Plug Type: US Standard
UL Certified
Hand Sealing Machinery Plastic (ABS) Body PFS-Series Impulse Heat Make Polythene Plastic Bag Film Sealer is a must-have accessory for sealing packages. Ideal for your small business to keep things neatly packed, separate and organized.



Hand Sealing Machinery PFS-150 Impulse Heat Make 150mm / 15cm / 6 Inchs Wide Polythene Plastic Bag Film Sealer Package Includes:



1 X PFS-150 Hand Sealing Machinery
2 X 150mm Heating Wires
2 X 150mm High Temperature Clothes
1 X English User Manual
PFS-150 Hand Sealing Machinery Weight: 1.24 Kg
1 PCS/Color Box
Color Box Size:29.5X9.5X18cm
20 PCS/CTN
Carton Size:52.5X29.5X65.5cm
G.W/CTN:25.84 Kg




How To Use Hand Sealing Machinery Plastic (ABS) Body PFS-Series Impulse Heat Make Polythene Plastic Bag Film Sealer:


  1. The hand-pressed Polythene/Impulse Sealer does not use a power switch (automatic control). Plug the ac power cord into the socket and adjust the heating time according to the thickness of the material to be sealed. Put the plastic bag on the sealing surface, then press the handle, the circuit will automatically control the heating time. When the indicator light is off, the power supply is automatically disconnected. About 1-2 seconds later, release the handle and seal.
  2. The seal of each letter is damaged when it is received. That is because the heating time is too long. Please turn the knob counterclockwise to shorten the heating time.
  3. If the seal is not tight, it is because the heating time is too short. Please turn the knob clockwise to extend the heating time.
  4. If the plastic bag is stuck on the rubber press plate, it indicates that the cooling time is not enough. The cooling time after the indicator light is put out must be extended. Please release the handle a little later.
  5. After the heating time is adjusted, it shall remain unchanged in use, and no further adjustment shall be made in continuous use.
  6. The manual pressure plastic bag sealer can insert the AC power cord into the power socket at any time, without sealing and without power consumption.



HS CODE:8422303090
Hand Sealing Machinery Plastic (ABS) Body PFS-Series Impulse Heat Make Polythene Plastic Bag Film Sealer Specification:




Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer Supply Hand Sealing Machinery Plastic (ABS) Body PFS-Series Impulse Heat Make Polythene Plastic Bag Film Sealer Specification
Model. PFS-100 PFS-150 PFS -200 PFS -250 PFS-300 PFS-400
Impulse power 150W 220W 300W 350W 400W 600W
Impulse voltage AC220V/50HZ or AC110V/60HZ
Max.sealing length     4 Inches 6 Inches 8 Inches 10 Inches 12 Inches 16 Inches
Max.sealing thickness 0.3mm 0.3mm 0.3mm 0.3mm 0.3mm 0.3mm
Sealing width 2mm 2mm 2mm 2mm 2mm 3mm
Heating time 0.2-1.5S 0.2-1.5S 0.2-1.5S 0.2-1.5S 0.2-1.5S 0.2-2S
Dimensions (L x W x H) Cm 24.5X9.5X17 29.5X9.5X18 33X10X17.2 38X10.2X18.3 43X10.2X17.5 57.5X10.5X19
Weight 1.06KGS 1.24KGS 1.26KGS 1.58KGS 1.68KGS 2.82KGS
Package 1 Pcs/Color Box
QTY/CTN 20PCS 20PCS 10PCS 10PCS 10PCS 10PCS
Carton Size(cm) 49X25.5X64 52.5X29.5X65.5 51X34.5X36 53.5X39.5X36 52.5X44.5X36 59X55.5X39
G.W/CTN(Kg) 23 25.84 13.38 16.4 17.78 26.5
QTY(sets)/20'GP 7000 5500 4450 3700 3350 2200
QTY(sets)/40'GP 14500 11500 9200 7650 6900 4550
QTY(sets)/40'HQ 17000 13400 10800 8950 8100 5350
