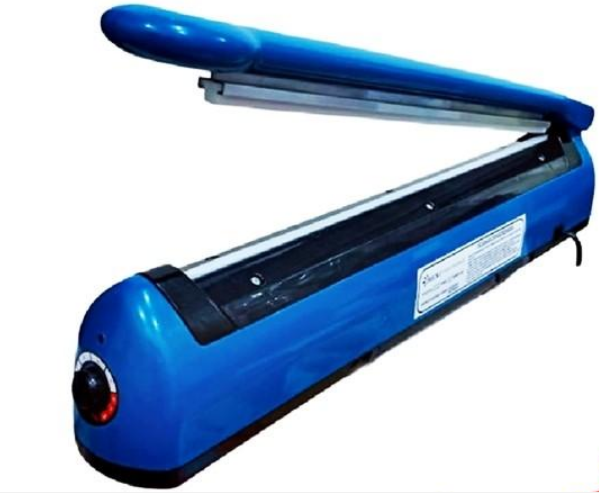

Impulse Sealer Poly Tubing Heat Packaging Machine PFS-100B
Impulse Sealer PFS-100B Hand Sealing 100mm / 4 inches / 10cm Wide Heat Plastic Sealer Bag Poly Tubing Packaging Machine Features:
Max Sealing Length: 100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.4mmX2 (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5s
Can Make OEM Products
Precision electronic control circuit
Portable and compact size
Plastic ABS Shell
Impulse sealing for power-saving

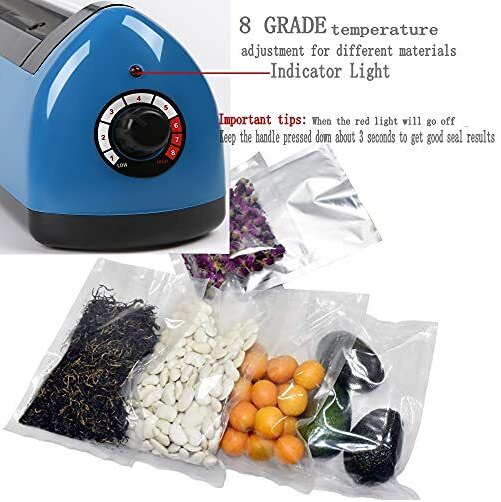

Adjustable timer creates perfect seals for varying bag thickness
Labor-saving design with long handle
Impulse Sealer PFS-100B Hand Sealing 100mm / 4 inches / 10cm Wide Heat Plastic Sealer Bag Poly Tubing Packaging Machine Specification:
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic
Plug Type: EU Plug/AU Plug
Dimensions: 245 X 95 X 153mm (L X W X H)
Impulse Heat Sealer Ideal for retail, produce, grocery stores, and industrial sealing, these poly plastic bag impulse heat sealers are professional grade and are equipped with innovative design that removes the need for operator training. Simply plug it in and it's ready to go, eliminating warm-up time. With it's durable construction, sealers are lightweight and portable..
Impulse Sealer PFS-100B Hand Sealing 100mm / 4 inches / 10cm Wide Heat Plastic Sealer Bag Poly Tubing Packaging Machine Package list:
1 X PFS-100B Impulse Sealer
2 X 100mm Long Heating Wires
2 X 100mm Long High Temperature Cloth
1 X English User Manual
PFS-100B Impulse Sealer Weight:0.94 Kg
1 X Gift Box
1 PCS/Gift Box
Color Box Size:245X95X153mm
20 PCS/CTN
Carton Size:490X255X640mm
Impulse Sealer PFS-B Series Hand Sealing Heat Plastic Sealer Bag Poly Tubing Packaging Machine Use:

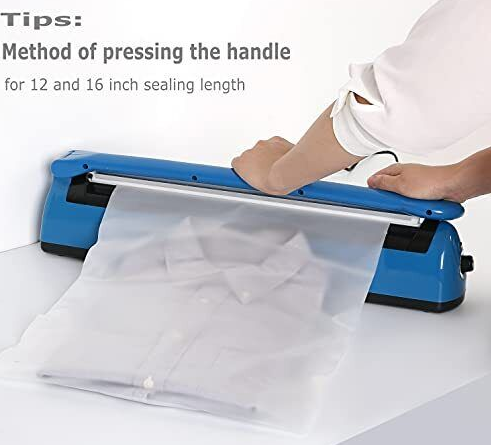

1.The machine without power switch. The AC power cord into the outlet, according to the thickness of the material to be sealed, adjust the heating time. The plastic on the sealing surface, then press the handle, the circuit is automatically controlled heating time. When the light is off, the power is automatically disconnected. After about 1-2 seconds, release the handle on a good seal.
2.The square when an access point appears damaged seal, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time.
3.If the seal is not strong, it is because the heating time is too short. Keep the knob clockwise to extend the heating time.
4.If a plastic bag stuck to the rubber plate, indicating the cooling time is not enough, we must extend the cooling time after the light goes out. Please release handle a little bit late.
5.Adjust heating time later, in use should remain unchanged, in continuous use do not have to make any adjustments.
6.The machine can always plug the AC power cord into the power outlet, do not consume power when not sealed.
HS CODE:8422303090
Impulse Sealer PFS-B Series Hand Sealing Heat Plastic Sealer Bag Poly Tubing Packaging Machine Specification:
| Model | PFS-100B | PFS-200B | PFS-300B | PFS-400B |
| Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Power | 150W | 300W | 400W | 500W |
| Sealing Width | 2mm | 2mm | 2mm | 3mm |
| Max Sealing Length | 4 Inches | 8 Inches | 12 Inches | 16 Inches |
| Max Sealing Thickness | Max 6 Mil for PE, max 4 Mil for PP | |||
| Heat Time | 0.2 -1.5s | 0.2 -1.5s | 0.2 -1.5s | 0.2 -2.0s |
| Package | 1 PCS/Gift Box | |||
| Gift Box Size(cm) | 24.5X9.5X15.3 | 34X10X17.5 | 44X10X17.5 | 57.5X11X19 |
| Weight | 0.94KGS | 1.14KGS | 1.44KGS | 2.3KGS |
| QTY/CTN | 20pcs | 10pcs | 10pcs | 10pcs |
| Carton Size(cm) | 49X25.5X64 | 51X35X37 | 57X45X37 | 59X56X39 |
| Color | Blue,Blue,White or Red | |||
