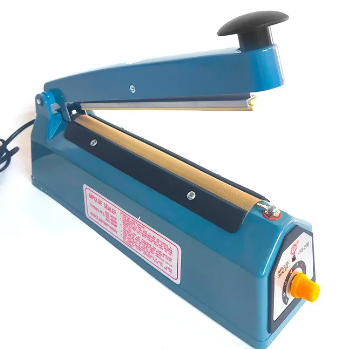

Heat Sealer Hand Plastic Bag Impulse Sealing Machine PFS-300

Heat Sealer Hand Plastic Bag Impulse Sealing Machine PFS-300

Make and Export Heat Sealer PFS-300 Hand 300mm / 12 Inches / 30cm Wide Plastic Bag Impulse Sealing Machine From Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Heat Sealer PFS Series Hand Plastic Bag Impulse Sealing Machine With w/ 2mm Seal Width seals poly bags and other thermoplastic materials quickly and efficiently without any warm-up time. This sealer can seal material up to 16" wide and 10mil total thickness. It is equipped with a plug-in electronic timer which controls the different sealing times needed for the varying thicknesses of different materials. The timer automatically beeps when the seal is done. Also available in 4", 8", 12" and 16" with a 2mm, 3mm,5mm or 8mm seal width.Heat Sealer PFS Series Hand Plastic Bag Impulse Sealing Machine are simple, compact machines and are probably the most common plastic bag sealers found today and find application in a variety of industries. They are available at attractive prices and are extremely effective for low to medium volume production. Additionally, we have found these impulse sealers to be very popular among food retailers (general stores, food marts, restaurant take-outs etc) for packing goods over the sales counter.
Impulse sealers follow a simple contact-type working mechanism wherein a nichrome heating element strip is heated electrically by means of a transformer.This heat is then imparted to the plastic bag, which along with the pressure applied by the operator's hand fuses the open end to form a strong hermetic (airtight) seal. Operators can control the heating time by adjusting a knob provided on the front face.


Heat Sealer PFS-300 Hand 300mm / 12 Inches / 30cm Wide Plastic Bag Impulse Sealing Machine Features:

  1.
Max Sealing Length: 30cm / 300mm / 12 Inches
Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heat Time: 0.2 -1.5s
Can Make OEM Products
Seals poly bags and other thermoplastic materials quickly and efficiently
Plug-in electronic timer for variable control.
No warm-up time.
Durable and economical.
Plug-in electronic timer for variable control.
Seals poly bags and other thermoplastic materials quickly and efficiently
Easy to operate, no operator training required
LED indicator to signal that sealing is complete
Heat intensity adjustment knob to accommodate bags of varied materials and thickness
Machine comes with two complementary heating element strips and Teflon cloth
Spare parts are readily available
Powder-coated metal casing provides durability and protection from wear and tear



Heat Sealer PFS-300 Hand 300mm / 12 Inches / 30cm Wide Plastic Bag Impulse Sealing Machine Specifications:


Model: PFS-300
Color:Gray,Black,Blue,White
Max Sealing Length: 30cm / 300mm / 12 Inches
Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heating time:0.2-1.5S
Power:400W
Source: AC110V60Hz or  AC220V50Hz
Dimension: 430X102X175mm (L X W X H)
Item Weight: 1.68 kg
SAA approval plug: EU plug/AU plug
CE Certified
Heat Sealer PFS Series Hand Plastic Bag Impulse Sealing Machine Is Ideal for sealing plastics bags,PE bags,mylar bags,kraft paper bags and tea bags in household,supermarkets,kitchen or stores,such as medicine shops,candy store,cafe shop,snack booth,small factories etc.



Heat Sealer PFS-300 Hand 300mm / 12 Inches / 30cm Wide Plastic Bag Impulse Sealing Machine Package Included:


1 X PFS-300 Heat Sealer
2 X 300mm Long Extra Teflon Sheet
2 X 300mm Long Extra Heater Element
1 X English User Manual
Color Box Size:430X102X175mm
PFS-300 Heat Sealer Weight: 1.68 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:525X445X360mm
G.W/CTN:17.78Kg


HS CODE:8422303090
Heat Sealer PFS Series Hand Plastic Bag Impulse Sealing Machine Specification:




Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer Make and Export Heat Sealer PFS Series Hand Plastic Bag Impulse Sealing Machine Specification
Model  No. PFS-100 PFS-150 PFS-200 PFS-250 PFS-300 PFS-400
Impulse voltage AC220V/50HZ or AC110V/60HZ
Impulse power 150W 220W 300W 350W 400W 600W
Max seal length 100mm 150mm 200mm 250mm 300mm 400mm
Seal width 2mm 2mm 2mm 2mm 2mm 3mm
Max seal thickness 0.6mm 0.6mm 0.6mm 0.8mm 0.8mm 0.8mm
Adjustable heating time 0.2-1.5 S 0.2-1.5 S 0.2-1.5 S 0.2-1.5 S 0.2-1.5 S 0.2-2 S
Dimensions (LX W X H)mm 245X95X170 295X95X180 330X100X172 380X102X183 430X102X175 575X105X190
Weight 1.06KGS 1.24KGS 1.26KGS 1.58KGS 1.68KGS 2.82KGS
Package 1 PCS/Color Box
QTY/CTN 20 PCS 20 PCS 10 PCS 10 PCS 10 PCS 10 PCS
Carton Size(mm) 490X255X640 525X295X655 510X345X360 535X395X360 525X445X360 590X555X390
G.W/CTN(Kg) 23 25.84 13.38 16.4 17.78 26.5
QTY(sets)/20'GP 7000 5500 4450 3700 3350 2200
QTY(sets)/40'GP 14500 11500 9200 7650 6900 4550
QTY(sets)/40'HQ 17000 13400 10800 8950 8100 5350
