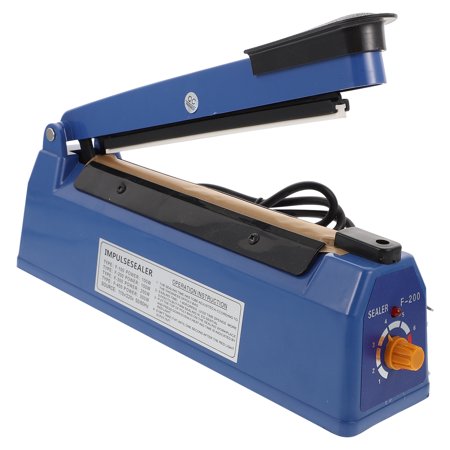

Impulse Sealing Sealer Plastic Bag Film Heat Machine PFS-100
Make and Sale Impulse Sealing Sealer PFS-100 Hand Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Machine From Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China. Impulse Sealing Sealer Plastic ABS Shell PFS Series Hand Make Plastic Bag Film Heat Machine is for PE/PP plastic bags. It is a lever heat sealer. The thermal impulse actuates by pressing the lever mechanism. The operation is easy, since it is enough to place the plastic bag in the lever mechanism. By pressing the lever, a thermal impulse will melt the plastic, sealing the bag. Ideal for sealing products, objects, etc.Adjust the temperature grade to what you need when first time use. Higher settings don't necessarily mean stronger seal. We recommend starting low and gradually increasing temperature grade for different thick bags, it's better not exceed 6 and for most packing bags, grade 2-5 suitable.When seal is finished, the red light will go off. Keep the handle pressed down for 1-2 seconds to get optimal seal result. Otherwise the sealing place will be uneven.After 30 minutes of continuous use, let the machine rest about 3 minutes.Use soft DRY cloth to clean sealing elements surface after each use to avoid any oxidation of the residue which will reduce the life of it.Heating strip and high-temperature cloth are glossy parts, need to be changed for premium sealing effect after 1000 times of discontinuous use.
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5s
Can Make OEM Products
CE certification passed.
Lever heat sealer that is activated by pressing.
It has a variable potentiometer to regulate the sealing speed depending on the thickness of the material used.
Includes resistance and replacement fabric.
Plastic ABS Shell and Metal Mechanism.
Flexible Container Sealing
Impulse Sealing Sealer Plastic ABS Shell PFS Series Hand Make Plastic Bag Film Heat Machine is widely applied to seal all kinds of plastics films, compound films, and aluminum-plastic films. This Sealer is easy to control and use, also available at KAWADER Store for a reasonable price.
Impulse Sealing Sealer PFS-100 Hand Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Impulse Sealing Sealer PFS-100 Hand Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Machine Features:
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5s
Can Make OEM Products
CE certification passed.
Lever heat sealer that is activated by pressing.
It has a variable potentiometer to regulate the sealing speed depending on the thickness of the material used.
Includes resistance and replacement fabric.
Plastic ABS Shell and Metal Mechanism.
Flexible Container Sealing
Impulse Sealing Sealer Plastic ABS Shell PFS Series Hand Make Plastic Bag Film Heat Machine is widely applied to seal all kinds of plastics films, compound films, and aluminum-plastic films. This Sealer is easy to control and use, also available at KAWADER Store for a reasonable price.
Impulse Sealing Sealer PFS-100 Hand Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)

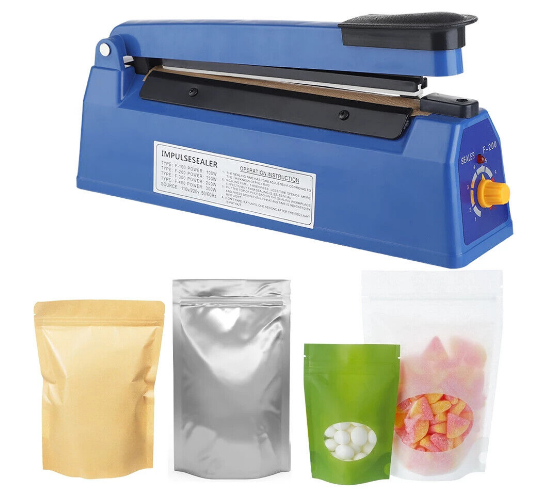

Impulse Sealing Sealer Plastic ABS Shell PFS Series Hand Make Plastic Bag Film Heat Machine is needed to securely seal flat heat seal bags, gusset bags, stand up pouches, and pop-up tubes. They provide a tamper resistant closure, ideal for the retail environment.
Impulse Sealing Sealer PFS-100 Hand Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Machine Package list:
1 X PFS-100 Impulse Sealing Sealer
2 X 4 Inches Long Sealing Wires
2 X 4 Inches Long High Temperature Clothes
1 X English User Manual
PFS-100 Impulse Sealing Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245X95X170mm
20 PCS/CTN
Carton Size:490X255X640mm
G.W/CTN:23Kg
HS CODE:8422303090
Impulse Sealing Sealer Plastic ABS Shell PFS Series Hand Make Plastic Bag Film Heat Machine Specification:
| Model | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max. sealing length | 4 inches | 6 inches | 8 inches | 10 inches | 12 inches | 16 inches |
| Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Max. sealing thickness | 0.6mm | 0.6mm | 0.6mm | 0.8mm | 0.8mm | 0.8mm |
| Adjustable heating time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
