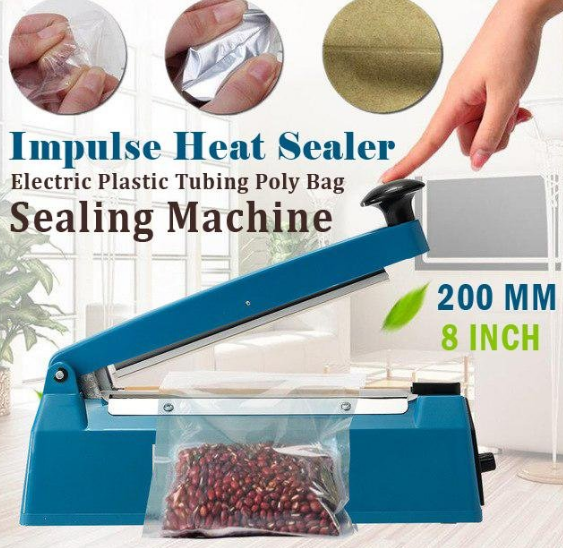

Manual Sealing Machine Tabletop Impulse Heat Sealer PFS-200
Make and Export Manual Sealing Machine PFS-200 Tabletop 8 inches / 200 mm / 20 cm Wide Impulse Heat Sealer By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China. Manual Sealing Machine Plastic ABS Body PFS Series Tabletop Impulse Heat Sealer is a handy portable machine suitable to seal every kind of plastic films and widely used in the fields such as food and sweet stuff, drugs, native and special goods, electrical appliance parts etc.It is easy to use and economical sealing equipment for manufacturers, stores and service industry. To operate, plug the cable into the power source, adjust the timer, put the plastic bag onto the sealing platform then push down and hold the handle.The electronic circuit controls the heat automatically. Once the light indicator turns off, the power is cut off automatically. 1-2 seconds later, release the handle gently and the perfect seal is completed. If the break or damage appears on the seal, it is because of too much heal and this can be managed by reducing (turning timer anticlockwise) and if plastic bag sticks to the handle rubber then you lifted the handle too soon (less cooling time). After balancing required temperature settings, please keep it unchanged in every time use for that particular material.
Max Sealing Length:8 inches / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.4 mm (Max 6 Mil for PE, max 4 Mil for PP)
Can OEM Products
Manual Sealing Machine PFS-200 Tabletop 8 inches / 200 mm / 20 cm Wide Impulse Heat Sealer Description:
Model: PFS-200
Color: Light Blue,Green,White or Red
Max Sealing Length:8 inches / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.4 mm (Max 6 Mil for PE, max 4 Mil for PP)
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 300 W
Dimensions: 33 X 10 X 17.2 cm (L X W X H)
Weight: 1.26 Kg
CE and CCC Certified
Material: Plastic ABS Shell + Aluminum Frame
Manual Sealing Machine Plastic ABS Body PFS Series Tabletop Impulse Heat Sealer is safe and easy to use. The heating element in the impulse sealer is not constantly heated. The light will turn on when the sealer is activated and will turn off once sealing is completed.No Warmup Time Needed --- No warmup or cooldown time is needed, safe, and simple to use. Impulse sealers are very convenient and safe because they can be immediately used, and the chance of being burned is minimal.Adjustable Timer Setting - Adjustable heat settings for the different materials. For most applications, using the impulse heat sealer at a heat setting of 3 is sufficient.
Manual Sealing Machine PFS-200 Tabletop 8 inches / 200 mm / 20 cm Wide Impulse Heat Sealer Packing List:
Manual Sealing Machine PFS-200 Tabletop 8 inches / 200 mm / 20 cm Wide Impulse Heat Sealer Features:
Max Sealing Length:8 inches / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.4 mm (Max 6 Mil for PE, max 4 Mil for PP)
Can OEM Products
It's great for sealing numerous food products for storage or transportation.
A great way to ensure freshness of product is to properly wrap and seal it. If you sell baked items, homemade candy, or sandwiches, a sealing machine, such as this, is a great tool to have on hand.
Additionally, if you cater or transport food items, such as crudités, this sealer will ensure that your presentation stays intact and your food arrives fresh.
This sealing machine is constructed of a cast iron body with an adjustable temperature dial for different bag materials and thickness.
Works best for PE, PP, or PVC bags.
Impulse sealing for Power-saving.
Precision Electronic control circuit.
It's great for sealing numerous food products for storage or transportation.
A great way to ensure freshness of product is to properly wrap and seal it. If you sell baked items, homemade candy, or sandwiches, a sealing machine, such as this, is a great tool to have on hand.
Additionally, if you cater or transport food items, such as crudités, this sealer will ensure that your presentation stays intact and your food arrives fresh.
This sealing machine is constructed of a cast iron body with an adjustable temperature dial for different bag materials and thickness.
Works best for PE, PP, or PVC bags.
Impulse sealing for Power-saving.
Precision Electronic control circuit.
Manual Sealing Machine PFS-200 Tabletop 8 inches / 200 mm / 20 cm Wide Impulse Heat Sealer Description:
Model: PFS-200
Color: Light Blue,Green,White or Red
Max Sealing Length:8 inches / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.4 mm (Max 6 Mil for PE, max 4 Mil for PP)
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 300 W
Dimensions: 33 X 10 X 17.2 cm (L X W X H)
Weight: 1.26 Kg
CE and CCC Certified
Material: Plastic ABS Shell + Aluminum Frame
Manual Sealing Machine Plastic ABS Body PFS Series Tabletop Impulse Heat Sealer is safe and easy to use. The heating element in the impulse sealer is not constantly heated. The light will turn on when the sealer is activated and will turn off once sealing is completed.No Warmup Time Needed --- No warmup or cooldown time is needed, safe, and simple to use. Impulse sealers are very convenient and safe because they can be immediately used, and the chance of being burned is minimal.Adjustable Timer Setting - Adjustable heat settings for the different materials. For most applications, using the impulse heat sealer at a heat setting of 3 is sufficient.
Manual Sealing Machine PFS-200 Tabletop 8 inches / 200 mm / 20 cm Wide Impulse Heat Sealer Packing List:
1 X PFS-200 Manual Sealing Machine
2 X Extra Teflon Sheets
2 X Extra Heater Elements
1 X English User Manual
Color Box Size:33 X 10 X 17.2 cm
PFS-200 Manual Sealing Machine Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51 X 34.5 X36 cm
G.W/CTN:13.38 Kg
2 X Extra Teflon Sheets
2 X Extra Heater Elements
1 X English User Manual
Color Box Size:33 X 10 X 17.2 cm
PFS-200 Manual Sealing Machine Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51 X 34.5 X36 cm
G.W/CTN:13.38 Kg
HS CODE:8422303090
Manual Sealing Machine Plastic ABS Body PFS Series Tabletop Impulse Heat Sealer Specification:
| Model No. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length | 100mm/4 inches/10cm | 150mm/15cm/6 inches | 200mm/8 inches/20cm | 250mm/10 inches/25cm | 300mm/12 inches/30cm | 400mm/16 inches/40cm |
| Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Max sealing thickness | 0.6mm | 0.6mm | 0.6mm | 0.8mm | 0.8mm | 0.8mm |
| Sealing time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Welding time | Infinitely Adjustable | |||||
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
