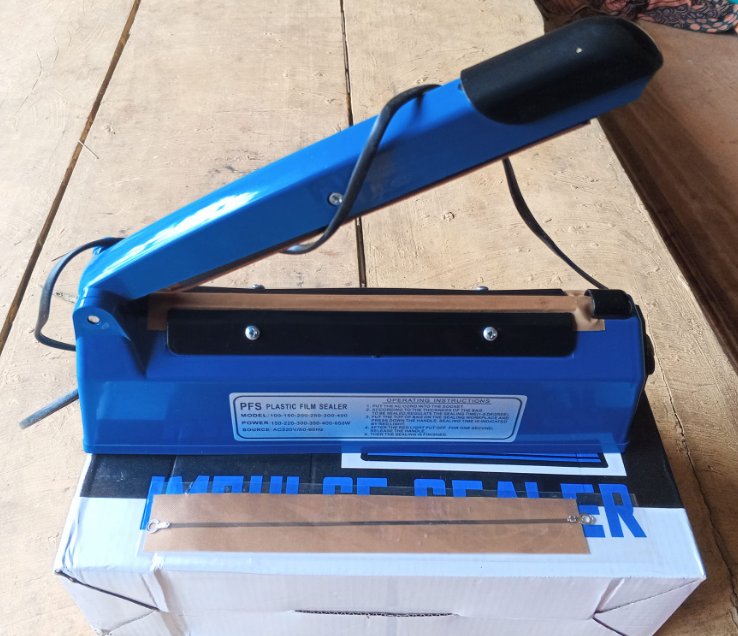

Manual Poly Tubing Sealing Machine Impulse Sealer PFS-250

Manual Poly Tubing Sealing Machine Impulse Sealer PFS-250

Manual Poly Tubing Sealing Machine PFS-250 Hand Make 250mm / 10 Inches / 25cm Wide Plastic Bag Impulse Heat Sealer By Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Manual Poly Tubing Sealing Machine Plastic ( ABS) Body PFS-Series Hand Make Plastic Bag Impulse Heat Sealer is suitable for PE and PP bags to package various kinds of candy foodstuff merchandise medicine local specialty electric elements etc.  Features: Portable and compact size 20" long sealing element Antirust aluminum case Auto LED shut-off indicator light Adjustable timer creates perfect seals for varying bag thickness Labor-saving design with long handle Ready to use instantly no warm up needed Electronic circuit controls the heat time automatically Low power consumption Built-in fuse for safe using Labor-saving design with long handle Ideal for sealing plastics bags polythene bubble wrap etc.  Two extra sealing elements two teflon sheets two fuses as gifts.



Manual Poly Tubing Sealing Machine PFS-250 Hand Make 250mm / 10 Inches / 25cm Wide Plastic Bag Impulse Heat Sealer Features:


Max.Sealing Length: 250mm / 10 Inches / 25cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max.thickness for seal: 0.8mm (Max 6 Mil for PE, max 4 Mil for PP)
Can Make OEM Products

Easy to handle and use.
Top-grade Plastic ABS and aluminum material with delicate workmanship, durable to use
Uneasy to deform or break
Used for sealing package so as to keep food from deterioration
Enter your model number
above to make sure this fits.
Portable and compact size
Auto LAdjustable timer creates perfect seals for varying bag thicknessED shut-off indicator light
Precision electronic control circuit
Impulse sealing for power-saving
Adjustable timer creates perfect seals for varying bag thickness
Labor-saving design with long handle
Low power consumption.



Manual Poly Tubing Sealing Machine PFS-250 Hand Make 250mm / 10 Inches / 25cm Wide Plastic Bag Impulse Heat Sealer Specifications:


Model:PFS-250
Color:Light Blue,Green,White or Red
Max Sealing Length: 250mm / 10 Inches / 25cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max Thickness For Seal: 0.8mm (Max 6 Mil for PE,Max 4 Mil for PP)
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 350 W
Dimensions: 38 X 10.2 X 18.3Cm (L X W X H)
Weight: 1.58 Kg
Comes With 2 Replacement Kits.
SAA approval plug: US plug/EU plug/UK plug/AU plug
CE Certified
Material: ABS Plastic Shell
Upgrade Pure copper transformer make sure this tabletop heat implse sealer working life is double longer than normal sealing machines.High quality electric heating wire and high temperature resistant cloth enable to heat your poly bags seals better.



  •
Manual Poly Tubing Sealing Machine PFS-250 Hand Make 250mm / 10 Inches / 25cm Wide Plastic Bag Impulse Heat Sealer Package Includes:


1 X PFS-250 Poly Tubing Sealing Machine
2 X 10 Inches Extra Sealing Elements
2 X 10 Inches Extra Teflon Sheets
1 X English Instructions
Color Box Size:38 X 10.2 X 18.3cm (L X W X H)
PFS-250 Poly Tubing Sealing Machine Weight:1.58 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:535X395X360mm
G.W/CTN:16.4 Kg



Manual Poly Tubing Sealing Machine Plastic ( ABS) Body PFS-Series Hand Make Plastic Bag Impulse Heat Sealer Use:


1. The machine without power switch.  The AC power cord into the outlet, according to the thickness of the material to be sealed, adjust the heating time.The plastic on the sealing surface, then press the handle, the circuit is automatically controlled heating time.When the light is off, the power is automatically disconnected.  After about 1-2 seconds, release the handle on a good seal.
2. The square when an access point appears damaged seal, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time.
3. If the seal is not strong, it is because the heating time is too short.  Keep the knob clockwise to extend the heating time.
4. If a plastic bag stuck to the rubber plate, indicating the cooling time is not enough, we must extend the cooling time after the light goes out.  Please release handle a little bit late.
5. Adjust heating time later, in use should remain unchanged, in continuous use do not have to make any adjustments.
6. The machine can always plug the AC power cord into the power outlet, do not consume power when not sealed.


HS CODE:8422303090
Manual Poly Tubing Sealing Machine Plastic ( ABS) Body PFS-Series Hand Make Plastic Bag Impulse Heat Sealer Specification:




Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer Make and Supply Manual Poly Tubing Sealing Machine Plastic ( ABS) Body PFS-Series Hand Make Plastic Bag Impulse Heat Sealer Specification
Model. PFS-100 PFS-150 PFS -200 PFS -250 PFS-300 PFS-400
Impulse power 150W 220W 300W 350W 400W 600W
Impulse voltage AC220V/50HZ or AC110V/60HZ
Max.sealing length     4 Inches 6 Inches 8 Inches 10 Inches 12 Inches 16 Inches
Max.sealing thickness 0.3mm 0.3mm 0.3mm 0.3mm 0.3mm 0.3mm
Sealing width 2mm 2mm 2mm 2mm 2mm 3mm
Heating time 0.2-1.5S 0.2-1.5S 0.2-1.5S 0.2-1.5S 0.2-1.5S 0.2-2S
Welding time Infinitely Adjustable
Dimensions (L x W x H) Cm 24.5X9.5X17 29.5X9.5X18 33X10X17.2 38X10.2X18.3 43X10.2X17.5 57.5X10.5X19
Weight 1.06KGS 1.24KGS 1.26KGS 1.58KGS 1.68KGS 2.82KGS
Package 1 Pcs/Color Box
QTY/CTN 20PCS 20PCS 10PCS 10PCS 10PCS 10PCS
Carton Size(cm) 49X25.5X64 52.5X29.5X65.5 51X34.5X36 53.5X39.5X36 52.5X44.5X36 59X55.5X39
G.W/CTN(Kg) 23 25.84 13.38 16.4 17.78 26.5
QTY(sets)/20'GP 7000 5500 4450 3700 3350 2200
QTY(sets)/40'GP 14500 11500 9200 7650 6900 4550
QTY(sets)/40'HQ 17000 13400 10800 8950 8100 5350
