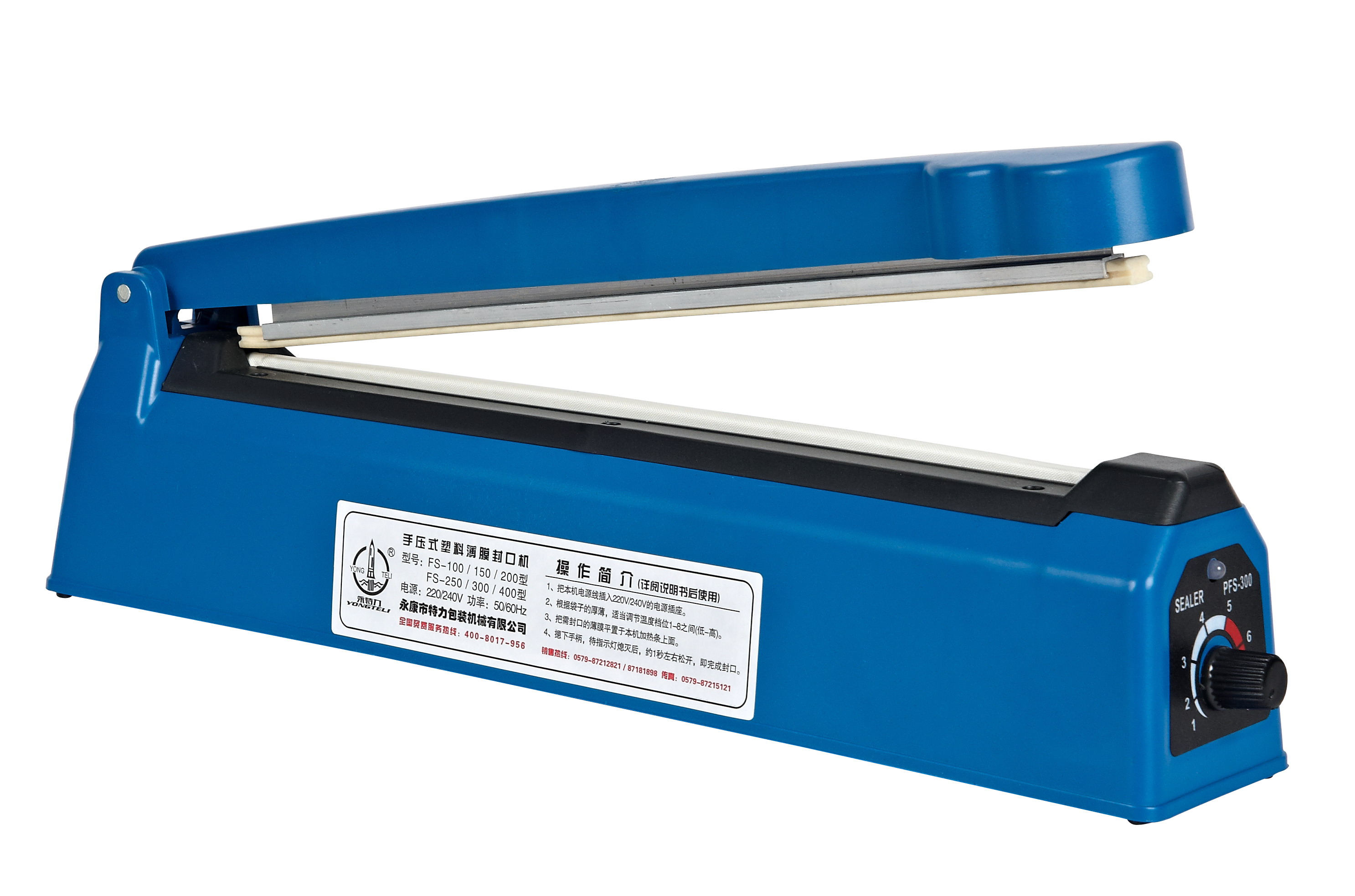

Impulse Sealer Manual Heat Poly Bag Sealing Machine PFS-200
Produce and Supply Hand Sealing 8"/200 mm/8 inch/20 cm Length With Sealing 2.0 mm Width Electric Flat Heat Wire Impulse Plastic Film Heat Sealer PFS-200 Manual Heat Poly Bag Sealing Machine From Zhejiang Tianyu industry Co. Ltd. Supplier Factory Of China.Hand Impulse Plastic Film Heat Sealer PFS Series Manual Heat Poly Bag Sealing Machine has the ability to seal with ease. Comes complete with dual timers - one for sealing and one for congealing. A builtin magnet holds the sealing arm down during the heating cycle and then releases it automatically once the cooling cycle is completed. The sealing widths available for this unit are 2-millimeter,3-millimeter,5-millimeter,or 8-millimeter widths.No pre-heating is required for these impulse units.
Hand Impulse Plastic Film Heat Sealer PFS Series Manual Heat Poly Bag Sealing Machine is Too specifically designed and recommended for the health care industry. It creates air and watertight seals on sterilization (paper-plastic) bags and tubing materials. The compact unit has a built-in warning beeper to notify the user when each seal is complete. The sealer produces an embossed, honeycomb texture with a width.This medical impulse sealer can be used for many other applications that require wider seals on plastic materials.
Hand Sealing 8"/200 mm/8 inch/20 cm Length With Sealing 2.0 mm Width Electric Flat Heat Wire Impulse Plastic Film Heat Sealer PFS-200 Manual Heat Poly Bag Sealing Machine Features:
2. Light weight, easy to use it
3. Strong power but don't waste electricity
4. Heat time is short
5. It is made of plastic material
6. More accurate with precision electronic control
7. Avoid the loss of product
8. No warmup time needed.

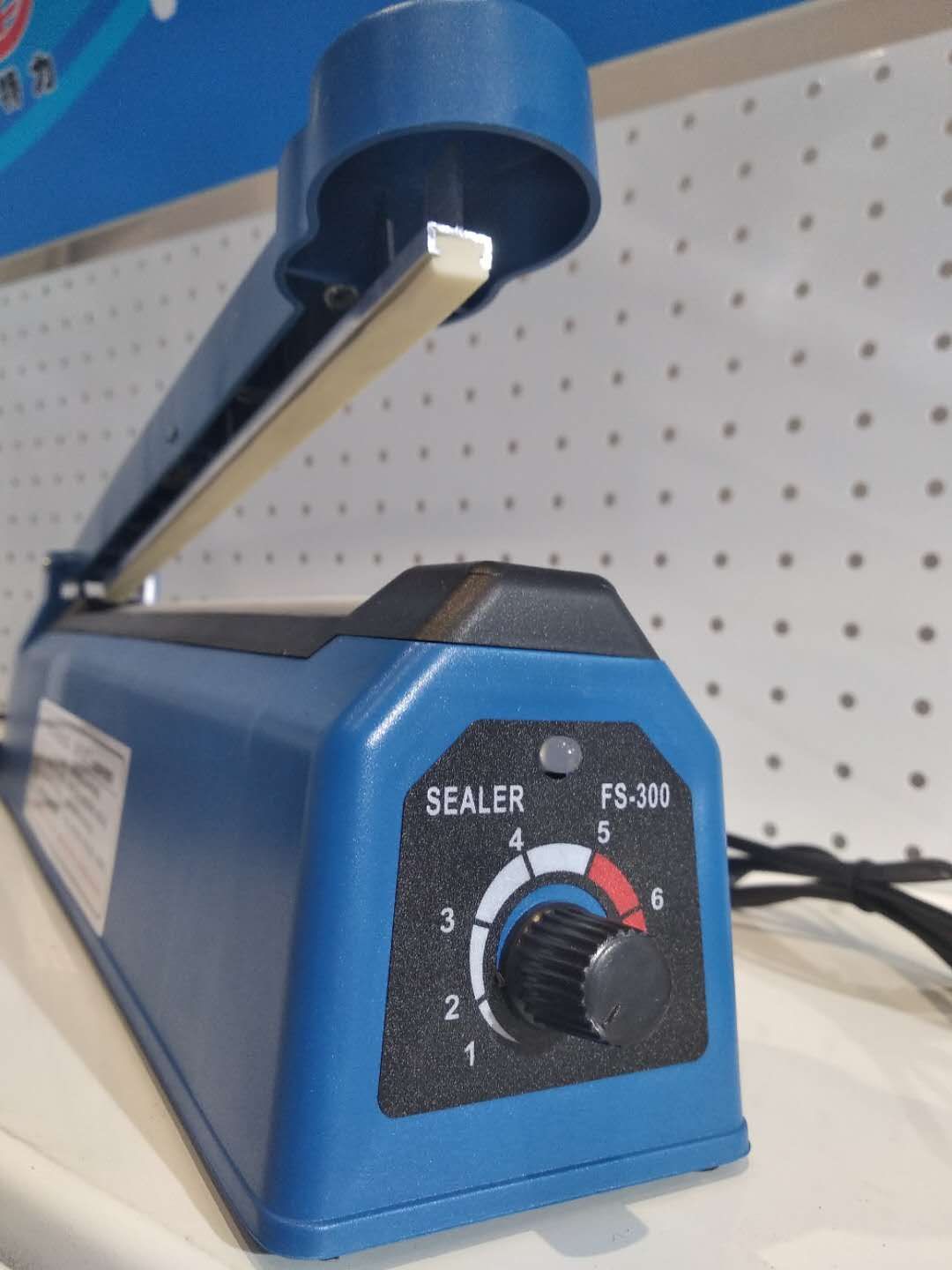

9. Heat impulse sealer has 8 levels settings of adjustable timer to create perfect seals for varying bag thicknesses.
10.The operator places the bag over the sealing element and lowers the upper jaw thus activating the unit. The seal process quickly ends once the preset seal time is reached.
11.Metal material and double paint, stability and good rust effect. Equipment with replacement kits.
12.Make your own custom size bags, ideal for industrial items, chocolates, gifts and much more.
13.Sealing Length: 7.87" / 20cm
14.Source: 110V / 220V,50Hz/60Hz
15.Power: 300W
16.Suitable for: PE/PP Bags
17.Impluse Sealing for: Power-saving
18.Circuit: Precision Electronic Control
19.Max Sealing Thickness: 0.2mm
20.Heat Time: 0.2 -1.5s
21.Color: Blue
22. Plug Type: US Standard
23.Material: Plastic
Hand Sealing 8"/200 mm/8 inch/20 cm Length With Sealing 2.0 mm Width Electric Flat Heat Wire Impulse Plastic Film Heat Sealer PFS-200 Manual Heat Poly Bag Sealing Machine Description:
- Fast Heating Power-Saving Impulse Sealer Machine.
- Keep sealing edges clean - prolong the life of the heating element.
- Clean with a dry cloth or alcohol.
- Damage to the sealing rubber will lessen the effectiveness of the sealer.
- For PE/PP bags used to package food products
- Impulse sealing for power saving
- Precision electric control circuit
- Adjustable Temperature
- Secure Tight Seal
- Sealing Length: 8"/200 mm/8 inch/20 cm Length
- Source: 110V / 60Hz,220V/50Hz
- Power: 300W
- Max Length for seal: 200mm
- Width for seal: 2mm
- Max thickness for seal: 0.2mm (Max 6 Mil for PE, max 4 Mil for PP)
- Heat Time: 0.2 -1.5s
- Single phase variable temperature control
- CE and CCC Certified
- Suitable for: PE/PP Bags
- Impluse Sealing for: Power-saving
- Circuit: Precision Electronic Control
- Color: Light Blue,Green,White or Red
- Dimensions: 33X10X17.2 cm (L x W x H)
- Weight: 1260g
- Size: 8"/200 mm/8 inch/20 cm
- Plug Type: US Standard
- Material: Plastic ABS
1x 8"/200 mm/8 inch/20 cm Long Extra Spare Teflon sheet
1x 8"/200 mm/8 inch/20 cm Long Extra Spare Sealing 2.0 mm Width Electric Flat Heat Wire
1x English User Manual
1 PCS/Color Box
Color box Size:33X10X17.2 cm
PFS-200 Hand Impulse Plastic Film Heat Sealer Manual Heat Poly Bag Sealing Machine Weight: 1.26Kg
10 PCS/CTN
Carton Size:51X34.5X36 cm
G.W/CTN:13.38Kg
Hand Impulse Plastic Film Heat Sealer PFS Series Manual Heat Poly Bag Sealing Machine Specification:
| Model No. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ 110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length | 4"/100 mm/4 inch/10 cm | 150 mm/15 cm/6"/6 inch | 8"/200 mm/8 inch/20 cm | 10"/250 mm/10 inch/25 cm | 12"/300 mm/12 inch/30 cm | 16"/400 mm/16 inch/40 cm |
| Max sealing width | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 3 mm |
| Max sealing thickness | 0.6 mm | 0.6 mm | 0.6 mm | 0.8 mm | 0.8 mm | 0.8 mm |
| Adjustable heating time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Dimensions (L x W x H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
