Impulse Sealer Manual Plastic Bag Sealing Machine PFS-200

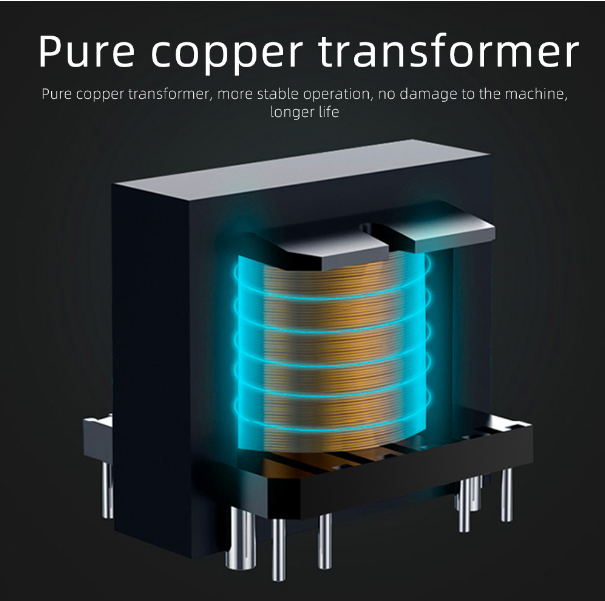

Manufacture and Produce Hand Sealing 8"/200 mm/8 inch/20 cm Length With Sealing 2.0 mm Width Electric Flat Heat Wire Impulse Heat Sealer PFS-200 Manual Plastic Bag Sealing Machine From Zhejiang Tianyu industry Co. Ltd. Supplier Factory Manufacturer.Hand Sealing 2.0 mm Width Impulse Heat Sealer PFS Series Manual Plastic Bag Sealing Machine can be used for sealing plastic bags, polypropylene (poly bags), bubble bags, PVC, polyester, poly/cello films, humidity-proof cellophane film, aluminum foil bag, PO-film-coated EPE foam bag, kraft paper bag and teabag.just connect the power cord of the sealing machine to the socket, and the heating time can be adjusted according to the thickness of the material sealing. Put the plastic bag on the sealing machine, and then press the handle, the LED indicator will light up, and the machine will control the heating time by itself. When the LED indicator is off, the power is automatically disconnected. Release the handle after 1-2 seconds to complete the seal.Hand Sealing 2.0 mm Width Impulse Heat Sealer PFS Series Manual Plastic Bag Sealing Machine use pure copper wire to make the transformer, not cheaper copper-clad aluminum wire or pure aluminum wire. Pure copper transformer has the advantages that being more durable, reliable, and efficient.
Moistureproof, preservation and , can seal all kinds of plastic bags.
Compact size and light weight, easy to carry and use.
Heating up quickly, almost no preheating time.
Food and non-food applications, for both commercial and home use.
Seal a wide range of bags and films with a maximum seal width of 20cm.
8-grades adjustable thermal temperature control.

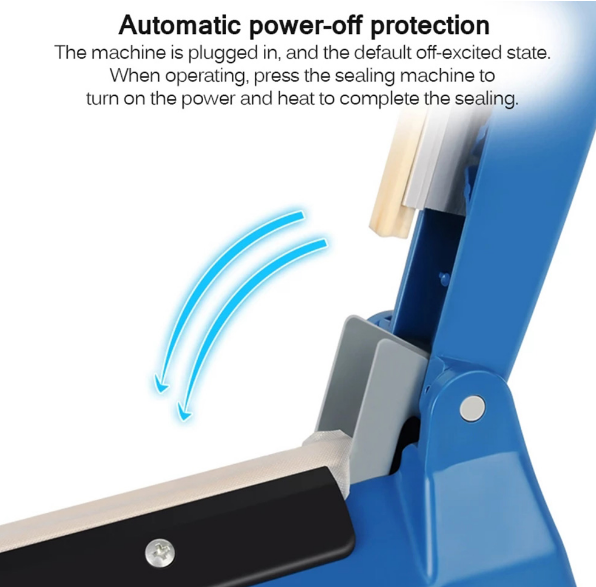

Automatic power-off , the machine is plugged into the power supply, the default power-off state, when the operation is used, the sealing machine is powered on and heated to complete the sealing.
Power: 300W
Max Length for seal: 200 mm
Width for seal: 2 mm
Max thickness for seal: 0.2mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5s
Single phase variable temperature control
CE and CCC Certified
Hand Sealing 8"/200 mm/8 inch/20 cm Length With Sealing 2.0 mm Width Electric Flat Heat Wire Impulse Heat Sealer PFS-200 Manual Plastic Bag Sealing Machine Description:
- Fast Heating Power-Saving Impulse Sealer Machine.
- Keep sealing edges clean - prolong the life of the heating element.
- Clean with a dry cloth or alcohol.
- Damage to the sealing rubber will lessen the effectiveness of the sealer.
- For PE/PP bags used to package food products
- Impulse sealing for power saving
- Precision electric control circuit
- Adjustable Temperature
- Secure Tight Seal
- Sealing Length: 8"/200 mm/8 inch/20 cm Length
- Source: 110V / 60Hz,220V/50Hz
- Power: 300W
- Max Length for seal: 200 mm
- Width for seal: 2 mm
- Max thickness for seal: 0.2mm (Max 6 Mil for PE, max 4 Mil for PP)
- Heat Time: 0.2 -1.5s
- Single phase variable temperature control
- CE and CCC Certified
- Suitable for: PE/PP Bags
- Impluse Sealing for: Power-saving
- Circuit: Precision Electronic Control
- Color: Light Blue,Green,White or Red
- Dimensions: 33X10X17.2 cm (L x W x H)
- Weight: 1260g
- Size: 8"/200 mm/8 inch/20 cm
- Plug Type: US Standard
- Material: Plastic ABS
1 x PFS-200 Hand Sealing 2.0 mm Width Impulse Heat Sealer Manual Plastic Bag Sealing Machine
1x 8"/200 mm/8 inch/20 cm Long Extra Spare Teflon sheet
1x 8"/200 mm/8 inch/20 cm Long Extra Spare Sealing 2.0 mm Width Electric Flat Heat Wire
1x English User Manual
1 PCS/Color Box
Color box Size:33X10X17.2 cm
PFS-200 Hand Sealing 2.0 mm Width Impulse Heat Sealer Manual Plastic Bag Sealing Machine Weight: 1.26Kg
10 PCS/CTN
Carton Size:51X34.5X36 cm
G.W/CTN:13.38Kg
HS CODE:8422303090
Hand Sealing 2.0 mm Width Impulse Heat Sealer PFS Series Manual Plastic Bag Sealing Machine Specifications:
| Model No. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
| Max sealing width | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 3.0mm |
| Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
