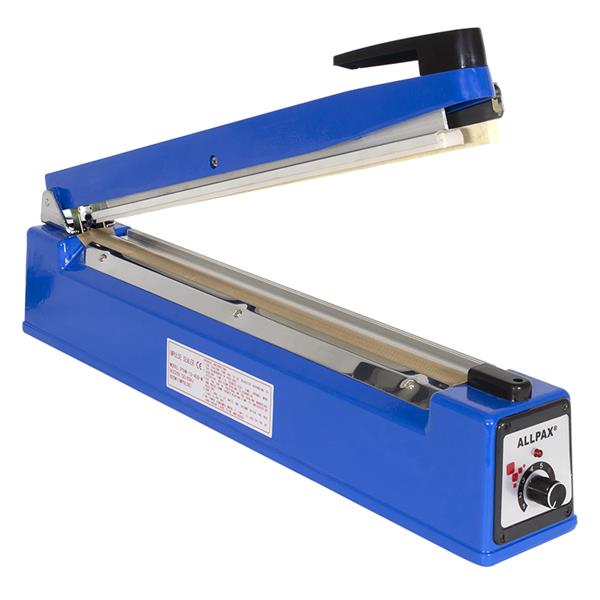

Impulse Sealer Manual Heat Poly Bag Sealing Machine PFS-250
Make and Supply Hand operated Impulse Sealer Manual Heat Poly Bag Sealing Machine PFS-250 In Factory From China.Hand operated Impulse Sealer Plastic ABS Body PFS-Series Manual Heat Poly Bag Sealing Machine seal poly bags and other thermoplastic materials quickly and efficiently without any warm-up time.Depending on the model of the machine, material up to 16 Inches width and 10mil total thickness can be sealed.The sealers are equipped with a plug-in electronic timer that controls the different sealing times needed for the varying thicknesses of different materials.The timer automatically beeps when the seal is done.The manufacturer’s kit includes two elements and two PTFE covers.
Hand operated Impulse Sealer Plastic ABS Body PFS-Series Manual Heat Poly Bag Sealing Machine is a machine used to seal products, packaging, and other thermoplastic materials using heat. This can be with uniform thermoplastic monolayers or with materials having several layers, at least one being thermoplastic.Heat sealing can join two similar materials together or can join dissimilar materials, one of which has a thermoplastic layer.
Hand operated Impulse Sealer Plastic ABS Body PFS-Series Manual Heat Poly Bag Sealing Machine is the process of sealing one thermoplastic to another similar thermoplastic using heat and pressure. The direct contact method of heat sealing utilizes a constantly heated die or sealing bar to apply heat to a specific contact area or path to seal or weld the thermoplastics together. Heat sealing is used for many applications, including heat seal connectors, thermally activated adhesives, film media, plastic ports or foil sealing. Impulse heat sealers- have heating elements (one or two) of Nichrome placed between a resilient synthetic rubber and a release surface of film or fabric. The heating elements are not continuously heated; heat is generated only when current flows. When the materials are placed in the heat sealer, they are held in place by pressure. An electric current heats the heating element for a specified time to create the required temperature. the Jaws hold the material in place after the heat is stopped, sometimes with cooling water: this allows the material to fuse before stress can be applied.
Color: Light Blue,Green,White or Red
Max.Sealing Length: 250mm / 10 Inches / 25cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max Thickness For Seal: 0.6mm
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 350 W
Dimensions: 38 X 10.2 X 18.3cm (L X W X H)
Weight: 1.58 Kg
Comes With 2 Replacement Kits.
SAA approval plug: US plug/EU plug/UK plug/AU plug
1 X PFS-250 Hand operated Impulse Sealer
2 X Spare Heat Elements
2 X Spare PTFE Covers
1 X English Instructions
Color Box Size:38 X 10.2 X 18.3cm (L X W X H)
PFS-250 Hand operated Impulse Sealer Weight:1.58 Kg
Hand operated Impulse Sealer Manual Heat Poly Bag Sealing Machine Features:
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.6mm
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.6mm
Manual heat sealer with optimum sealing effects.
Professional grade impulse heat sealer.
Impulse sealing for power saving.
Auto control of heating with a LED indicator.
Easy to use and long lasting.
Plastic ABS shell with Aluminum construction
Comes with one spare heat wire and Teflon sheet.
The signal light indicates the heat cycle is complete and the seal is done.
8 Level temperature adjustment for different material
CE,RoHS and CCC Certified.
Customize OEM and ODM available.
Hand operated Impulse Sealer Manual Heat Poly Bag Sealing Machine Specifications:
Model: PFS-250Color: Light Blue,Green,White or Red
Max.Sealing Length: 250mm / 10 Inches / 25cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max Thickness For Seal: 0.6mm
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 350 W
Dimensions: 38 X 10.2 X 18.3cm (L X W X H)
Weight: 1.58 Kg
Comes With 2 Replacement Kits.
SAA approval plug: US plug/EU plug/UK plug/AU plug
Hand operated Impulse Sealer Plastic ABS Body PFS-Series Manual Heat Poly Bag Sealing Machine are widely applied to seal all kinds of plastics films, compound films, bubble wraps, shrink wraps, thick heavy duty bags and aluminium-plastic film. FIS series hand impulse sealer is made from engineering plastic and sheet metal.
Built-in fuse for safe using, Easy to use and to clean, ideal for household, retail, produce, grocery Stores, and industrial sealing with a certain quality superiority. It should not be used for cutting anything, it is just good to seal PP and PE bags. Energy Conservation Manual Impulse Sealer，Non-Toxic, Odorless, Durable, Reinforced and Compression. Can seal more than 10000 bags. Extra Durable Impulse Sealer Machine: When seal is done, the red light will go off, keep the handle pressed down for 0.2-1.5 seconds to get seals optimal results. Do not use wet cloth to clean the surface of heat sealing strip and kindly Please read the product description details before using.
Hand operated Impulse Sealer Manual Heat Poly Bag Sealing Machine Package Includes:
1 X PFS-250 Hand operated Impulse Sealer
2 X Spare Heat Elements
2 X Spare PTFE Covers
1 X English Instructions
Color Box Size:38 X 10.2 X 18.3cm (L X W X H)
PFS-250 Hand operated Impulse Sealer Weight:1.58 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:535 X 395 X 360mm
G.W/CTN:16.4 Kg
10 PCS/CTN
Carton Size:535 X 395 X 360mm
G.W/CTN:16.4 Kg
HS CODE:8422303090
Hand operated Impulse Sealer Plastic ABS Body PFS-Series Manual Heat Poly Bag Sealing Machine Specification:
| Model. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length |
100mm (4 inch) |
150mm (6 inch) |
200mm (8 inch) |
250mm (10 inch) |
300mm (12 inch) |
400mm (16 inch) |
| Max sealing width | 2mm | 3mm | ||||
| Max sealing thickness | 0.6mm | 0.8mm | ||||
| Adjustable heating time | 0.2-1.5 s | 0.2-2 s | ||||
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 Pcs | 20 Pcs | 10 Pcs | 10 Pcs | 10 Pcs | 10 Pcs |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
