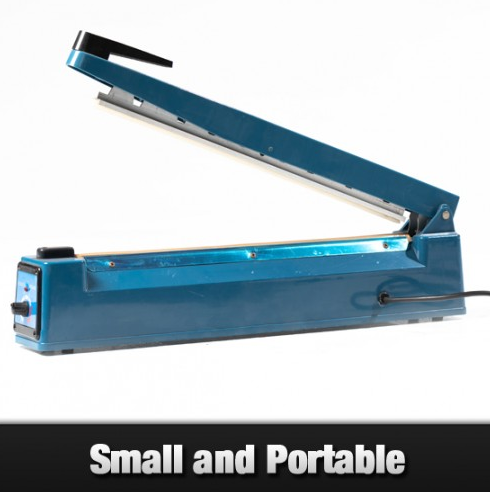

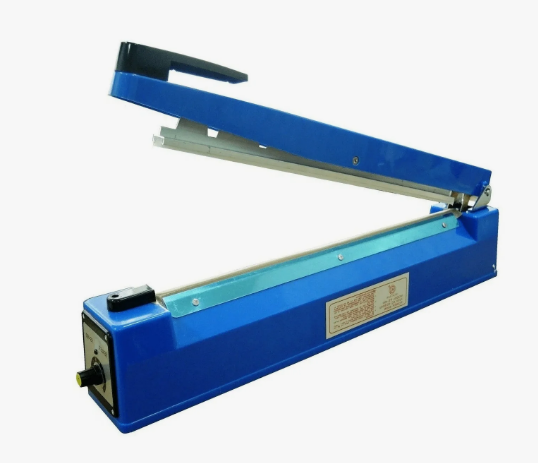

Hand Impulse Poly Plastic Film Heat Sealer Machine PFS-200
Made and Export Hand Impulse Poly Plastic Film Heat Sealer PFS-200 Manual 8 Inches / 200 mm / 20 cm Wide Sealing Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Hand Impulse Poly Plastic Film Heat Sealer Plastic ABS Shell PFS-Series Manual Sealing Machine is an ideal tools to seal PE and PP bags, Mylar, polypropylene, static shielding, nylon, polyethylene, polyurethane bags, foam.It can be used for packaging various kinds of subjects, e.g: candy, groceries, stationery, drugs, general items, etc.
Hand Impulse Poly Plastic Film Heat Sealer Plastic ABS Shell PFS-Series Manual Sealing Machine can be used with both flat as an impulse sealer for welding bags as well as with a round heating elements to work as hot wire sealer by welding and cutting film at welding point especially in tubular foil application for continuous sealing, perfectly suitable in warehouses, shops, manufacturing, and catering sector, easy to us, can seal up to 0.6mm polypropylene film and up to 0.8mm polyethylene film via weld time control knob, includes replacement head element, teflon Fabric PTFE, and fuse.
Hand Impulse Poly Plastic Film Heat Sealer PFS-200 Manual 8 Inches / 200 mm / 20 cm Wide Sealing Machine Features:
Max Sealing Length:8 Inches / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.8mm
Can OEM Products
Hand Impulse Poly Plastic Film Heat Sealer PFS-200 Manual 8 Inches / 200 mm / 20 cm Wide Sealing Machine Description:
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.8mm
Can OEM Products
Hand Impulse Poly Plastic Film Heat Sealer Plastic ABS Shell PFS-Series Manual Sealing Machine are probably the most ubiquitous packaging machines, and are used to seal bags for a great variety of industries and applications.
They are affordable and easy to use, which makes them a great alternative for light-duty bag sealing applications.
The sealing process is simple-The operator places the bag over the sealing element and lowers the upper jaw thus activating the unit.
The seal process quickly ends once the preset seal time is reached.
The operator retrieves the sealed bag and repeats the process. Bags are sealed repeatedly and uniformly.
The operator retrieves the sealed bag and repeats the process. Bags are sealed repeatedly and uniformly.
Versatile Material Compatibility-Ideal for KEL-F, POLYFLEX, P.V.A., and more.
Energy-Efficient Design-Uses power only when sealing.
Strong Seals: Provides water and air-tight seals, essential for autoclaving and sterilization procedures.
Ready to Use-Comes fully assembled. Plugs into any standard plug.
Extra Element Kit-Includes one additional element kit for extended use.
Hand Impulse Poly Plastic Film Heat Sealer PFS-200 Manual 8 Inches / 200 mm / 20 cm Wide Sealing Machine Description:
-
Model:PFS-200
Color: Light Blue,Green,White or Red
Max Sealing Length:8 Inches / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.8mm
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 300 W
Dimensions: 33 X 10 X 17.2 cm (L X W X H)
Weight: 1.26 Kg - CE and CCC Certified
- Material: Plastic ABS Shell + Aluminum Frame
- Hand Impulse Poly Plastic Film Heat Sealer Plastic ABS Shell PFS-Series Manual Sealing Machine provide the best packaging solution in the most affordable, reliable, portable, and efficient way possible! Select from a variety of sealing lengths and seal widths based on your individual packaging needs.Made of Plastic ABS Shell + Aluminum Frame that meets FDA production standards and a compact lightweight design make these impulse sealers easy to use and very effective. They include a visual heating display, variable temperatures and instant warm up.
1 X PFS-200 Hand Impulse Heat Sealer
2 X Extra Teflon Fabric PTFE
2 X Extra Heating Elements
1 X English User Manual
Color Box Size: 33 X 10 X 17.2 cm
PFS-200 Hand Impulse Heat Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51 X 34.5 X 36 cm
G.W/CTN:13.38 Kg
2 X Extra Teflon Fabric PTFE
2 X Extra Heating Elements
1 X English User Manual
Color Box Size: 33 X 10 X 17.2 cm
PFS-200 Hand Impulse Heat Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51 X 34.5 X 36 cm
G.W/CTN:13.38 Kg
HS CODE:8422303090
Hand Impulse Poly Plastic Film Heat Sealer Plastic ABS Shell PFS-Series Manual Sealing Machine Specification:
| Model No. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length |
100mm 4 inches |
150mm 6 inches |
200mm 8 inches |
250mm 10 inches |
300mm 12 inches |
400mm 16 inches |
| Sealing width | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 3 mm |
| Max sealing thickness | 0.6 mm | 0.6 mm | 0.6 mm | 0.8 mm | 0.8 mm | 0.8 mm |
| Sealing time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Timer Setting | 8 Grade | |||||
| Welding time | Infinitely Adjustable | |||||
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
