Impulse Plastic Sealers Food Bag Sealing Machines PFS-300
Make and Supply 12 Inches Electronic Impulse Plastic Sealers PFS-300 Hand Make 300mm / 12 Inches / 30cm Wide Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines By Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Electronic Impulse Plastic Sealers Plastic (ABS) Body PFS-Series Hand Make Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines are Easy To Operate With The Heating Time Adjustable And Suitable For Manually Sealing Filled Pouches Of Tea, Snacks, Etc. Hand Operated Sealing Machines Are Basic, Sealing Alternative For Small Production Runs Along With The Added Advantage Of Portability. Instant (Impulse) Sealing With Adjustable Electronic Timer For Greater Control. Audio And Visual Indication Of Sealing Operation. Ideal For Packing Solids, Granules And Powders.
Electronic Impulse Plastic Sealers Plastic (ABS) Body PFS-Series Hand Make Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines are a handy portable machine suitable to seal every kind of plastic films and widely used in the fields such as food and sweet stuff, drugs, native and special goods, electrical appliance parts etc. It is easy to use and economical sealing equipment for manufacturers, stores and service industry. To operate, plug the cable into the power source, adjust the timer, put the plastic bag onto the sealing platform then push down and hold the handle. The electronic circuit controls the heat automatically. Once the light indicator turns off, the power is cut off automatically. 1-2 seconds later, release the handle gently and the perfect seal is completed. If the break or damage appears on the seal, it is because of too much heal and this can be managed by reducing (turning timer anticlockwise) and if plastic bag sticks to the handle rubber then you lifted the handle too soon (less cooling time). After balancing required temperature settings, please keep it unchanged in every time use for that particular material.
Sealing Width 2 mm
Sealing Thickness 0.01-0.8mm
Heating time 0.2-1.5S
Can Make OEM Products
Perfect for household, warehouse, supermarket to pack candy, stationery, drugs etc.
High grade material and fine workmanship.

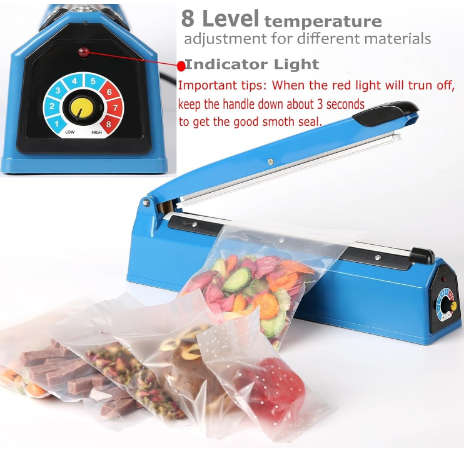

8 Files to adjust, prolonged use without distortion,
High temperature dispose
A practical and durable tools
Help protect foods from getting stale or rotten and extend shelf life with the impulse bag sealer!
Instantly seals bags with no warmup time needed
Seals polypropylene and polyethylene bags up to 0.8mm thick
Approximate 1- 1.5 second seal time
Lightweight, portable design
Easy to use and clean
ON/Timer light indicators
Labor-Saving Design With Long Handle
Low Power Consumption
12 Inches Electronic Impulse Plastic Sealers PFS-300 Hand Make 300mm / 12 Inches / 30cm Wide Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines Description:

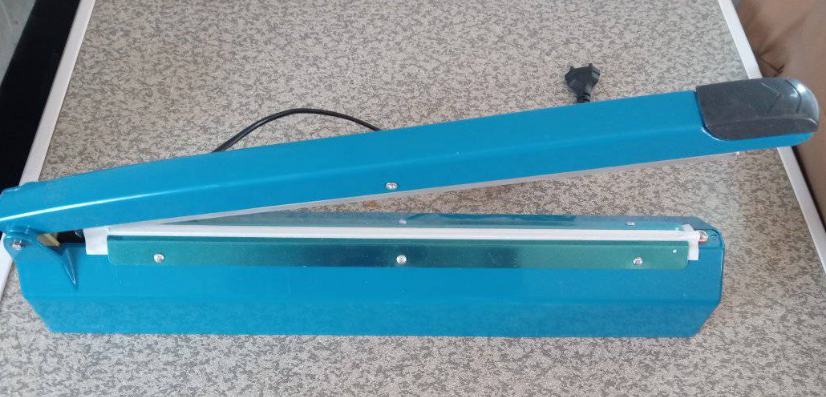

Model: PFS-300
Color: Light Blue,Green,White or Red Shell
Power:400W
Source: 110V or 220V
Power: 400W
Dimension: 430X102X175mm (L x W x H)
Item Weight: 1.68 kg
Sealing Length: 300mm
Max Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heating time:0.2-1.5S
SAA approval plug: EU plug/AU plug
CE certified
Electronic Impulse Plastic Sealers Plastic (ABS) Body PFS-Series Hand Make Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines are a powered tool used to seal different types of plastic packaging most often poly bags containing groups of parts or components.
12 Inches Electronic Impulse Plastic Sealers PFS-300 Hand Make 300mm / 12 Inches / 30cm Wide Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines Package Included:

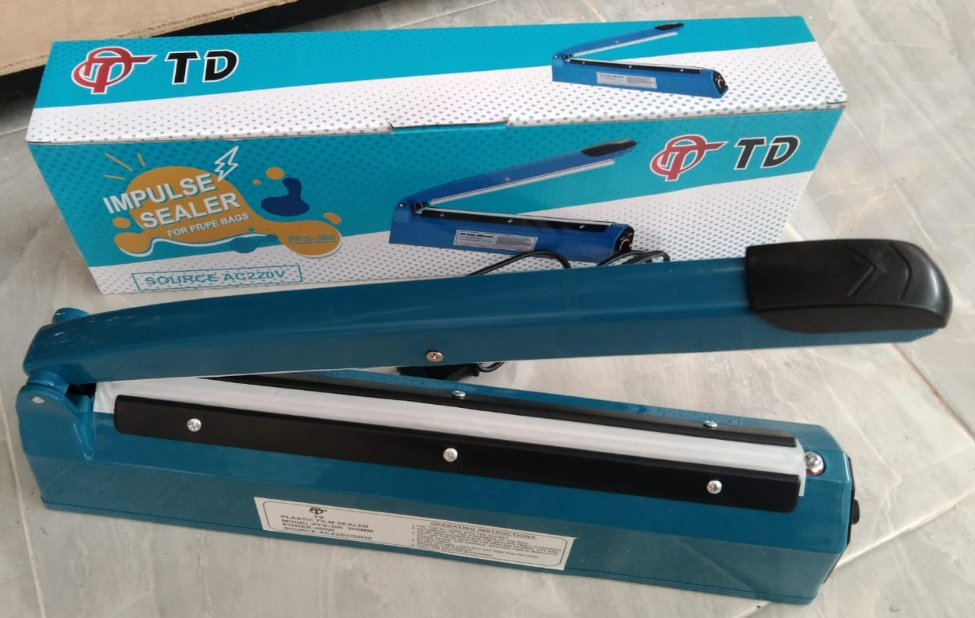

1 X PFS-300 Impulse Plastic Sealer
2 X Extra Teflon Sheets
2 X Extra Heater Elements
1 X English User Manual
Color Box Size:430X102X175mm
PFS-300 Impulse Plastic Sealer Weight:1.68 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:525X445X360 mm
G.W/CTN:17.78Kg
How To Operate Electronic Impulse Plastic Sealers Plastic (ABS) Body PFS-Serie Hand Make Food Plastic PP PE PVC Polythene Bag Heat Sealing Machine :
Plug in the sealer.
Adjust the timer knob, appropriately for the material you are sealing.
Place material to seal on the heating element.
Close sealing arm / edge, using the operation handle.
Hold arm in place until sealing light extinguishes.
Open arm.
Seal Complete.
HS CODE:8422303090
Electronic Impulse Plastic Sealers Plastic (ABS) Body PFS-Series Hand Make Food Plastic PP PE PVC Polythene Bag Heat Sealing Machines are Specification:
Model. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
Max.sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
Max.sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
Package | 1 Pcs/Color Box | |||||
QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
