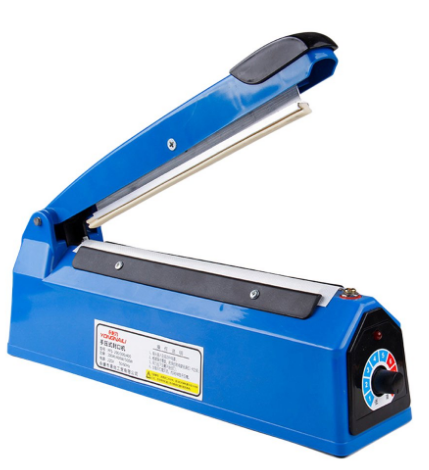

Impulse Manual Sealer 40cm Long Heat Sealing Machine PFS-400
Supply and Sale Impulse Manual Sealing 400 mm / 16" / 16 Inches / 40 cm Long and 3 mm Width Plastic Bag Heat Sealer PFS-400 Handheld Heat Sealing Machine From Zhejiang Tianyu industry Co. Ltd. Supplier Factory Manufacturer.Impulse Manual Plastic Bag Heat Sealer PFS Series Handheld Heat Sealing Machine is inexpensive and portable machines used to seal Plastic bags, polypropylene (poly bags), bubble bags, PVC, polyester, poly/cello films, humidity-proof cellophane film, aluminum foil bag, PO-film-coated EPE foam bag, kraft paper bag and teabag.They are used to seal products such as medical pouches, food and beverage products, gift items, and office supplies.
Sealing Length 16"/400 mm/16 inches/40 cm
Sealing Width 3 mm
Moistureproof, preservation and antibacterial, can seals all kinds of plastic bags.
Compact size and light weight, easy to carry and use.
Heating up quickly, almost no preheating time.
Food and non-food applications, for both commercial and home use.
seals a wide range of bags and films with a maximum seals width of 40cm.

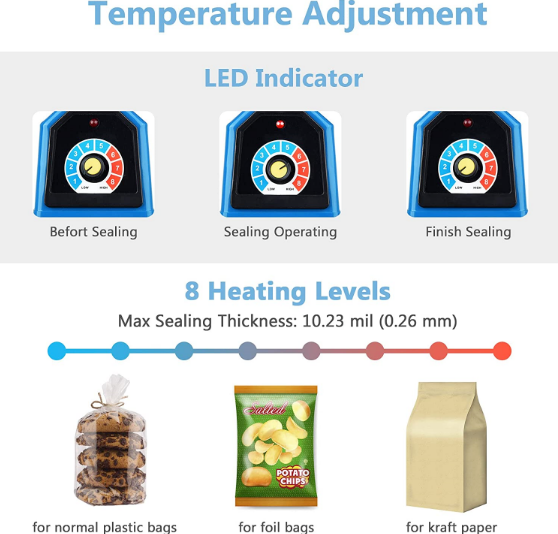

8-grades adjustable thermal temperature control.
Automatic power-off protection, the machine is plugged into the power supply, the default power-off state, when the operation is used, the sealing machine is powered on and heated to complete the sealing.
Auto LED shut-off indicator light
Easy to operate: place PE or PP bags in between seal bars, press down, then release
SAA approval plug: US plug/EU plug/UK plug
Comes with one spare heat wire and Teflon sheet
Can seal different types of bags including bubble wraps, cellophane, shrink wraps, and thick heavy duty bags etc.
Impulse Manual Sealing 400 mm / 16" / 16 Inches / 40 cm Long and 3 mm Width Plastic Bag Heat Sealer PFS-400 Handheld Heat Sealing Machine Specification:
Model: PFS-400
Colol :Light Blue,Green,White or Red
Maximum sealing length: 16"/400 mm/16 inches/40 cm
Maximum bag sealing thickness: 0.4 X 2 mm
Sealing Width 3 mm
Heating time: 0.2-2.0 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: 220V50HZ or 110V/60HZ
Pulse power: 600 W
SAA approval plug: US plug/EU plug/UK plug
Welding time: infinitely adjustable
Size: 57.5X10.5X19 CM
Item Weight: 2.82 Kg
Impulse Manual Sealing 400 mm / 16" / 16 Inches / 40 cm Long and 3 mm Width Plastic Bag Heat Sealer PFS-400 Handheld Heat Sealing Machine Package List:
1 X PFS-400 Impulse Manual Plastic Bag Heat Sealer
2 X 16 inches / 40 cm Long Extra Spare Heat-resistant Strip
2 X 16 inches / 40 cm Long Extra Spare Heating Wire
1 X English User Manual
PFS-400 Impulse Manual Plastic Bag Heat Sealer Weight: 2.82 Kg
Color box Size:575X105X190 mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590X555X390 mm
G.W/CTN:26.5Kg
Impulse Manual Plastic Bag Heat Sealer PFS Series Handheld Heat Sealing Machine Users Manual:
Impulse Manual Sealing 400 mm / 16" / 16 Inches / 40 cm Long and 3 mm Width Plastic Bag Heat Sealer PFS-400 Handheld Heat Sealing Machine Features:
Sealing Width 3 mm
Moistureproof, preservation and antibacterial, can seals all kinds of plastic bags.
Compact size and light weight, easy to carry and use.
Heating up quickly, almost no preheating time.
Food and non-food applications, for both commercial and home use.
seals a wide range of bags and films with a maximum seals width of 40cm.
8-grades adjustable thermal temperature control.
Automatic power-off protection, the machine is plugged into the power supply, the default power-off state, when the operation is used, the sealing machine is powered on and heated to complete the sealing.
Auto LED shut-off indicator light
Easy to operate: place PE or PP bags in between seal bars, press down, then release
SAA approval plug: US plug/EU plug/UK plug
Comes with one spare heat wire and Teflon sheet
Can seal different types of bags including bubble wraps, cellophane, shrink wraps, and thick heavy duty bags etc.
Impulse Manual Sealing 400 mm / 16" / 16 Inches / 40 cm Long and 3 mm Width Plastic Bag Heat Sealer PFS-400 Handheld Heat Sealing Machine Specification:
Model: PFS-400
Colol :Light Blue,Green,White or Red
Maximum sealing length: 16"/400 mm/16 inches/40 cm
Maximum bag sealing thickness: 0.4 X 2 mm
Sealing Width 3 mm
Heating time: 0.2-2.0 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: 220V50HZ or 110V/60HZ
Pulse power: 600 W
SAA approval plug: US plug/EU plug/UK plug
Welding time: infinitely adjustable
Size: 57.5X10.5X19 CM
Item Weight: 2.82 Kg
Impulse Manual Sealing 400 mm / 16" / 16 Inches / 40 cm Long and 3 mm Width Plastic Bag Heat Sealer PFS-400 Handheld Heat Sealing Machine Package List:
1 X PFS-400 Impulse Manual Plastic Bag Heat Sealer
2 X 16 inches / 40 cm Long Extra Spare Heat-resistant Strip
2 X 16 inches / 40 cm Long Extra Spare Heating Wire
1 X English User Manual
PFS-400 Impulse Manual Plastic Bag Heat Sealer Weight: 2.82 Kg
Color box Size:575X105X190 mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590X555X390 mm
G.W/CTN:26.5Kg
Impulse Manual Plastic Bag Heat Sealer PFS Series Handheld Heat Sealing Machine Users Manual:
1.Simply connect the power cord to the outlet and adjust the heating time based on the seals thickness of the material.
2.Place the plastic bag on top, then press the handle, the LED indicator lights up and the machine will control the heating time itself.
When the LED is off, the power is automatically disconnected. After 1-2 seconds, the handle is removed and the seals is completed.
The Led indicator lights up only when the machine is sealed, and it does not illuminate if you just connect it to the outlet.
3.If damage occurs during sealing, it is because the heating time is too long, then shorten the heating time by turning the timer knob counterclockwise.
4.If an unsafe seals occurs, it is because the heating time is too short, then extend the heating time by turning the timer knob clockwise
5.If the plastic bag is seals to the machine, it is because the cooling time is not long enough. Please extend the cooling time after the LED is turned off and keep it for a long time to release the handle.
6.If the heating time is adjusted, do not make any changes during sealing or continuous sealing.
7.You can connect the power cord to the outlet at any time, as it will not consume any power if it is not sealed.
HS CODE:8422303090
Impulse Manual Plastic Bag Heat Sealer PFS Series Handheld Heat Sealing Machine Specification:
Impulse Manual Plastic Bag Heat Sealer PFS Series Handheld Heat Sealing Machine Specification:
| Model No. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or 110V/60HZ | |||||
| Max sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
| Max sealing width | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2mm | 3mm |
| Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
