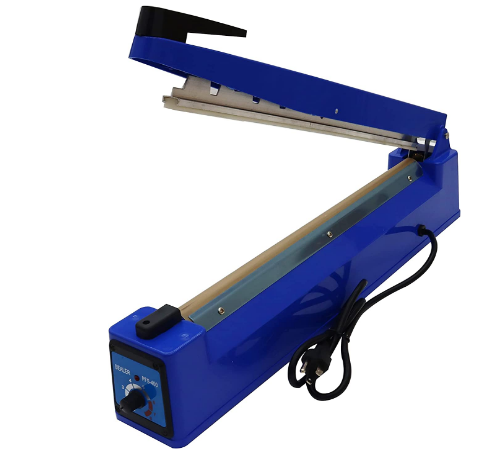

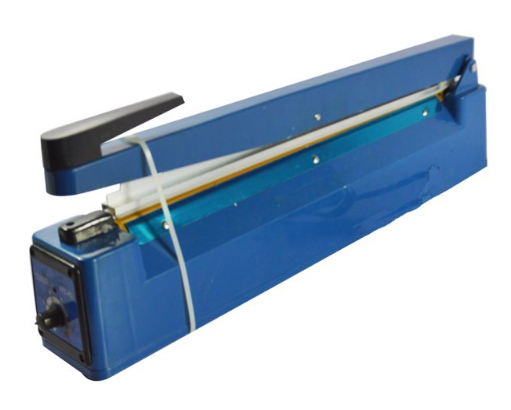

Impulse Sealer Plastic Bag 20cm Long Sealing Machine PFS-200
Supply and Sale Manual Impulse Sealing 200 mm / 8" / 8 inches / 20 cm Long and Sealing 2 mm Width Heat Sealer PFS-200 Handheld Operated Plastic Bag Sealing Machine From Zhejiang Tianyu industry Co. Ltd. Supplier Factory Manufacturer.Manual Impulse Heat Sealer PFS Series Handheld Operated Plastic Bag Sealing Machine is great to sealed all kinds of packaging needs. Its compact design is convenient and practical. With its adjustable timer, it will reach different plastic needs. The machine is able to produce adequate heat to effectively melt the plastic material of the bag for optimum sealing. Ideal for sealing plastics bags, polythene, bubble wrap etc.
Max sealing thickness: 0.3 mm X 2
Manual Impulse Sealing 200 mm / 8" / 8 inches / 20 cm Long and Sealing 2 mm Width Heat Sealer PFS-200 Handheld Operated Plastic Bag Sealing Machine Feature:
Sealing Length: 8"/200 mm/8 inches /20 cmMax sealing thickness: 0.3 mm X 2
High-quality stainless steel.
High-efficiency performance.
Simple operation, long service life, high efficiency, power save.
Adjustable timer creates perfect seals for varying bag thickness.
Auto shut-off indicator light
Low power consumption
Labor-saving design with long handle
Ideal for sealing plastics bags, polythene, bubble wrap etc.
Lightweight dand easy to operate
High-efficiency performance.
Simple operation, long service life, high efficiency, power save.
Adjustable timer creates perfect seals for varying bag thickness.
Auto shut-off indicator light
Low power consumption
Labor-saving design with long handle
Ideal for sealing plastics bags, polythene, bubble wrap etc.
Lightweight dand easy to operate
Heat weld that closes each bag tight
Single phase w/ variable temperature control
Easy to use and long-lasting
Widely used in factories, shops, and service industries
Manual Impulse Sealing 200 mm / 8" / 8 inches / 20 cm Long and Sealing 2 mm Width Heat Sealer PFS-200 Handheld Operated Plastic Bag Sealing Machine Description:
Model: PFS-200
Color: Light Blue,Green,White or Red
Sealing Length: 200 mm / 8" / 8 inches / 20 cm Length
Width for seal: 2 mm
Max thickness for seal: 0.2 mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5 s
Source: 110V / 60Hz or 220V/50Hz
Power: 300 W
Suitable for: PE/PP Bags
Impluse Sealing for: Power-saving
Circuit: Precision Electronic Control
Dimensions: 33X10X17.2 cm (L X W X H)
Weight: 1260g
Plug Type: US Standard
Material: Plastic ABS
2 X 8 Inches/ 20 cm Long Extra Spare Teflon sheet
2 X 8 Inches/20 cm Long Extra Spare Heater Element
1 X English User Manual
Color box Size:33X10X17.2 cm
PFS-200 Manual Impulse Heat Sealer Weight:1.26Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51X34.5X36 cm
G.W/CTN:13.38Kg
Manual Impulse Heat Sealer PFS Series Handheld Operated Plastic Bag Sealing Machine Operation Instructions:
1.There is no power switch on this machine. Put the plug into the socket. Get the things ready.
2.Cut off the right size of PVC heat shrink tubing films.
3.Adjust the heat time according to the thickness of the sealing materials.
4.Then put on the bag, press the handle to seal one side of the edges of PVC heat shrink film firstly. When the indicator lights, then it heat automatically. When the indicator light goes out, the power will be off automatically. After 1-2seconds, release the handle, it will be done.
5.Then seal the other side of the PVC heat shrink films.After all is OK, then it will be done.
6.If you are using PVC heat shrink bags, you can also use electric iron to heating the bags to make the items more fashionable.
Single phase w/ variable temperature control
Easy to use and long-lasting
Widely used in factories, shops, and service industries
Manual Impulse Sealing 200 mm / 8" / 8 inches / 20 cm Long and Sealing 2 mm Width Heat Sealer PFS-200 Handheld Operated Plastic Bag Sealing Machine Description:
Model: PFS-200
Color: Light Blue,Green,White or Red
Sealing Length: 200 mm / 8" / 8 inches / 20 cm Length
Width for seal: 2 mm
Max thickness for seal: 0.2 mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5 s
Source: 110V / 60Hz or 220V/50Hz
Power: 300 W
Suitable for: PE/PP Bags
Impluse Sealing for: Power-saving
Circuit: Precision Electronic Control
Dimensions: 33X10X17.2 cm (L X W X H)
Weight: 1260g
Plug Type: US Standard
Material: Plastic ABS
Manual Impulse Sealing 200 mm / 8" / 8 inches / 20 cm Long and Sealing 2 mm Width Heat Sealer PFS-200 Handheld Operated Plastic Bag Sealing Machine Packing List:
2 X 8 Inches/ 20 cm Long Extra Spare Teflon sheet
2 X 8 Inches/20 cm Long Extra Spare Heater Element
1 X English User Manual
Color box Size:33X10X17.2 cm
PFS-200 Manual Impulse Heat Sealer Weight:1.26Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51X34.5X36 cm
G.W/CTN:13.38Kg
Manual Impulse Heat Sealer PFS Series Handheld Operated Plastic Bag Sealing Machine Operation Instructions:
1.There is no power switch on this machine. Put the plug into the socket. Get the things ready.
2.Cut off the right size of PVC heat shrink tubing films.
3.Adjust the heat time according to the thickness of the sealing materials.
4.Then put on the bag, press the handle to seal one side of the edges of PVC heat shrink film firstly. When the indicator lights, then it heat automatically. When the indicator light goes out, the power will be off automatically. After 1-2seconds, release the handle, it will be done.
5.Then seal the other side of the PVC heat shrink films.After all is OK, then it will be done.
6.If you are using PVC heat shrink bags, you can also use electric iron to heating the bags to make the items more fashionable.
HS CODE:8422303090
Manual Impulse Heat Sealer PFS Series Handheld Operated Plastic Bag Sealing Machine Specifications:
| Model No. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse Power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse Voltage | AC220V/50HZ or 110V/60HZ | |||||
| Max Sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
| Max sealing width | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 3.0mm |
| Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
