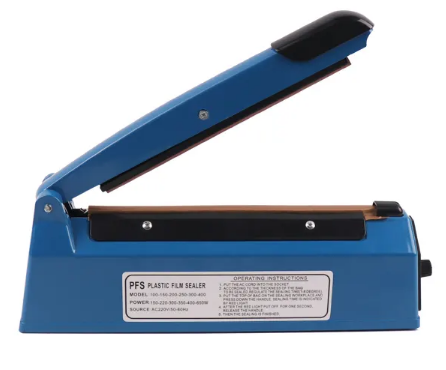

Heat Sealing Hand Impulse Sealer PP PVC Bag Machine PFS-300
Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heating time: 0.2-1.5 s
Can OEM Products

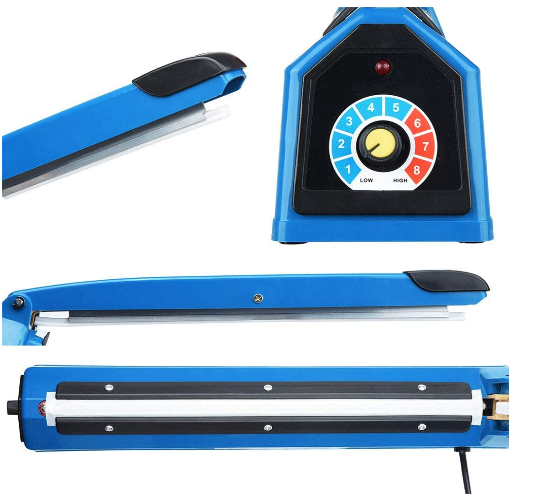

8 stalls temperature adjustment,
Suitable for PE/PP Bags
Impluse Sealing for Power-saving
lightweight design
Built-in fuse for safe using,
Easy to use,
The body material is ABS, It's made from engineering plastic;
It's also available that can print label while sealing.
Many color impulse heat sealers available.

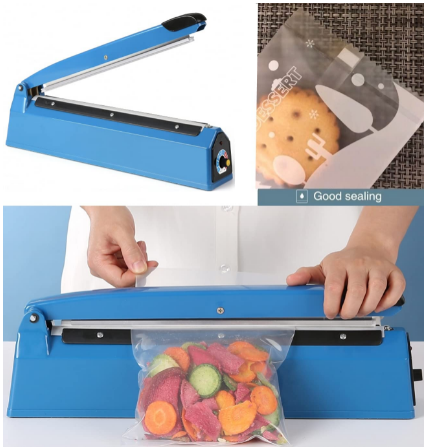

ideal for household, retail, produce, grocery stores, and industrial sealing
Upgrade pure copper transformer make sure this tabletop heat implse sealer working life longer
-
Model: PFS-300
Color:Gray,Black,Blue,White
Max Sealing Length: 30cm / 300mm / 12 InchesSealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heating time:0.2-1.5S
Power:400W
Source: AC110V60Hz or AC220V50Hz
Dimension: 430X102X175mm (L X W X H)
Item Weight: 1.68 kg - SAA approval plug: EU plug/AU plug
- CE Certified
- Heat Sealing Hand Impulse Sealer ABS Shell PFS-Series Manual Make Plastic Poly PP PVC PE Foil Bag Heat Machine is light, making it easy to transport from one workspace to another. With its power-saving design, you can save money on energy costs as well. Invest in this reliable industrial tool today to ensure that your products stay safe!
Heat Sealing Hand Impulse Sealer PFS-300 Manual Make 300mm / 12 Inches / 30cm Wide Plastic Poly PP PVC PE Foil Bag Heat Machine Package Included:
2 X 300mm Long Extra Heating Clothes
2 X 300mm Long Extra Heating Wires
1 X English User Manual
Color Box Size:430X102X175mm
PFS-300 Heat Sealing Hand Impulse Sealer Weight: 1.68 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:525X445X360mm
G.W/CTN:17.78Kg
How to Use Heat Sealing Hand Impulse Sealer ABS Shell PFS-Series Manual Make Plastic Poly PP PVC PE Foil Bag Heat Machine：
1. No power switch required (auto-control), link the AC power cord with socket, adjust heating time just according to the thickness of sealing-in material; put the plastic bag on the sealing-in surface and press the handle, the circuit will automatically control heating time. The power will automatically shut down when the indicator light goes out. After 1-2 seconds, release the handle to finish sealing.
2. Any damage occurs during sealing is because of over-long heating time, please spin the rotary knob anticlockwise to shorten heating time.
3. Too-short heating time will cause unstable sealing. Please spin the rotary knob clockwise to lengthen heating time
4. If the plastic bag sticks to rubber pressing board, it means the cooling time is insufficient. You must lengthen the cooling time after indicator light extinguishment. Slightly late to release the handle
5. Remain the heating time unchanged after adjustment, and no need to adjust it during continuous service.
6. Keep AC power cord always inserting on the socket, no electricity consumption when there is no sealing.
HS CODE:8422303090
Heat Sealing Hand Impulse Sealer ABS Shell PFS-Series Manual Make Plastic Poly PP PVC PE Foil Bag Heat Machine Specification:
| Model | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max. sealing length | 100mm/4 inches/10cm | 150mm/15cm/6 inches | 200mm/8 inches/20cm | 250mm/10 inches/25cm | 300mm/12 inches/30cm | 400mm/16 inches/40cm |
| Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Max. sealing thickness | 0.6mm | 0.6mm | 0.6mm | 0.8mm | 0.8mm | 0.8mm |
| Adjustable heating time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
