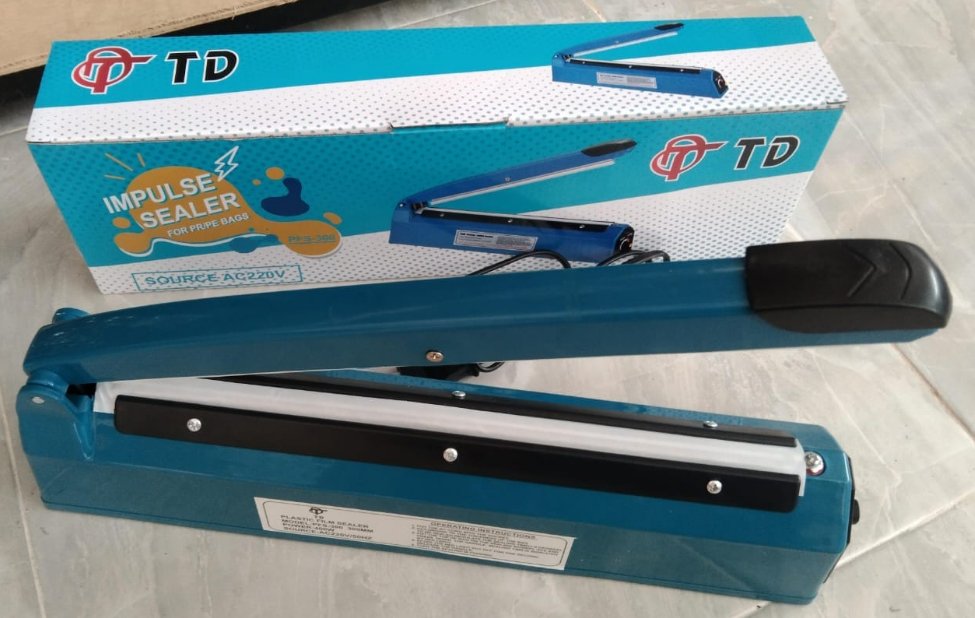

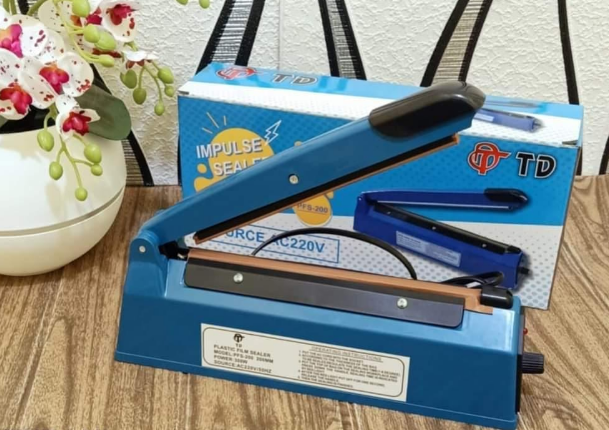

Hand-held Heat Sealer Hermetic Bag Sealing Machine PFS-400
Make and Export Hand-held Heat Sealer PFS-400 Hand Make 400mm / 16 Inches / 40cm Width Hermetic Plastic Bag Film Heat Sealing Machine By Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Hand-held Heat Sealer Plastic (ABS) Shell PFS-Series Hand Make Hermetic Plastic Bag Film Heat Sealing Machine can be used to seal all formats of barrier foil. The sealing process is based on constant-heat rather than impulse heat. Therefore, they are most suited to sealing aluminium barrier foil laminates.
Hand-held Heat Sealer Plastic (ABS) Shell PFS-Series Hand Make Hermetic Plastic Bag Film Heat Sealing Machine is suited for various plastic films package, like foodstuff, candy, medicine, electric elements, etc. It is mostly used in factories, shops and service industries. The sealer is most ideal for Polyethylene, Polyurethane, Poly vinyl chloride, Poly flex, bubble packs, padded mailers, foils, and other thermoplastic materials. For PE/PP Bags The sealer can seal Polypropylene (PP) and Polyethylene (PE) type of bags. They are mostly used for packaging. Impulse Sealing for Power-Saving This sealer doesn’t take up too much power as it will automatically turn the heater off when it becomes too hot. No power is consumed unless the sealer is being used. It has a timer in order to prevent over melt and save power.
Color:Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 Inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2.0s
Can Make OEM Products
Compact Design.
Strong Water Tight Seal.
Fast Operating.
Power Saving.
Precision Electronic Circuit.
Long Life.
Manual impulse sealer with welding time regulator.
Designed for welding medium-thick films, e.g. for gardening soil.
It allows welding of both bags and foil from a roll.
Color may vary depending on delivery.
The device is used in the food, chemical, cosmetic and pharmaceutical industries
Easy to use - no training required.
Metal compact and durable housing.
LED operation indicator.
Smoothly adjustable welding time.
After connecting, immediately ready to work.
Model: PFS-400
Color :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 Inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2.0 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
Hand-held Heat Sealer Plastic (ABS) Shell PFS-Series Hand Make Hermetic Plastic Bag Film Heat Sealing Machine is suited for various plastic films package, like foodstuff, candy, medicine, electric elements, etc. It is mostly used in factories, shops and service industries. The sealer is most ideal for Polyethylene, Polyurethane, Poly vinyl chloride, Poly flex, bubble packs, padded mailers, foils, and other thermoplastic materials. For PE/PP Bags The sealer can seal Polypropylene (PP) and Polyethylene (PE) type of bags.
Hand-held Heat Sealer PFS-400 Hand Make 400mm / 16 Inches / 40cm Width Hermetic Plastic Bag Film Heat Sealing Machine Package List:
1 X PFS-400 Hand-held Heat Sealer
2 X 16 Inches Spare Heat-resistant Strips
2 X 16 Inches Spare Heating Wires
1 X English User Manual
PFS-400 Hand-held Heat Sealer Weight: 2.82 Kg
Color Box Size:575X105X190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590X555X390mm
G.W/CTN:26.5Kg
HS CODE:8422303090
Hand-held Heat Sealer Plastic (ABS) Shell PFS-Series Hand Make Hermetic Plastic Bag Film Heat Sealing Machine Specification:
Model. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
Max.sealing length | 100mm/10cm | 150mm/15cm | 200mm/20cm | 250mm/25cm | 300mm/30/cm | 400mm/40cm |
Max.sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
Package | 1 Pcs/Color Box | |||||
QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
