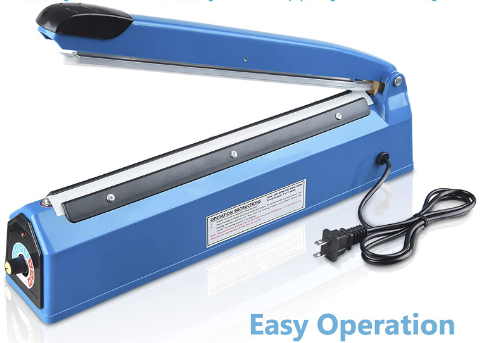

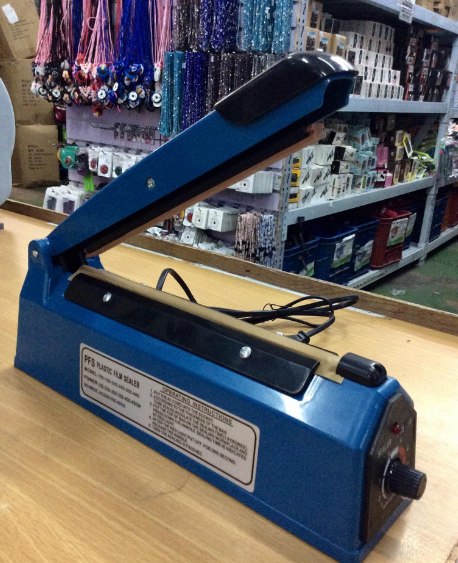

Impulse Sealer Heat Poly Tubing Packaging Machine PFS-200
Make and Wholesale Manual Impulse Sealer PFS-200 Hand Sealing 200mm / 8 inches / 20cm Wide Plastic Bag Poly Tubing Heat Packaging Machine From Zhejiang Tianyu Industry Co. Ltd., Supplier Factory Manufacturer In China.Manual Impulse Sealer ABS Plastic Body PFS-Series Hand Sealing Plastic Bag Poly Tubing Heat Packaging Machine is a type of bag sealer used to close plastic bags and poly-tubing with heat. Impulse sealers are ubiquitous to most industries and packaging operations. Hand impulse sealers are more commonly found in lower volume applications. A standard heat sealer will close a plastic bag up to 6 mil thick. A 5mm seal provides a stronger seal and can be used on bags up to 10 mil thick. It is important to understand that a heat sealer with a cutter should be used for poly-tubing. Another rule of thumb is to purchase a sealer that is 2 inches larger than the widest bag that needs to be heat sealed. The extra inch on each side of the bag will allow a strong seal and faster operation. A foot sealer should be considered for moderate volume applications and a band sealer for high volume. Boatman Marking offers a wide variety of impulse sealers for a spectrum of different packaging needs.
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.8mm (Max 6 Mil for PE, max 4 Mil for PP)
Can OEM Products
Suitable for PE/PP bags and so on.
Adjustable timer for different poly thicknesses.
Light weight, easy to use it
Strong power but don't waste electricity
Heat time is short
It is made of plastic material
More accurate with precision electronic control
Avoid the loss of product
Manual Impulse Sealer PFS-200 Hand Sealing 200mm / 8 inches / 20cm Wide Plastic Bag Poly Tubing Heat Packaging Machine Description:
Manual Impulse Sealer PFS-200 Hand Sealing 200mm / 8 inches / 20cm Wide Plastic Bag Poly Tubing Heat Packaging Machine Features:
Max Sealing Length: 200mm / 8 inches / 20cm
Width for seal: 2mmHeat Time: 0.2 -1.5s
Max thickness for seal: 0.8mm (Max 6 Mil for PE, max 4 Mil for PP)
Can OEM Products
Suitable for PE/PP bags and so on.
Adjustable timer for different poly thicknesses.
Light weight, easy to use it
Strong power but don't waste electricity
Heat time is short
It is made of plastic material
More accurate with precision electronic control
Avoid the loss of product
Manual Impulse Sealer PFS-200 Hand Sealing 200mm / 8 inches / 20cm Wide Plastic Bag Poly Tubing Heat Packaging Machine Description:
-
Model: PFS-200
Color: Light Blue,Green,White or Red
Max Sealing Length: 200mm / 8 inches / 20cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.8mm (Max 6 Mil for PE, max 4 Mil for PP)
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 300 W
Dimensions: 33X10X17.2cm (L X W X H)
Weight: 1.26 Kg - CE and CCC Certified
- Material: Plastic ABS Shell + Aluminum Frame
- Manual Impulse Sealer ABS Plastic Body PFS-Series Hand Sealing Plastic Bag Poly Tubing Heat Packaging Machine provides heat to melt one layer of plastic to another and creates a strong and tight seal for food preservation.
1 X PFS-200 Manual Impulse Sealer
2 X 8 Inches Long Extra Teflon Sheets
2 X 8 Inches Long Extra Heater Elements
1 X English User Manual
Color Box Size:33X10X17.2cm
PFS-200 Manual Impulse Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51X34.5X36cm
G.W/CTN:13.38Kg
2 X 8 Inches Long Extra Teflon Sheets
2 X 8 Inches Long Extra Heater Elements
1 X English User Manual
Color Box Size:33X10X17.2cm
PFS-200 Manual Impulse Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51X34.5X36cm
G.W/CTN:13.38Kg
HS CODE:8422303090
Manual Impulse Sealer ABS Plastic Body PFS-Series Hand Sealing Plastic Bag Poly Tubing Heat Packaging Machine Specification:
| Model | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max. sealing length | 100mm/4 inches/10cm | 150mm/15cm/6 inches | 200mm/8 inches/20cm | 250mm/10 inches/25cm | 300mm/12 inches/30cm | 400mm/16 inches/40cm |
| Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Max. sealing thickness | 0.6mm | 0.6mm | 0.6mm | 0.8mm | 0.8mm | 0.8mm |
| Adjustable heating time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
