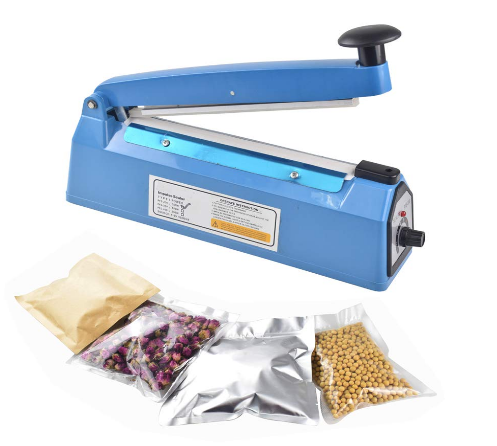

Hand Press Impulse Sealer Plastic Bag Pack Machine PFS-100

Hand Press Impulse Sealer PFS-100 Manual Sealing 100mm / 4 inches / 10cm Wide Plastic Bag Package Machine Features:


Hand Press Impulse Sealer PFS-100 Manual Sealing 100mm / 4 inches / 10cm Wide Plastic Bag Package Machine Specification:



Model: PFS-100
Color: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Thickness for seal: 0.6mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug/AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Hand Press Impulse Sealer ABS Plastic PFS-Series Manual Sealing Plastic Bag Package Machine Is used to seal: Sachets Pillow-type bags Pouches Dog bags Gusseted bags Suitable for sealing thermo sealable materials such as: Cellophane Poly-Ethylene (LDPE & HDPE) Poly-Propylene (PP & BOPP) Poly-Vinyl chloride (PVC) Poly-Olefins (POF).


Hand Press Impulse Sealer PFS-100 Manual Sealing 100mm / 4 inches / 10cm Wide Plastic Bag Package Machine Package list:


1 X  PFS-100 Hand Press Impulse Sealer
2 X 4 Inches Sealing Wires
2 X 4 Inches High Temperature Clothes
1 X English User Manual
PFS-100 Hand Press Impulse Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245X95X170mm
20 PCS/CTN
Carton Size:490X255X640mm
G.W/CTN:23Kg


Hand Press Impulse Sealer ABS Plastic PFS-Series Manual Sealing Plastic Bag Package Machine Use:


1.The machine without power switch. The AC power cord into the outlet, according to the thickness of the material to be sealed, adjust the heating time. The plastic on the sealing surface, then press the handle, the circuit is automatically controlled heating time. When the light is off, the power is automatically disconnected. After about 1-2 seconds, release the handle on a good seal.
2.The square when an access point appears damaged seal, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time.
3.If the seal is not strong, it is because the heating time is too short. Keep the knob clockwise to extend the heating time.
4.If a plastic bag stuck to the rubber plate, indicating the cooling time is not enough, we must extend the cooling time after the light goes out. Please release handle a little bit late.
5.Adjust heating time later, in use should remain unchanged, in continuous use do not have to make any adjustments.
6.The machine can always plug the AC power cord into the power outlet, do not consume power when not sealed.
