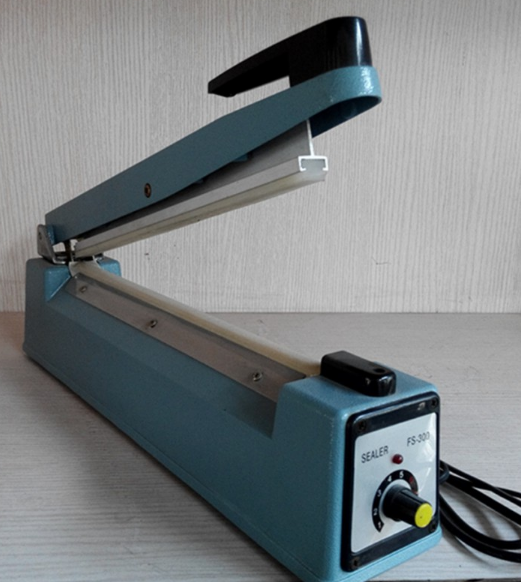

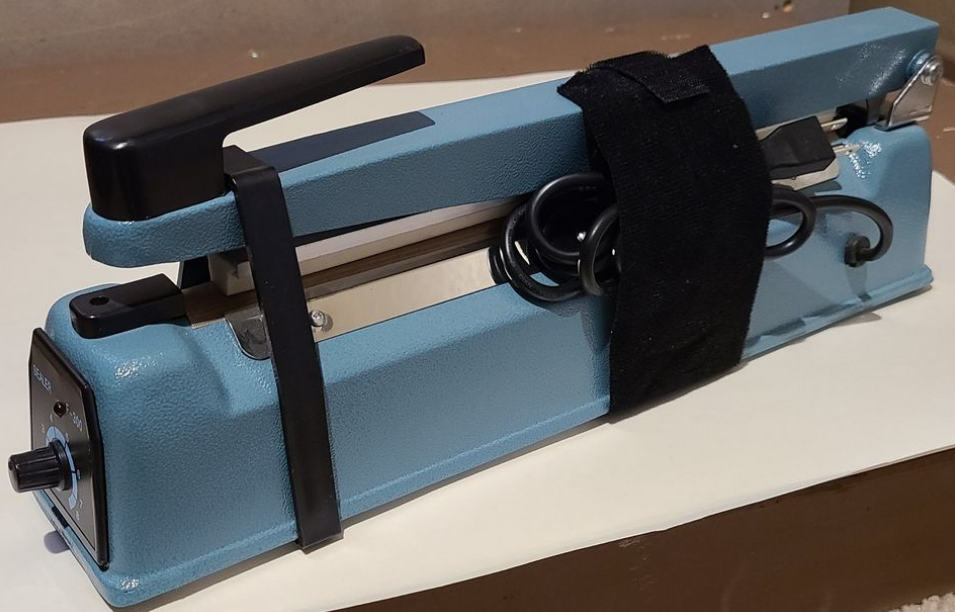

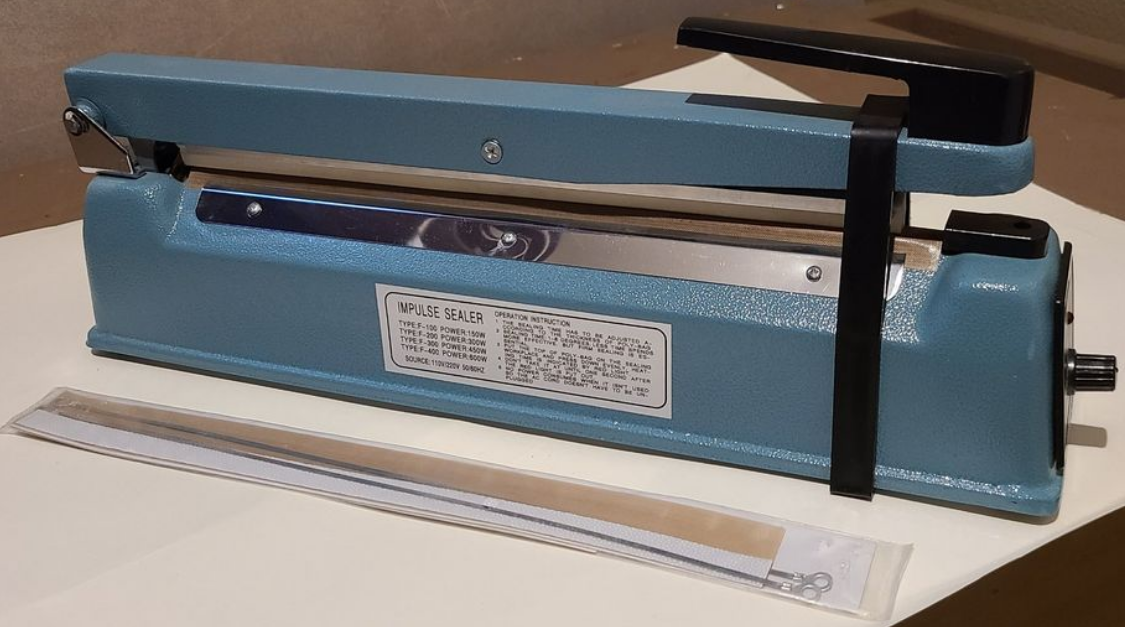

Electric Impulse Sealer Manual Heat Sealing Machine FS-400
Sealing Length:16 Inches / 400 mm / 40 cm
Seal width: 3 mm
Sealing Thickness: 0.01-0.8 mm
Heat Time: 0.2 -2 s
Can Make OEM Products
CE,RoHS and CCC Certified.
Electric Impulse Sealer 16 Inches Wide Manual Plastic Bag Film Heat Sealing Machine Specifications:
Color: Gray,Black, Blue,White
Sealing Length:16 Inches / 400 mm / 40 cm
Seal width: 3 mm
Sealing Thickness: 0.01-0.8 mm
Source: AC110V/60Hz or AC220V/50Hz
Power: 600 W
Weight: 3.26 Kg
Dimensions: 575 X105 X 195 mm (LX WX H)
Material: Iron Case
Plug:US Standard
CE,RoHS and CCC Certified.
UL approval.
Electric Impulse Sealer 16 Inches Wide Manual Plastic Bag Film Heat Sealing Machine is Perfect for a multitude of applications. Makes excellent air and water tight seals on most plastic materials up to 0.8mm. Sealing Materials as KEL-F,MYLAR,POLYFLEX,P.V.A,POLYETHYLENE,POLYURETHANE,PVC,POLYPROPYLENE,PLIOFILM,TIVAC,SARAN and other sealable materials.
Electric Impulse Sealer 16 Inches Wide Manual Plastic Bag Film Heat Sealing Machine Package:
10 PCS/CTN
Electric Impulse Sealer Iron Case FS-Series Manual Plastic Bag Film Heat Sealing Machine Use:
1.The machine without power switch. The AC power cord into the outlet, according to the thickness of the material to be sealed, adjust the heating time. The plastic on the sealing surface, then press the handle, the circuit is automatically controlled heating time. When the light is off, the power is automatically disconnected. After about 1-2 seconds, release the handle on a good seal.
2.The square when an access point appears damaged seal, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time.
3.If the seal is not strong, it is because the heating time is too short. Keep the knob clockwise to extend the heating time.
4.If a plastic bag stuck to the rubber plate, indicating the cooling time is not enough, we must extend the cooling time after the light goes out. Please release handle a little bit late.
5.Adjust heating time later, in use should remain unchanged, in continuous use do not have to make any adjustments.
6.The machine can always plug the AC power cord into the power outlet, do not consume power when not sealed.
HS CODE:8422303090
Model | FS -200 | FS-300 | FS-400 |
Impulse power | 300W | 400W | 600W |
Impulse voltage | AC220V/50HZ or AC110V/60HZ | ||
Max. sealing length |
200mm (8 Inches) |
300mm (12 Inches) |
400mm (16 Inches) |
Sealing width | 2mm | 2mm | 3mm |
Max. sealing thickness | 0.3mm | 0.4mm | 0.4mm |
Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
Temperature Control | 8-level | ||
Dimensions (L x W x H)Cm | 33.3X10X17.3 | 47X10.5X19 | 57.5X10.5X19.5 |
Weight | 1.98KGS | 2.24KGS | 3.26KGS |
Package | 1 PCS/Color Box | ||
QTY/CTN | 10PCS | 10PCS | 10PCS |
Carton Size(cm) | 53.5X34.5X36 | 57X48.5X38.5 | 59X57X39 |
G.W/CTN(Kg) | 20.6 | 23.58 | 32.6 |
QTY(sets)/20'GP | 4220 | 2630 | 2140 |
QTY(sets)/40'GP | 8730 | 5450 | 4430 |
QTY(sets)/40'HQ | 10240 | 6390 | 5190 |
