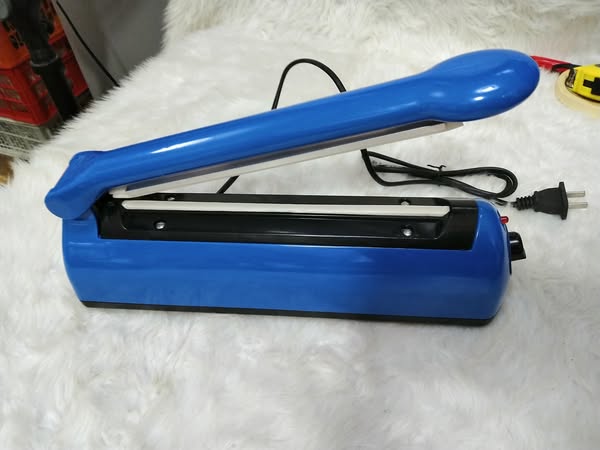

Portable Bag and Tubular Film Sealer Closing Machine PFS-400
Hand Pressure Type 16"/400 mm/16 inch/40 cm Length Impulse Portable Bag and Tubular Film Heat Sealer PFS-400 Closing Sealing Machine Features:
1. Made of high quality ABS material, sturdy and durable to use.
2. Sealing food with bags instead of putting them in container, more space saving.
3. It can be used for packaging all kinds of candy, food, daily necessities, stationery and medicine.
4. A knob for adjusting temperature level to get the perfect seal with various thicknesses of material.
5. Perfect for sealing plastics bags, foil bags, transparent vacuum bags, etc.Easy to use and sealing bags quickly.
6. Sponge layering: anti-skid handle design, high temperature resistant sponge layering to ensure smooth sealing rules, leaving no dead Angle.
7. Hollow out heat dissipation design is adopted at the bottom to effectively ventilate heat dissipation and extend service life
Hand Pressure Type 16"/400 mm/16 inch/40 cm Length Impulse Portable Bag and Tubular Film Heat Sealer PFS-400 Closing Sealing Machine Specification:
Model No.: PFS-400
Material: ABS Plastic
Plug Type: US plug
Voltage: 110V/220V
Max. Sealing Width: 16"/400 mm/16 inch/40 cm
Color: Blue
Pulse power: 600 W
Maximum bag sealing thickness: 0.4X2 mm
Maximum interface width: 2-3mm
Heating time: 0.2-1.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Welding time: infinitely adjustable
Size: 57.5X10.5X19 CM
Item Weight: 2.82 Kg
Hand Pressure Type 16"/400 mm/16 inch/40 cm Length Impulse Portable Bag and Tubular Film Heat Sealer PFS-400 Closing Sealing Machine Package list:
1XPFS-400 Hand Pressure Type Impulse Portable Bag and Tubular Film Heat Sealer Closing Sealing Machine
2X16"/400 mm/16 inch/40 cm Long Extra Spare Heat-resistant Strip
2X16"/400 mm/16 inch/40 cm Long Extra Spare Heating Wire
1XEnglish User Manual
1 PCS/Color Box
PFS-400 Hand Pressure Type Impulse Portable Bag and Tubular Film Heat Sealer Closing Sealing Machine Weight: 2.82 Kg
Color box Size:575x105x190 mm
10 PCS/CTN
Carton Size:590x555x390 mm
G.W/CTN:26.5Kg
Plastic ABS Case PFS Series Hand Pressure Type Impulse Portable Bag and Tubular Film Heat Sealer Closing Sealing Machine Use:
1) this machine without a power switch. Plug power cord into the AC socket, depending on seal material thickness, adjust the heating time. Place the bag on the sealing surfaces, and then hold down the handle, circuits that control the heating time. When the led is off, power is automatically disconnected. About 1-2 seconds, let go of the handles, sealing well.
2) if seal broken when sealing, it is because the heating time is too long, move the knob to Rotate counterclockwise, reduce heating time.
3) if sealing is not solid, it is because the heating time is too short, please rotate the knob in the clockwise direction, extending the heating time.
4) if the plastic bag stuck to the rubber platen, indicating cooling time is not enough, you must extend the cooling time after the led turns off, just release the handle a little later.
5) after the heating time to adjust, and should remain the same while in use. In continuous use without any further adjustment.
6) this machine can always plug the power cord into a power outlet, unsealed without consuming electricity.
Plastic ABS Case PFS Series Hand Pressure Type Impulse Portable Bag and Tubular Film Heat Sealer Closing Sealing Machine Attention:
1) should always be kept clean sealing surfaces, avoid residues on sealing oxidizes and reduces heating and heat-resistant fabric of life.
2) do not use a wet cloth to clean the sealing surfaces.
3) if heating the liners below was damaged, it can cause short circuits and damage to the heating cable. So every time when you replace the heater, you should check the gaskets intact. If damaged replace.
4) should be used when the heater must be replaced with the original has the same specifications of the downspout.
5) after prolonged use, please check the rubber plate. Because the rubber plate damage will affect quality seal.
HS CODE:8422303090
Plastic ABS Case PFS Series Hand Pressure Type Impulse Portable Bag and Tubular Film Heat Sealer Closing Sealing Machine Specification:
| Model No. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse Power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max Sealing Length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| Max Sealing Thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
| Max Sealing Width | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2-3mm | 2-3mm |
| Heating Time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
