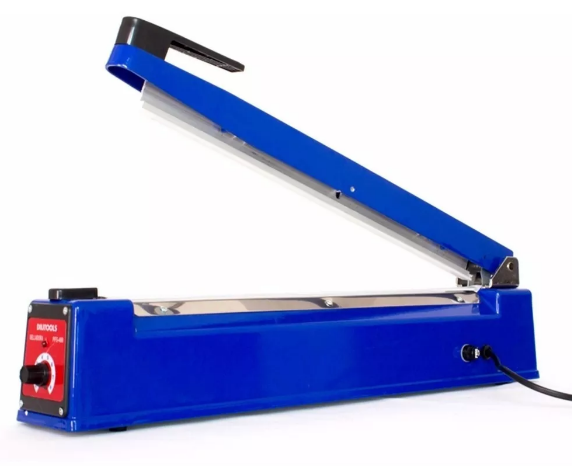

Impulse Sealer Plastic Bag Film Sealing Heat Machine PFS-200
Make and Supply Impulse Sealer PFS-200 Element Manual Make 200mm / 8 inches / 20cm Wide Plastic Bag Film Sealing Heat Machine By Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer In China.Impulse Sealer ABS Plastic Shell PFS-Series Element Manual Make Plastic Bag Film Sealing Heat Machine is perfect for sealing bags. It works efficiently and effectively, ensuring that your products are sealed and protected during shipping and handling. The sealer is made by Zhejiang Tianyu Industry Co., Ltd, a trusted brand in the industry, and is designed to meet all your sealing needs. This product is ideal for businesses in the material handling, packing and shipping, and industrial industries. It is a reliable and durable machine that is easy to use and maintain. Whether you are sealing small or large bags, this sealer provides a secure and professional finish to your packaging.This durable sealer costs pennies a day to operate, and adjusts easily for thicker bags.Comes with two couples of heat wire and teflon sheet.No power is consumed when it isn't used so it doesn't need to be unplugged.It can seal many types of plastic bags including bubble wraps, cellophane, shrink wraps and thick heavy duty bags etc.Widely used in factories, shops and service industries.
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.8mm (Max 6 Mil for PE, max 4 Mil for PP)
Can OEM Products

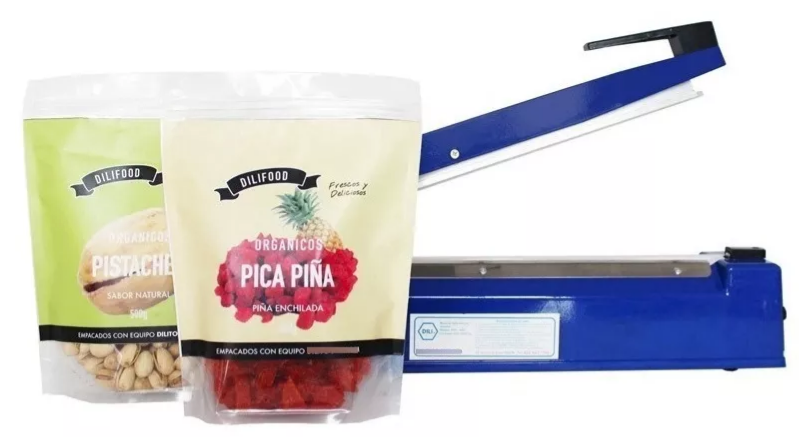

Sealing Machine Work on Polyethylene, Polypropylene & Polyolefine Compounds plastic film.Can be easily used to package a variety of candy, food, general merchandise, stationery, and pharmaceuticals etc.
Sealer Machine Hand Sealer for all plastic films, laminated films Aluminum film sealing Area.
Heat Sealing Machine Perfect for household, warehouse, supermarket to pack candy, stationery, drugs etc.
Plastic Bag Sealing Machine An adjustable timer with 8 options, meets various packaging needs.
Kindly pls reading Instruction manual carefully and to adjust the temperature that you need when using it for the first time.
We recommend starting low and gradually increasing your settings from 2.5-4.5 temperature grade for the different thick bags,it's better don't exceed 5.grade temperature.
The red light is not predictable when plug into the power.It is only predictable when keep the handle pressed down on bottom.This is a protection for sealer or it will burn out after several uses.When seal is done,the red light will go off.
Keep the handle pressed down for 2-3.5 seconds to get seals optimal results.Otherwise the sealing place will be not smooth.When seal is done,the red light will go off.
Keep the sealer's surface clean to avoid the oxidation of the residue which will reduce the life of the heat sealing strip.
Do not use wet cloth to clean the surface of heat sealing strip.
If this machine works continuously for more than 30 minutes,please let the machine rest for 3-5 minutes.
Impulse Sealer PFS-200 Element Manual Make 200mm / 8 inches / 20cm Wide Plastic Bag Film Sealing Heat Machine Description:
-
Model:PFS-200
Color:Light Blue,Green,White or Red
Sealing Length: 200mm / 8 inches / 20cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.8mm (Max 6 Mil for PE, max 4 Mil for PP)
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 300 W
Dimensions: 33X10X17.2cm (L X W X H)
Weight: 1.26 Kg - CE and CCC Certified
- Material: Plastic ABS Shell + Aluminum Frame
- Different temperature settings will be more suitable for certain materials of a higher or lower melting point or thickness,and the adjustable timer makes it easy to seal a variety of packaging.
2 X 8 Inches Long Extra Teflon Sheets
2 X 8 Inches Long Extra sealing elements
1 X English User Manual
Color Box Size:33X10X17.2cm
PFS-200 Impulse Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51X34.5X36cm
G.W/CTN:13.38Kg
How to replace the heat seal strips:
2. Remove the old heat sealing strip and heating element
3. Install a new heat sealing element
4. Then tighten the screws.
Impulse Sealer ABS Plastic Shell PFS-Series Element Manual Make Plastic Bag Film Sealing Heat Machine Specification:
| Model | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Max. sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
| Max.sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
| Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Sealing heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
