Hand-operated Impulse Sealer Plastic Sealing Machine PFS-400
Make and Wholesale Hand-operated Impulse Sealer 16 Inches / 400 mm / 40 cm Wide Manual Plastic Bag PP PE Bag Heat Sealing Machine PFS-400 In Factory From China.Hand-operated Impulse Sealer Plastic Body PFS-Series Manual Plastic Bag PP PE Bag Heat Sealing Machine can provide a perfect sealing effect, not only for preserving food but also for packaging household items, such as storing documents, photos, gifts, etc.Hand-operated Impulse Sealer has low power consumption and energy-saving, easy to operate design, adjustable 8 heating temperature knob, used to seal bags of different thicknesses, to meet various packaging needs.Hand-operated Impulse Sealer Plastic Body PFS-Series Manual Plastic Bag PP PE Bag Heat Sealing Machine is made of sturdy aluminum and plastic materials, non-toxic, odourless, durable, reinforced, compression-resistant, and can be sealed many times.It comes with one extra heating coil with silicon layer.
Hand-operated Impulse Sealer Plastic Body PFS-Series Manual Plastic Bag PP PE Bag Heat Sealing Machine is ideal for any application requiring an air tight seal.The Impulse Sealer insures a water tight and air tight seal for effective autoclaving and sterilization procedures. Made of a solid die cast construction that meets FDA production standards amd a compact lightweight design make these impulse sealers easy to use and very effective.They include a visual heating display, variable temperatures and instant warm up.These powerful machines are affordable and easy to use.The small footprint makes them a great for light-duty bag sealing applications.Create a uniform seal consistently with no operator training.Simply place the bag over the sealing element and lower the upper jaw to activating the unit.Once the preset seal time is reached, the operator raises the upper jaw to retrieve the sealed product.The quick and easy sealing process is great to seal bags for a great variety of applications. The Impulse Sealer seals industry grade materials including polyethylene, pliofilm, P.V.A., polyurethane, Kel-F, tivac, Polyvinylchloride polyflex, saran, polypropylene, mylar, nylor.
Color:Light Blue,Green,White or Red
Maximum sealing length:16 Inches / 400 mm / 40 cm
Maximum bag sealing thickness: 0.4 mm X 2
Sealing Width 3 mm
Heat Time: 0.2 -2 s
Can Make OEM Products
Hand-operated Impulse Sealer 16 Inches / 400 mm / 40 cm Wide Manual Plastic Bag PP PE Bag Heat Sealing Machine Features:
Maximum bag sealing thickness: 0.4 mm X 2
Sealing Width 3 mm
Heat Time: 0.2 -2 s
Can Make OEM Products
Hand-operated Impulse Sealer Plastic Body PFS-Series Manual Plastic Bag PP PE Bag Heat Sealing Machine is a device used to seal plastic bags and other thermoplastic materials by applying heat. This type of sealer operates on the principle of using a short burst of heat to melt the plastic together, creating a secure and airtight seal. Here's a brief overview of how impulse sealers typically work.
Impulse sealers are available in various sizes and configurations, but they generally require an electrical power source.
The sealer has a heating element, often made of Nichrome wire, which heats up when the sealer is activated.
Impulse sealers have sealing jaws or bars that come together when the sealer is engaged. The heating element is usually embedded in these jaws.
When the operator places the plastic bag or material between the sealing jaws and activates the sealer, the jaws close, and the heating element generates a short burst of intense heat.
After the heat is applied, the sealing jaws remain closed for a brief cooling cycle. This allows the plastic to solidify and form a strong, airtight seal.
The impulse sealers are commonly used in various industries for packaging purposes, such as sealing food items, medical supplies, and other products in plastic bags. They are known for their efficiency, ease of use, and ability to create reliable seals on different types of thermoplastic materials.
LED sealing power indicator.
Adjustable timer for optimal seal control.
Includes 2 Sealing Elements & 2 PTFE Sheets
CE,RoHS and CCC Certified.
CE,RoHS and CCC Certified.
Hand-operated Impulse Sealer 16 Inches / 400 mm / 40 cm Wide Manual Plastic Bag PP PE Bag Heat Sealing Machine Specification:
Model:PFS-400
Color :Light Blue,Green,White or Red
Maximum sealing length:16 Inches / 400 mm / 40 cm
Maximum bag sealing thickness: 0.4 mm X 2
Sealing Width 3 mm
Heating time: 0.2-2 s
Film thickness:0.8 mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
SAA approval plug: US plug/EU plug/UK plug/AU plug
1 X PFS-400 Hand-operated Impulse Sealer
2 X Spare Sealing Elements
2 X Spare PTFE Sheets
1 X English User Manual
PFS-400 Hand-operated Impulse Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190 mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390 mm
G.W/CTN:26.5 Kg
Model:PFS-400
Color :Light Blue,Green,White or Red
Maximum sealing length:16 Inches / 400 mm / 40 cm
Maximum bag sealing thickness: 0.4 mm X 2
Sealing Width 3 mm
Heating time: 0.2-2 s
Film thickness:0.8 mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
SAA approval plug: US plug/EU plug/UK plug/AU plug
Hand-operated Impulse Sealer Plastic Body PFS-Series Manual Plastic Bag PP PE Bag Heat Sealing Machine can seal a variety of bags including plastic, polypropylene (poly bags), bubble bags, PVC, polyester, kraft paper bags, and tea bags. With 8 adjustable temperature settings, it’s versatile and convenient.
Hand-operated Impulse Sealer 16 Inches / 400 mm / 40 cm Wide Manual Plastic Bag PP PE Bag Heat Sealing Machine Package List:1 X PFS-400 Hand-operated Impulse Sealer
2 X Spare Sealing Elements
2 X Spare PTFE Sheets
1 X English User Manual
PFS-400 Hand-operated Impulse Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190 mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390 mm
G.W/CTN:26.5 Kg
HS CODE:8422303090
Hand-operated Impulse Sealer Plastic Body PFS-Series Manual Plastic Bag PP PE Bag Heat Sealing Machine Specification:

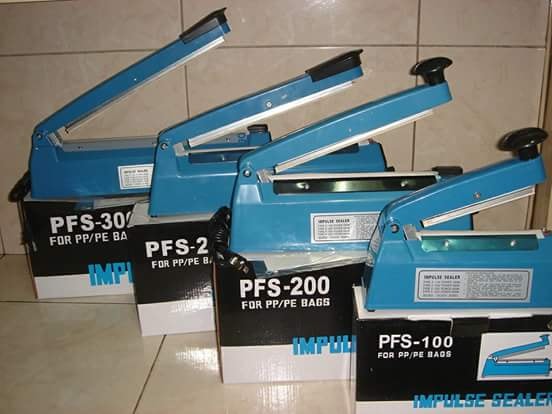

| Model No | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Max sealing length |
100 mm (4 Inch) |
150 mm (6 Inch) |
200 mm (8 Inch) |
250 mm (10 Inch) |
300 mm (12 Inch) |
400 mm (16 Inch) |
| Max sealing thickness | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm |
| Max sealing width | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 3 mm |
| Heating time | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-2 s |
| Timer Setting | 8 Grade | |||||
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
