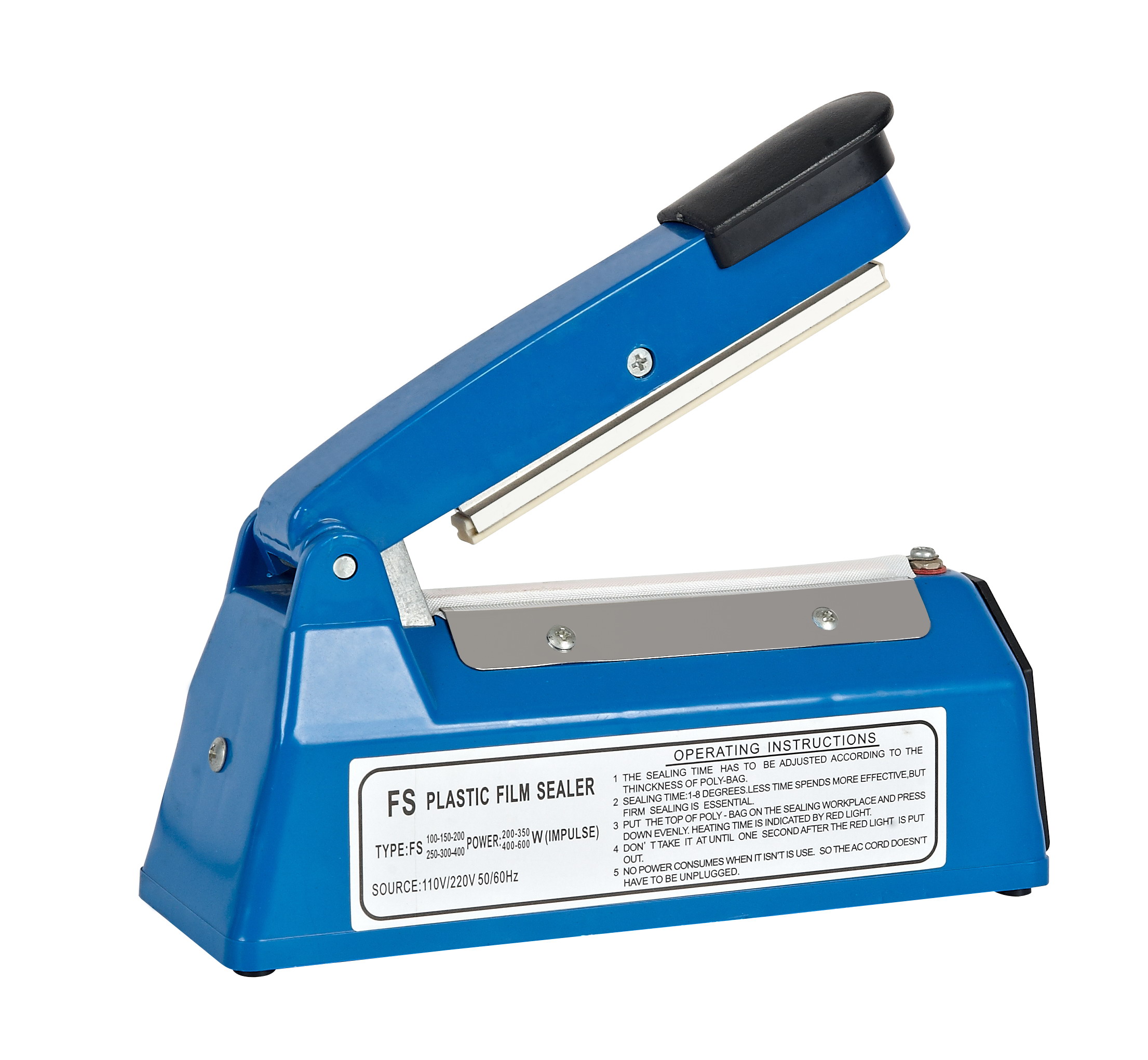

Hand Operated Impulse Heat Sealer For Bag And Tubing PFS-150
Export Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing PFS-150 From Factory In China. Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing Plastic Shell PFS-Series Sealing Machines are ideal for sealing our mini-sample sachets and pouches. They are designed for the continuous sealing of thermoplastic films such as polyethylene and polypropylene.They operate on the impulse sealing method, controlled by a plug-in transistorized circuit board.They work by delivering an instantaneous high current impulse to a heater ribbon on the device surface. This is a small unit, with a miximum seal length of 6", perfect for sealing our sample pouches.Unlike many sealers on the market, our sealer has a generous 5mm seal width (about 3/8") which looks much nicer on sample pouches. impulse bag sealer used for in home and small business packaging It seals plastic and poly bags quickly, keeping foods and goods fresh.Works on bag thickness up to 0.8 mm for strong, reliable seals.No preheat required for instant sealing, boosting efficiency. Includes extra sealing elements and teflon sheets for easy maintenance.
Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing Package Includes:
Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing Feature:
Model:PFS-150
Max.Sealing Length:150mm / 15cm / 6 inches
Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heat Time: 0.2 -1.5s
Can Make OEM Products
Model:PFS-150
Max.Sealing Length:150mm / 15cm / 6 inches
Sealing Width: 2mm
Sealing Thickness: 0.01-0.8mm
Heat Time: 0.2 -1.5s
Can Make OEM Products
Hand operated
Easy to use
Automatic timer
Suitable film: polypropylene and polythene bags and tubing is a heavy duty impulse sealing machine
Compact in size, light in weight
Impulse sealing with electronic control
Electricity is used only when the sealing bar is down for safety.
8 different adjustable lengths of sealing time.
Seals a range of materials including polyethylene, mylar, nylon, polypropylene, tyvek, and more.
Auto LED shutoff for safe, hands-free operation
No preheat required for instant sealing
Includes 2 extra sealing elements, 2 extra teflon sheets, and instruction manual
Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing Specifications:
Model:PFS-150
Color:Gray,Black,Blue,White
Max.Sealing Length: 150mm / 15cm / 6 inches
Sealing Width: 2mm
Sealing Thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Heating Time:0.2-1.5S
Source: AC110V / 50Hz or AC220V/60Hz
Power: 220W
Dimensions: 295 X 95 X 180mm (L X W X H)
Weight: 1.24 Kg
Suitable for: PE/PP Bags
Model:PFS-150
Color:Gray,Black,Blue,White
Max.Sealing Length: 150mm / 15cm / 6 inches
Sealing Width: 2mm
Sealing Thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Heating Time:0.2-1.5S
Source: AC110V / 50Hz or AC220V/60Hz
Power: 220W
Dimensions: 295 X 95 X 180mm (L X W X H)
Weight: 1.24 Kg
Suitable for: PE/PP Bags

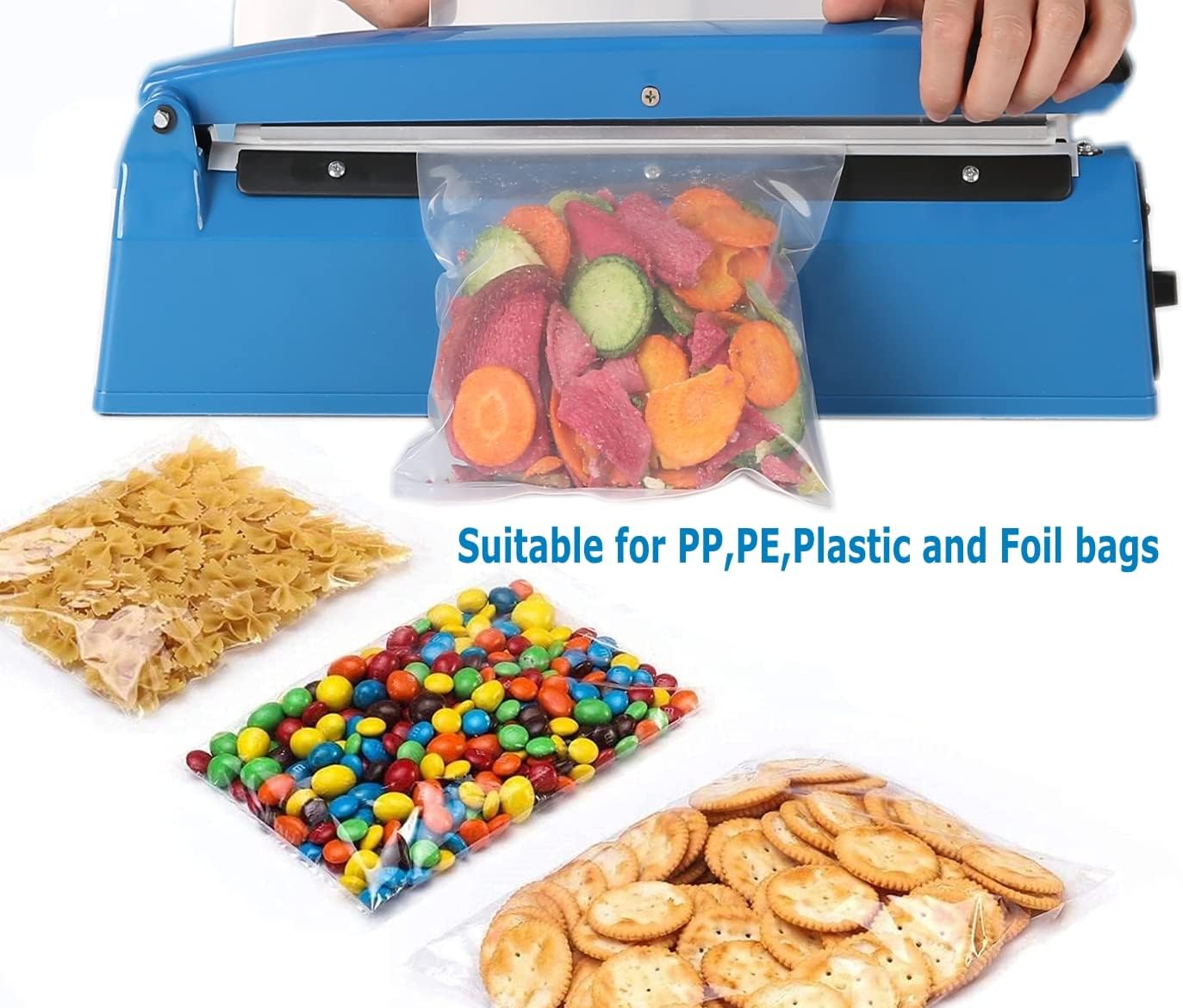

Impulse Heat Sealer is perfect for small to medium sized businesses that want to speed up their packaging processes. Seals many sizes and types of bags and comes with a full one year limited manufacturer parts warranty.
Fast and Reliable Hand Held Sealer!
Easy To Set Up, Use, and Maintain!
Full One Year Limited Manufacturer Parts Warranty!
We have upgraded transformers and body on our impulse sealer for a stronger and heavier use range.
These models have gone back to the the original Aluminium frame with strengthened joints and frame
Ideal for packeting industries
Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing Package Includes:
1 X PFS-150 Hand Operated Impulse Heat Sealer
1 X Extra Sealing Elements
1 X Extra Teflon Sheets
1 X English User Manual
PFS-150 Hand Operated Impulse Heat Sealer Weight: 1.24 Kg
1 PCS/Color Box
Color Box Size:29.5 X 9.5 X 18cm
20 PCS/CTN
Carton Size:52.5 X 29.5 X 65.5cm
G.W/CTN:25.84 Kg
HS CODE:8422303090
Hand Operated Impulse Heat Sealer For Plastic Bag And Poly Tubing Plastic Shell PFS-Series Sealing Machines Specification:
| Model. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max. sealing length | 100mm/4 inches | 150mm/6 inches | 200mm/8 inches | 250mm/10 inches | 300mm/12 inches | 400mm/16 inches |
| Sealing width | 2mm | 3mm | ||||
| Max sealing thickness | 0.6mm | 0.8mm | ||||
| Adjustable heating time | 0.2-1.5s | 0.2-2s | ||||
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06Kgs | 1.24Kgs | 1.26Kgs | 1.58Kgs | 1.68Kgs | 2.82Kgs |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20 Pcs | 10 Pcs | ||||
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
