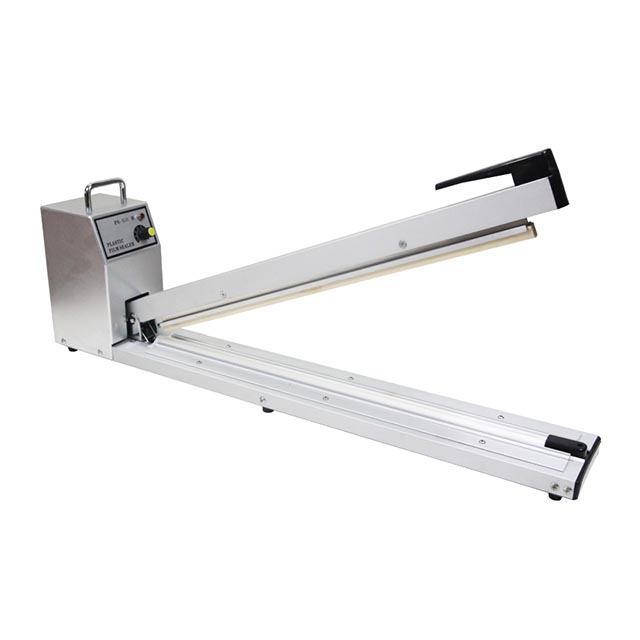

Long Arm Impulse Sealer Aluminum Frame Seal Machine AFS-1000
Manufacture And Export Long Arm Impulse Sealer AFS-1000 Hand Operated 40 Inches / 1000 mm / 100 cm Long Aluminum Arm Frame Heat Sealing Machine By Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Long Arm Impulse Sealer AFS-Series Aluminum Frame Hand Operated Long Aluminum Arm Frame Heat Sealing Machine is a type of packaging machine that uses heat to seal various types of plastic bags and films.It works by applying pressure and heat to the material, which melts the plastic and seals it together.The impulse sealer is versatile and easy to use, making it a popular choice for a wide range of industries including food, pharmaceuticals, electronics, and more.The long arm impulse sealer is equipped with a heating element that is activated when the operator presses down on the sealer arm. The heat is applied to the sealing bar, which in turn melts the plastic material and creates a seal. The sealing process is quick and efficient, with most seals being completed in a matter of seconds.
Long Arm Impulse Sealer AFS-Series Aluminum Frame Hand Operated Long Aluminum Arm Frame Heat Sealing Machine suitable for all kinds of plastic films, laminated films and aluminium-plastic film sealing; can be widely used in food, souvenirs, candy, tea, medicine, hardware and other industries. It is the most convenient and economical sealing equipment for shops, families and factories.The machine can automatically cut of the bag when finish the sealing.
Long Arm Impulse Sealer AFS-1000 Hand Operated 40 Inches / 1000 mm / 100 cm Long Aluminum Arm Frame Heat Sealing Machine Feature:
Seal Width:3mm or 5mm
Sealing Thickness: 0.3mm X 2
Heat Time:4.2-4.5S
Can Make OEM Products
For PE/PP Bags
Impulse Sealing for Power-Saving
Precision Electronic Control Circuit

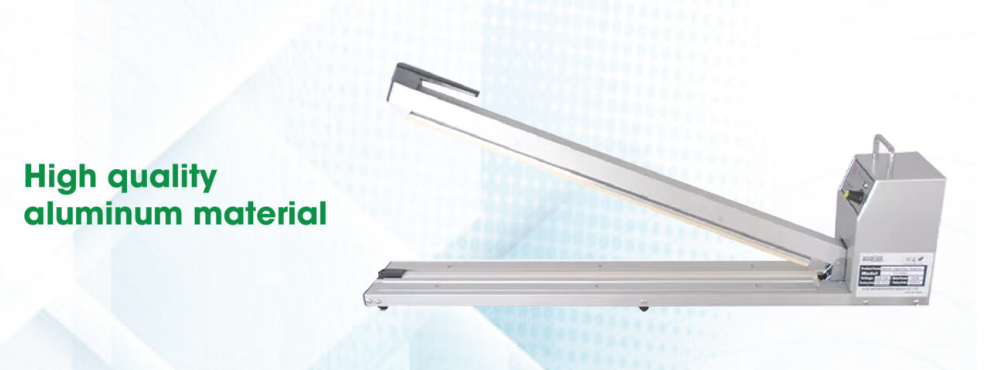

High quality aluminum material, strong, durable and long lasting.
Simple operation panel, adjustable heating level according to bag thickness.
AFS-Series Aluminum Frame Hand Operated impulse sealers are widely used in such industries as foodstuff, special local products, tea, medicine, hardware etc.
They are most convenient and economical sealing equipments for shops, families and factories

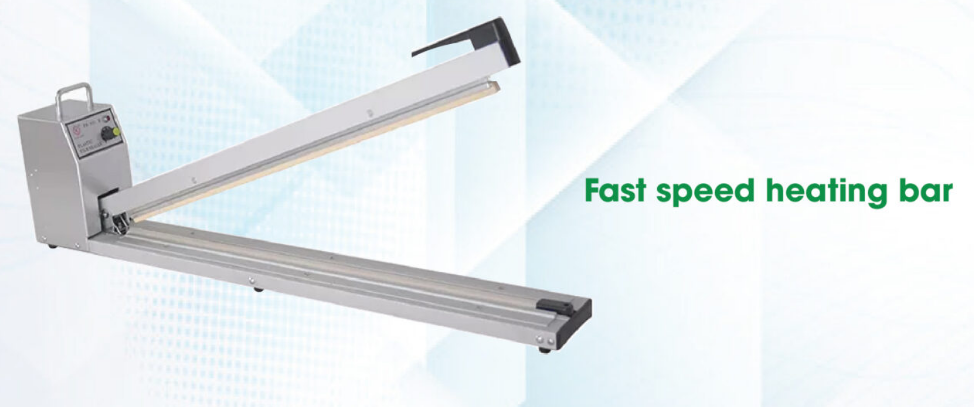

Fast speed heating bar.
Simple operation panel, adjustable heating level according to bag thickness.
AFS-Series Aluminum Frame Hand Operated impulse sealers are widely used in such industries as foodstuff, special local products, tea, medicine, hardware etc.
They are most convenient and economical sealing equipments for shops, families and factories
Fast speed heating bar.
AFS-Series Aluminum Frame Hand Operated impulse sealers widely applied to seal all kinds of plastics films, compound films and aluminum-plastic film.
These extra long Impulse Sealers enable the user to seal large objects on a table top.
Comes standard with a round element wire for sealing and trimming, sealing timer and a carrying handle for portability.
Sturdy steel, light weight construction.
Sealed bags allow your customers to view the product before opening it. Sealers also secure all products together from you to your customer. Your merchandise will also stay cleaner.
The correct way to use an impulse sealer is to test bags using a short time cycle. Do a test seal and check. Increase the timed cycle a bit and retest until you have a good seal. Once you have a good seal make sure to keep the arm down for 2-5 seconds after the heat cycle ends to allow the seal to congeal.
These extra long Impulse Sealers enable the user to seal large objects on a table top.
Comes standard with a round element wire for sealing and trimming, sealing timer and a carrying handle for portability.
Sturdy steel, light weight construction.
Sealed bags allow your customers to view the product before opening it. Sealers also secure all products together from you to your customer. Your merchandise will also stay cleaner.
The correct way to use an impulse sealer is to test bags using a short time cycle. Do a test seal and check. Increase the timed cycle a bit and retest until you have a good seal. Once you have a good seal make sure to keep the arm down for 2-5 seconds after the heat cycle ends to allow the seal to congeal.
Long Arm Impulse Sealer AFS-1000 Hand Operated 40 Inches / 1000 mm / 100 cm Long Aluminum Arm Frame Heat Sealing Machine Specifications:
Color:Gray,Black, Blue,White
Max Sealing Length:40 Inches / 1000 mm / 100 cm
Seal Width: 3mm or 5mm
Sealing Thickness: 0.3mm X 2
Heat Time: 4.2-4.5S
Dimensions: 1300X190X320 mm (L X W X H)
Weight: 19 Kg
Voltage: AC110V 60HZ or AC220V 50HZ
Power: 1400W
Material: Aluminum Frame
Plug: US Standard
Long Arm Impulse Sealer AFS-Series Aluminum Frame Hand Operated Long Aluminum Arm Frame Heat Sealing Machine user to seal large objects on a table top.seal heavier packages without having to lift them to accomplish sealing. Comes standard with a round element wire for sealing and trimming, sealing timer and a carrying handle for portability. Sturdy steel construction and yet lightweight construction,Sturdy steel.
Long Arm Impulse Sealer AFS-1000 Hand Operated 40 Inches / 1000 mm / 100 cm Long Aluminum Arm Frame Heat Sealing Machine Package includes:
1 X AFS-1000 Long Arm Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Sheets
1 X English Instruction Manual
AFS-1000 Long Arm Impulse Sealer Weight:19 Kg
1 PCS/CTN
HS CODE:8422303090
Long Arm Impulse Sealer AFS-Series Aluminum Frame Hand Operated Long Aluminum Arm Frame Heat Sealing Machine Specifications:
| Model | AFS-450 | AFS-600 | AFS-750 | AFS-900 | AFS-1000 |
| Max.Sealing length |
18 Inch 450mm |
24 Inch 600mm |
30 Inch 750mm |
36 Inch 900mm |
40 Inch 1000mm |
| Sealing Welding width | 3mm or 5mm | ||||
| Max.Sealing thickness | 0.3mm X 2 | ||||
| Heating time (sec) | 4.2-4.5S | ||||
| Adjustable heating Levels | 8 | ||||
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | ||||
| Impulse Power | 530W | 800W | 1000W | 1200W | 1400W |
| Dimensions (L X W X H)cm | 72X19X30 | 87X19X30 | 105X19X32 | 120X19X32 | 130X19X32 |
| Weight(kg) | 9.2 | 11 | 13 | 16 | 19 |
| Package | 1 Pcs/Carton | ||||
