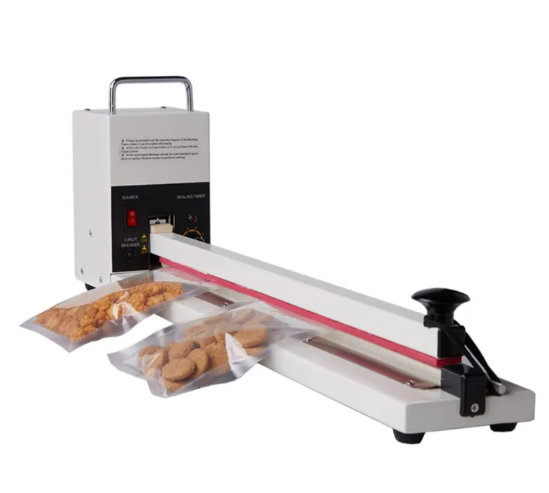

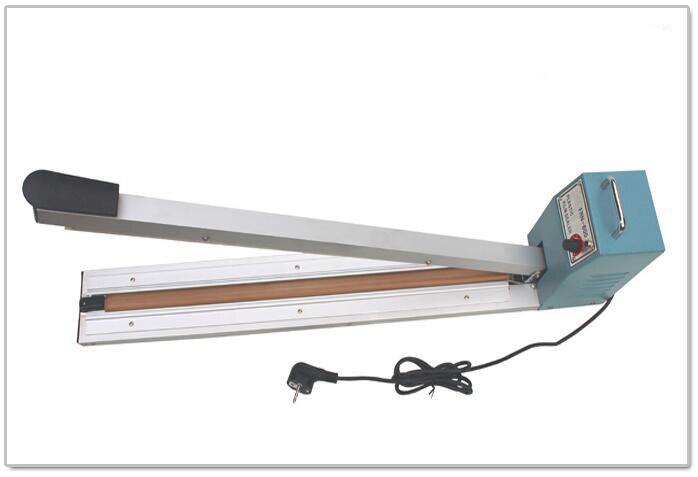

Impulse Sealer Plastic Bag Long Hand Sealing Machine AFS-450
Make and Export Impulse Sealer 18 Inch / 450 mm / 45 cm Width Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine AFS-450 From Factory In China.Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine offers reliable manual sealing with an 18-inch-long，24-inch-long,30-inch-long,36-inch-long and 40-inch-long seal bar and adjustable time settings for precision.Designed for commercial packaging, it features a light indicator and dial controls for user-friendly operation.its compact size ensures convenient placement in various workspaces while delivering efficient performance.
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine is ideal for mail rooms, parts, and shipping departments. They provide the best packaging solution in the most affordable, reliable, portable, and efficient way possible! The AIE C Series has a trimming blade built into the handlebar to allow you to trim excess plastic off of your seal directly. These models are ideal for plastic packaging that demands low clearance from the sealing line for cleaner-looking packaging. Based on your individual packaging needs, select from a variety of sealing lengths and widths.
Seal Width:3 mm or 5 mm
Sealing Thickness: 0.3 mm X 2
Heat Time:4.2-4.5 s
Can Make OEM Products
Model: AFS-450
Color:Gray,Black, Blue,White
Max Sealing Length:18 Inch / 450 mm / 45 cm
Seal Width: 3 mm or 5 mm
Sealing Thickness: 0.3 mm X 2
Heat Time: 4.2-4.5 s
Dimensions: 720 X 190 X 300 mm (L X W X H)
Weight: 9.2 Kg
Voltage: AC110V 60HZ or AC220V 50HZ
Power: 530 W
Material: Aluminum Frame
Plug: US Standard
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine can be used in the laboratory for securely sealing specimen bags and to insure a water and airtight seal for autoclaving and sterilization procedures. These heatsealers provide an exceptional 2 mm wide air and watertight seal on most plastic materials up to 0.8 mm in thickness, including polyethyelene, polypropylene, polyurethane and more.
Impulse Sealer 18 Inch / 450 mm / 45 cm Width Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Feature:
Seal Width:3 mm or 5 mm
Sealing Thickness: 0.3 mm X 2
Heat Time:4.2-4.5 s
Can Make OEM Products
Fast heating: plug in & start sealing
Adjust the timer to the thickness of the material
Manual operation
18-in. -long seal bar
Adjustable time settings
Light indicator
Dial controls
Air & watertight seals on most plastic materials up to 8 mil
Plugs into standard 110 or 220 volt - no special wiring needed
Manufacturer tested and comes with warranty
Energy-efficient -- only uses power when sealing
Heating element only hot when sealing
Makes airtight/watertight seal on virtually any heatsealable material in seconds
Works on most plastics up to 6 mm thick
Comes fully assembled
8 timer settings allow adjustments based on thickness of material
UL and CE,RoHS and CCC approved
Customize: OEM and ODM available.
Customize: OEM and ODM available.
Impulse Sealer 18 Inch / 450 mm / 45 cm Width Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Specifications:
Model: AFS-450
Color:Gray,Black, Blue,White
Max Sealing Length:18 Inch / 450 mm / 45 cm
Seal Width: 3 mm or 5 mm
Sealing Thickness: 0.3 mm X 2
Heat Time: 4.2-4.5 s
Dimensions: 720 X 190 X 300 mm (L X W X H)
Weight: 9.2 Kg
Voltage: AC110V 60HZ or AC220V 50HZ
Power: 530 W
Material: Aluminum Frame
Plug: US Standard
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine can be used in the laboratory for securely sealing specimen bags and to insure a water and airtight seal for autoclaving and sterilization procedures. These heatsealers provide an exceptional 2 mm wide air and watertight seal on most plastic materials up to 0.8 mm in thickness, including polyethyelene, polypropylene, polyurethane and more.
Impulse Sealer 18 Inch / 450 mm / 45 cm Width Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Package includes:
1 X AFS-450 Hand Impulse Sealer
2 X Extra Heating Elements
2 X Extra PTFE Covers
1 X English Instruction Manual
AFS-450 Hand Impulse Sealer Weight:9.2 Kg
1 PCS/CTN
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Instructions for Use:
Plug cord into AC outlet. Machine will operate only when arm is depressed. Regulate the timer according to thickness of material to be sealed. Use a higher number for thicker material (settings 1- 8). Pull handle down. Sealing takes place when light is on. Leave down for an additional second after light goes off for a better seal
Set timer to a lower number if seal burns through
Raise timer to a higher number if material isn't fully sealed
If bag sticks to silicon rubber, give more cooling time
Once you set the timer , machine will remain constant
Machine will not operate unit until handle is lowered
Close supervision is required when the product is used near children
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Instructions for Use:
Plug cord into AC outlet. Machine will operate only when arm is depressed. Regulate the timer according to thickness of material to be sealed. Use a higher number for thicker material (settings 1- 8). Pull handle down. Sealing takes place when light is on. Leave down for an additional second after light goes off for a better seal
Set timer to a lower number if seal burns through
Raise timer to a higher number if material isn't fully sealed
If bag sticks to silicon rubber, give more cooling time
Once you set the timer , machine will remain constant
Machine will not operate unit until handle is lowered
Close supervision is required when the product is used near children
HS CODE:8422303090
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Specifications:
Impulse Sealer AFS-Series Aluminum Frame Plastic Bag Film and Poly Tubing Long Hand Arm Heat Sealing Machine Specifications:
| Model | AFS-450 | AFS-600 | AFS-750 | AFS-900 | AFS-1000 |
| Max.Sealing length |
18 Inch 450mm |
24 Inch 600mm |
30 Inch 750mm |
36 Inch 900mm |
40 Inch 1000mm |
| Sealing Welding width | 3mm or 5mm | ||||
| Max.Sealing thickness | 0.3mm X 2 | ||||
| Heating time (sec) | 4.2-4.5S | ||||
| Adjustable heating Levels | 8 | ||||
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | ||||
| Impulse Power | 530W | 800W | 1000W | 1200W | 1400W |
| Dimensions (L X W X H)cm | 72X19X30 | 87X19X30 | 105X19X32 | 120X19X32 | 130X19X32 |
| Weight(kg) | 9.2 | 11 | 13 | 16 | 19 |
| Package | 1 Pcs/Carton | ||||
