Plastic Bag Heat Sealers Long Hand Sealing Machines AFS-1000
Make and Sale Plastic Bag Heat Sealers 40 Inches / 1000mm / 100cm Long Arm Hand Sealing Machines AFS-1000 From Factory In China. Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machine delivers a 40 inch sealing length with a 3mm or 5mm seal width, ideal for producing clean, consistent seals on poly bags, tubing, and laminated pouches in lab or production settings.Tested to specifications and fully functional with minor cosmetic blemishes from normal use.Steel construction and ivory finish provide durability and easy cleaning. An integrated blade trims approximately 0.75 inch from the seal line for neat bag presentation.Operation is simple-set the timer, position the bag, and press the bar;for best results hold briefly after the indicator light turns off.Dual voltage 120V or 220V at 50 or 60 Hz enhances deployment flexibility.Includes power cord.
Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machine are suitable for the low graded plastics and we do not recommend Impulse Type Hand Sealer Machine for High Density Polythene, for high graded plastics, the Hot Bar Hand Sealer Machines recommended.
Seal Width:3mm or 5mm
Sealing Thickness: 0.6mm X 2
Heat Time:4.2-4.5s
Can Make OEM Products
Color:Gray,Black, Blue,White
Max Sealing Length:40 Inches / 1000mm / 100cm
Seal Width: 3mm or 5mm
Sealing Thickness: 0.6mm X 2
Heat Time: 4.2-4.5s
Dimensions: 1300 X 190 X 320mm (L X W X H)
Weight: 19 Kg
Voltage: AC110V 60HZ or AC220V 50HZ
Power: 1400W
Material: Aluminum Frame
Plug: US Standard
Plastic Bag Heat Sealers 40 Inches / 1000mm / 100cm Long Arm Hand Sealing Machines Feature:
Seal Width:3mm or 5mm
Sealing Thickness: 0.6mm X 2
Heat Time:4.2-4.5s
Can Make OEM Products
Manual impulse sealers, tiny but mighty, offer a lot of bang for the buck. Some of the most popular packaging items you can see in use today are these machines. You can bundle a large range of items with an impulse sealer. Food, clothes, health care, and manufacturing are just a few applications.
Hand sealers are suitable for light-duty bagging activities and are used in many different sectors and companies.
Just your imagination and needs restrict the use of these flexible sealers. Impulse Sealer can be found to suit just about every function.
An impulse bag sealer works by heating thermoplastic materials such as polyethylene and polypropylene, which are simple, inexpensive, and lightweight.
A Hand Sealer or Heat Sealer makes use of heat and pressure to connect one thermoplastic to another similar thermoplastic.
A continuously heated die or sealing bar is used by the direct contact method of hand sealing to apply heat to a particular contact area or route to seal or weld the thermoplastics together.
For many applications, heat sealing is used, such as heat seal connectors, thermally activated adhesives, film media, plastic ports, or foil sealing.
To seal chips packets, etc a sealing of 5 mm width is used…i.e, The heating coil is 5mm in width and thus gives the chips packet a good sealing with a good finish look.
The machine has got CE,RoHS and CCC certificate.
The machine has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Plastic Bag Heat Sealers 40 Inches / 1000mm / 100cm Long Arm Hand Sealing Machines Specifications:
Color:Gray,Black, Blue,White
Max Sealing Length:40 Inches / 1000mm / 100cm
Seal Width: 3mm or 5mm
Sealing Thickness: 0.6mm X 2
Heat Time: 4.2-4.5s
Dimensions: 1300 X 190 X 320mm (L X W X H)
Weight: 19 Kg
Voltage: AC110V 60HZ or AC220V 50HZ
Power: 1400W
Material: Aluminum Frame
Plug: US Standard
Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machines are very suitable for sealing PE/PP bags, polypropylene (polyethylene bags), bubble bags, kraft paper bags, mural bags, tea bags, etc. Plastic bag heat sealing machines can be used in households, supermarkets, grocery stores, pharmacies, small factories, etc.
Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machines are high-quality and reliable sealing machine designed for various packaging needs. With its compact size and efficient performance, it is perfect for both home and professional use.
Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machines advanced impulse sealing technology, which ensures a strong and airtight seal every time. Whether you are sealing bags for food storage, packaging products for retail, or protecting important documents, this sealer will deliver consistent and professional results.
Plastic Bag Heat Sealers 40 Inches / 1000mm / 100cm Long Arm Hand Sealing Machines Package includes:
1 X AFS-1000 Plastic Bag Heat Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Sheets
1 X English Instruction Manual
AFS-1000 Plastic Bag Heat Sealer Weight:19 Kg
1 PCS/CTN

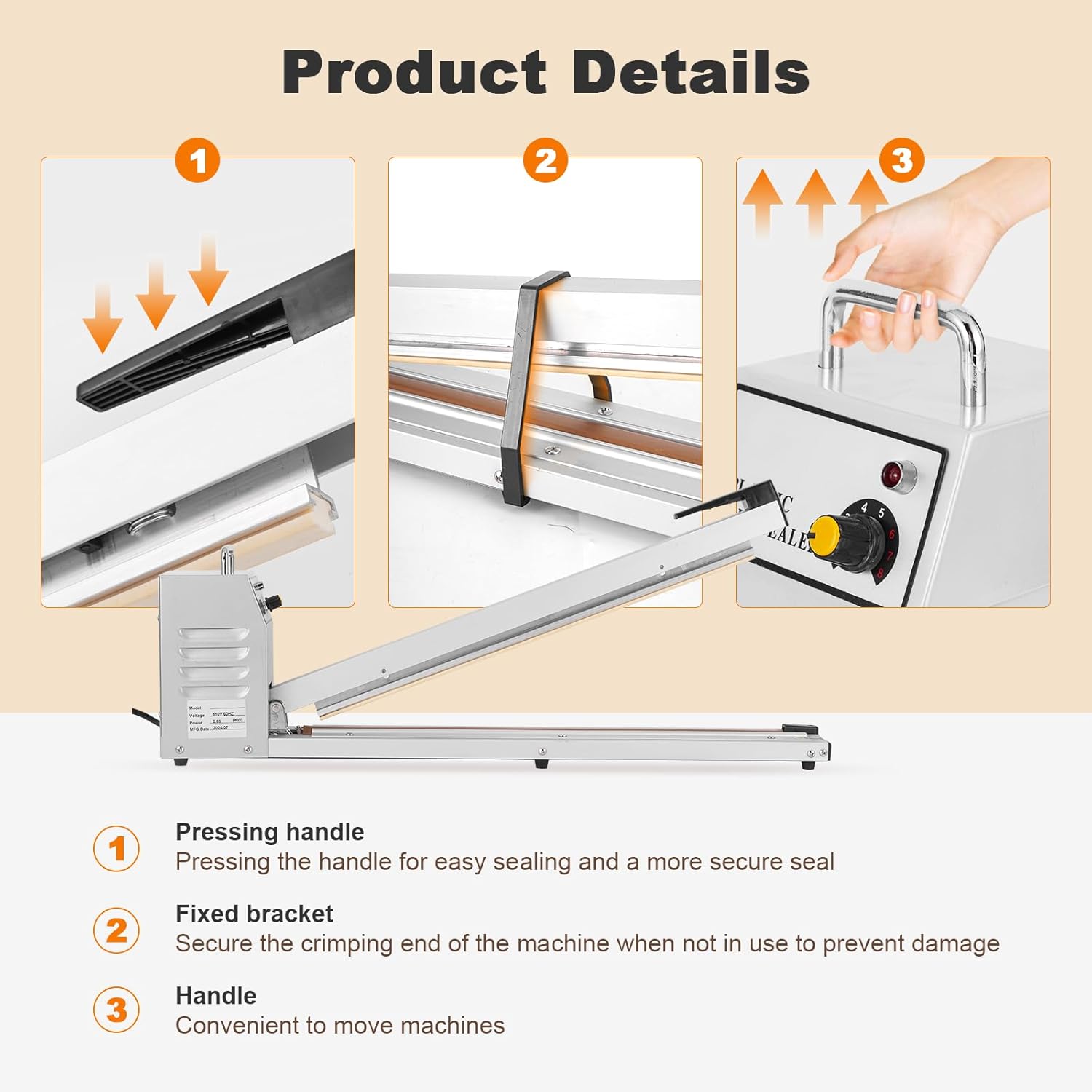

Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machine Usage:
Preparation : Place the open end of the plastic bag or pouch between the sealing bars of the machine.
Activation : Press down on the handle to lower the sealing bar onto the plastic. The heating element activates and heats up the sealing bar.
Sealing : The heat from the sealing bar melts the plastic, causing it to bond together. The duration of the heat application is controlled by the timer or control knob.
Cooling : After a few seconds, release the handle. The plastic will cool and solidify, creating a strong seal.
Removal : Once cooled, remove the sealed bag from the machine.
HS CODE:8422303090
Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machine Specifications:
Plastic Bag Heat Sealers AFS-Series Aluminum Frame Long Arm Hand Sealing Machine Specifications:
| Model. | AFS-450 | AFS-600 | AFS-750 | AFS-900 | AFS-1000 |
| Max.Sealing length |
18 Inch (450mm) |
24 Inch (600mm) |
30 Inch (750mm) |
36 Inch (900mm) |
40 Inch (1000mm) |
| Sealing Welding width | 3mm or 5mm | ||||
| Max.Sealing thickness | 0.3mm X 2 | ||||
| Heating time (sec) | 4.2-4.5s | ||||
| Adjustable heating Levels | 8 | ||||
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | ||||
| Impulse Power | 530W | 800W | 1000W | 1200W | 1400W |
| Dimensions (L X W X H)cm | 72X19X30 | 87X19X30 | 105X19X32 | 120X19X32 | 130X19X32 |
| Weight(kg) | 9.2 | 11 | 13 | 16 | 19 |
| Package | 1 Pcs/Carton | ||||
