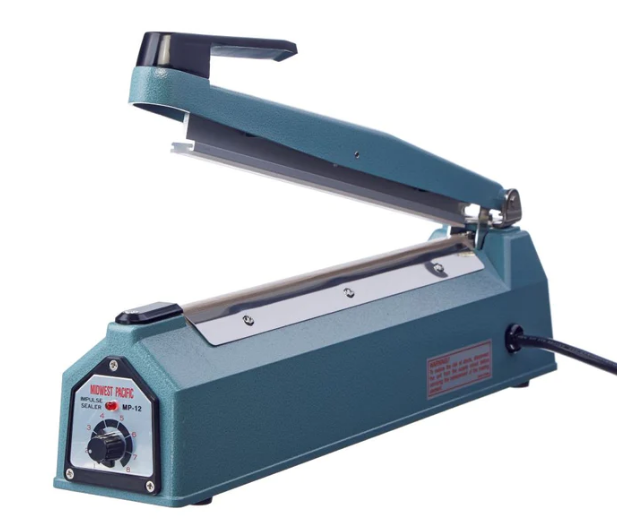

Hand Operated Impulse Sealer Plastic Sealing Machine AFS-100

Hand Operated Impulse Sealer Plastic Sealing Machine AFS-100

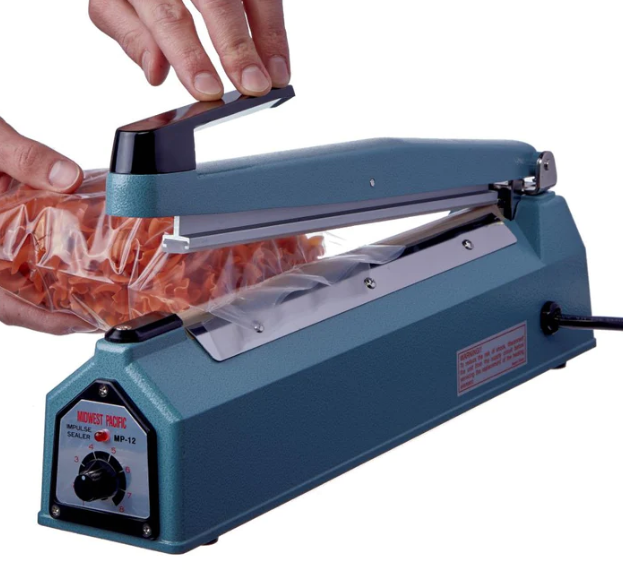

Make and Export Hand Operated Impulse Sealer AFS-100 Electric Make Aluminum Body Plastic Bag Sealing Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Hand Operated Impulse Sealer Aluminum Body AFS-Series Electric Make Plastic Bag Sealing Machine is a handy portable machine suitable to seal every kind of plastic films and widely used in the fields such as food and sweet stuff, drugs, native and special goods, electrical appliance parts etc.It is easy to use and economical sealing equipment for manufacturers, stores and service industry.  To operate, plug the cable into the power source, adjust the timer, put the plastic bag onto the sealing platform then push down and hold the handle.  The electronic circuit controls the heat automatically.Once the light indicator turns off, the power is cut off automatically.  1-2 seconds later, release the handle gently and the perfect seal is completed.If the break or damage appears on the seal, it is because of too much heal and this can be managed by reducing (turning timer anticlockwise) and if plastic bag sticks to the handle rubber then you lifted the handle too soon (less cooling time).After balancing required temperature settings, please keep it unchanged in every time use for that particular material.


Hand Operated Impulse Sealer AFS-100 Electric Make Aluminum Body Plastic Bag Sealing Machine Features:


Max Sealing Length: 100mm / 4 Inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.2mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 4.2 -4.5s
Material: Aluminum Body
Seals both PE and PP bags.
Comes with spare heating filament and heat resistant cloth.
Tabletop Impulse Heat Sealer, Important Notice,The light only turns on and the sealer is activated when the handle is pressed down!  The Metronic tabletop impulse sealer quickly seals different types of plastic packaging.
Safe and Easy to Use,Metronic impulse sealers are safe and easy to use.  The heating element in the impulse sealer is not constantly heated.  The light will turn on when the sealer is activated and will turn off once sealing is completed.
No Warmup Time Needed -No warmup or cooldown time is needed, safe, and simple to use.  Impulse sealers are very convenient and safe because they can be immediately used, and the chance of being burned is minimal.
Adjustable Timer Setting - Adjustable heat settings for the different materials.  For most applications, using the impulse heat sealer at a heat setting of 3 is sufficient.



Hand Operated Impulse Sealer AFS-100 Electric Make Aluminum Body Plastic Bag Sealing Machine Specification:


Model: AFS-100
Color: Gray,Black,Green,Blue,White or Red
Max Sealing Length:100mm / 4 Inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.2mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 4.2 -4.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 250W
Material: Aluminum Body
Plug Type: EU Plug/AU Plug
Dimensions: 235 X 70 X 170mm (L X W X H)
Hand Operated Impulse Sealer Aluminum Body AFS-Series Electric Make Plastic Bag Sealing Machine is great for low output shrink wrap operations. Impulse sealers are an affordable way to provide a professional seal and look to your products. Hand impulse sealers come in two varieties: flat wire and round wire.


Hand Operated Impulse Sealer AFS-100 Electric Make Aluminum Body Plastic Bag Sealing Machine Package list:


1 X  AFS-100 Hand Operated Impulse Sealer
2 X 4 Inches Heating Wires
2 X 4 Inches High Temperature Clothes
1 X English User Manual
AFS-100 Hand Operated Impulse Sealer  Weight:1.3 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:235X70X170mm
20 PCS/CTN
Carton Size:485X42X335mm
G.W/CTN:23Kg



HS CODE:8422303090
Hand Operated Impulse Sealer Aluminum Body AFS-Series Electric Make Plastic Bag Sealing Machine Specifications:



Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer Make and Export Hand Operated Impulse Sealer Aluminum Body AFS-Series Electric Make Plastic Bag Sealing Machine Specifications
Model. AFS-100 AFS-200 AFS -300 AFS -400 AFS-500
Impulse power 250W 300W 400W 500W 600W
Impulse voltage AC220V/50HZ or AC110V/60HZ
Max.sealing length 4 Inches 8 Inches 12 Inches 16 Inches 20 Inches
Sealing thickness 0.1-0.8mm
Sealing width 2mm 2mm / 3mm / 5mm / 8mm 3mm 3mm
Heating time 4.2-4.5S
Dimensions (L x W x H) Cm 23.5X7X17 32X7.5X17.3 44X8.5X18 55X9.5X18.3 64X10X18.5
Weight 1.3KGS 2.06KGS 3.5KGS 3.7KGS 4.5KGS
Package 1 Pcs/Color Box
QTY/CTN 20PCS 10PCS 10PCS 10PCS 10PCS
Carton Size(cm) 48.5X42X33.5 52X35X38 53.5X39.5X38 55X45X38 65X56X40
G.W/CTN(Kg) 23 17 19 24 30
QTY(sets)/20'GP 8100 4000 3350 2900 2000
QTY(sets)/40'GP 16300 8080 6800 5850 4000
QTY(sets)/40'HQ 20800 11000 9600 8100 5500

Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer Make and Export Hand Operated Impulse Sealer Aluminum Body AFS-Series Electric Make Plastic Bag Sealing Machine
Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer Make and Export Hand Operated Impulse Sealer Aluminum Body AFS-Series Electric Make Plastic Bag Sealing Machine
