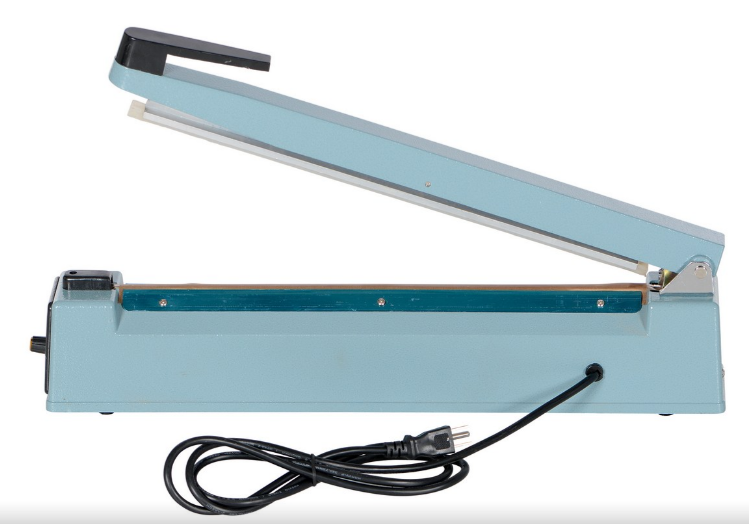

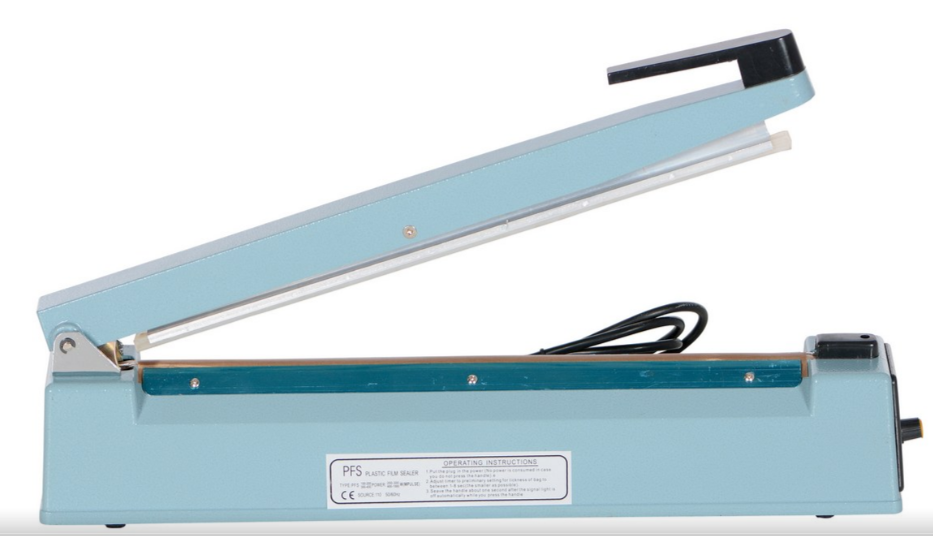

4 Inches Hand Impulse Sealer Plastic Sealing Machine AFS-100
Make and Wholesale Hand Impulse Sealer AFS-100 Manual Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Sealing Machine By Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer.Hand Impulse Sealer Aluminum Case AFS-Series Manual Make Plastic Bag Film Heat Sealing Machine suitable for all kinds of plastic films, laminated films and aluminium-plastic film sealing; can be widely used in food, souvenirs, candy, tea, medicine, hardware and other industries. It`s most convenient and economical sealing equipment for shops, families and factories.
Hand Impulse Sealer Aluminum Case AFS-Series Manual Make Plastic Bag Film Heat Sealing Machine seals for almost any sealable plastic films and bags such as polyethylene (PE), polypropylene (PP), polyvinylchloride (PVC), polyurethane, polyolefin, pliofilm, Kel-F, polyflex, mylar, P.V.A, Tivac, Saran, Nylo etc. Wire replacement parts come with sealer. Flat wire sealer is commonly used for poly bags or tubing. Round wire sealer is recommended for sealing and cutting shrink film, tubing, or bags. It provides cutting and sealing in one step, no extra cutter is needed. It produces a seal right at the edge without a lip.
Hand Impulse Sealer AFS-100 Manual Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Sealing Machine Features:
Max Sealing Length: 100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.2mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 4.2 -4.5s
Material: Aluminum Body
Can do products For OEM
Use a lower number in case seal burns through.
Raise to higher number when seal isn’t tight.
Should bag stick to silicon rubber, you did not rice enough cooling time.
Once you set the time, no need to reset as the machine will remain constant and unchanged.
No need to remove plug from socket as machine will not operate unit until handle is lowered.No power is consumed.
Hand Impulse Sealer AFS-100 Manual Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Sealing Machine Specification:
Model: AFS-100
Color: Gray,Black,Green,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.2mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 4.2 -4.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 250W
Material: Aluminum Body
Plug Type: EU Plug/AU Plug
Dimensions: 235 X 70 X 170mm (L X W X H)
Plug cord into outlet.No switch necessary.Machine will operate only when arm is depressed.Regulate the timer according to thickness of material to be sealed.Use a higher-number for thicker material pull handle down.Sealing takes place when light is on.Leave down for additional second after light goes off for a better seal.
Hand Impulse Sealer AFS-100 Manual Make 100mm / 4 inches / 10cm Wide Plastic Bag Film Heat Sealing Machine Package list:
1 X AFS-100 Hand Impulse Sealer
2 X 4 Inches Heating Wires
2 X 4 Inches High Temperature Clothes
1 X English User Manual
AFS-100 Hand Impulse Sealer Weight:1.3 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:235X70X170mm
20 PCS/CTN
Carton Size:485X42X335mm
G.W/CTN:23Kg
HS CODE:8422303090
Hand Impulse Sealer Aluminum Case AFS-Series Manual Make Plastic Bag Film Heat Sealing Machine Specifications:
| Model | AFS-100 | AFS-200 | AFS -300 | AFS -400 | AFS-500 |
| Impulse power | 250W | 300W | 400W | 500W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | ||||
| Max.sealing length | 4 Imches | 8 Imches | 12 Imches | 16 Imches | 20 Imches |
| Sealing thickness | 0.1-0.8mm | ||||
| Sealing width | 2mm | 2mm / 3mm / 5mm / 8mm | 3mm | 3mm | |
| Heating time | 4.2-4.5S | ||||
| Dimensions (L x W x H) Cm | 23.5X7X17 | 32X7.5X17.3 | 44X8.5X18 | 55X9.5X18.3 | 64X10X18.5 |
| Weight | 1.3KGS | 2.06KGS | 3.5KGS | 3.7KGS | 4.5KGS |
| Package | 1 Pcs/Color Box | ||||
| QTY/CTN | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 48.5X42X33.5 | 52X35X38 | 53.5X39.5X38 | 55X45X38 | 65X56X40 |
| G.W/CTN(Kg) | 23 | 17 | 19 | 24 | 30 |
| QTY(sets)/20'GP | 8100 | 4000 | 3350 | 2900 | 2000 |
| QTY(sets)/40'GP | 16300 | 8080 | 6800 | 5850 | 4000 |
| QTY(sets)/40'HQ | 20800 | 11000 | 9600 | 8100 | 5500 |
