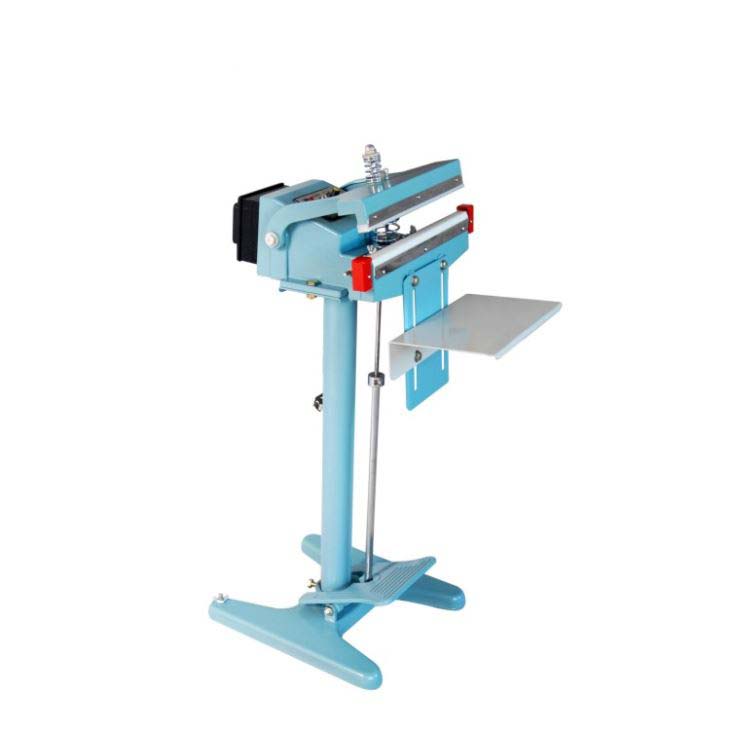

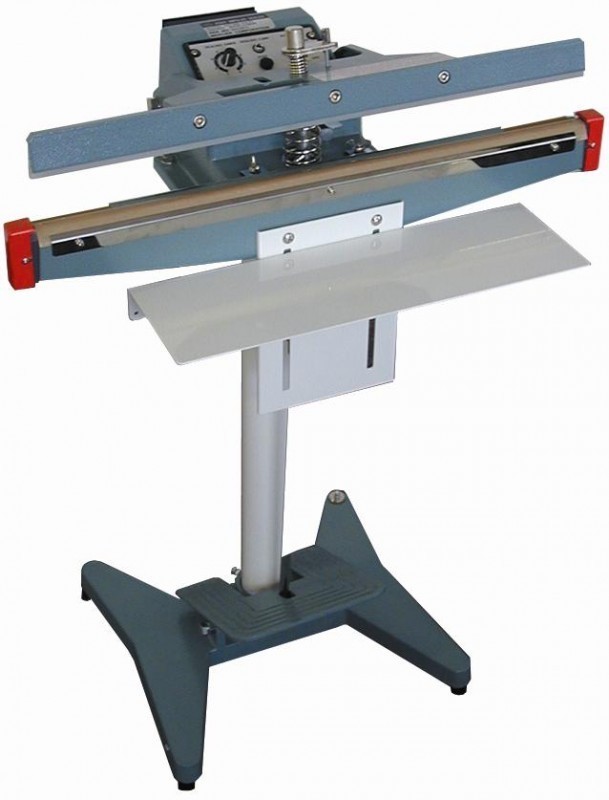

Foot Operated Impulse Sealer Coding Sealing Machine PFS-650
Foot Operated Impulse Sealer With Coding Date PFS-650 Foot Pedal 26 Inches / 650 mm / 65 cm Wide Sealing Machine From Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China. Foot Operated Impulse Sealer With Coding Date PFS-Series Foot Pedal Sealing Machine is recommended for light to medium duty operations. They can seal various kinds of materials, such as BOPP, PE, Laminations, and Cellophane.This type of unit is activated by pushing on a pedal, and the machine will operate for the preset length of time.These devices are also very economical, and produce uniform, repeatable results.
Foot Operated Impulse Sealer With Coding Date PFS-Series Foot Pedal Sealing Machine is widely applied to seal all kinds of plastics films, compound films and aluminum-plastic fil. They are most convenient and economical sealing equipments for shops,families and factories.
Foot sealers are ideal for high volume poly bag and other thermoplastic sealing. Capable of sealing 15-20 bags per minute, foot sealers keep both hands free for quicker and more accurate sealing.
Foot Operated Impulse Sealer With Coding Date PFS-650 Foot Pedal 26 Inches / 650 mm / 65 cm Wide Sealing Machine Features:
Maximum sealing length: 650 mm / 26 Inches / 65 cmMaximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Foot pedal operated bag sealers are all free-standing and ideal for high-volume bag sealing
Impulse sealers provide instant heat and feature a standard seal width of 2mm/3mm/5mm/8mm/10mm and trim & seal element available
Available in 14 inches, 18 inches,26 inches and 32 Inches models
Impulse sealing - no warm up time needed
Plug-in electronic timer for variable control
Single or double sealing switch selector
Heavy duty all metal construction
Sits on rectangular stand for stability
Adjustable work table height
Optional: Taller stand and tension rod available adding 10" height
Manufacturer spare parts kit includes: 2 heating elements
Foot Operated Impulse Sealer With Coding Date PFS-650 Foot Pedal 26 Inches / 650 mm / 65 cm Wide Sealing Machine Specification:
Model: PFS-650
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1500 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700X570X880mm
Net Weight:24Kg
Material:Die-cast Aluminium Alloy
Foot Operated Impulse Sealer With Coding Date PFS-650 Foot Pedal 26 Inches / 650 mm / 65 cm Wide Sealing Machine Package List:
1 X PFS-650 Foot Operated Impulse Sealer With Coding Date
2 X Extra Heating Elements
2 X Extra Teflon Tapes
Model: PFS-650
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1500 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700X570X880mm
Net Weight:24Kg
Material:Die-cast Aluminium Alloy
Foot Operated Impulse Sealer With Coding Date PFS-Series Foot Pedal Sealing Machine is ideal for sealing large heavy bags. By having a foot control, the hands are free to feed the machine. It is like having an extra hand.Units come complete with pedestal, stand, adjustable working table and adjustable foot control. Optional Hot Stamp Imprinter.
Foot Operated Impulse Sealer With Coding Date PFS-650 Foot Pedal 26 Inches / 650 mm / 65 cm Wide Sealing Machine Package List:
1 X PFS-650 Foot Operated Impulse Sealer With Coding Date
2 X Extra Heating Elements
2 X Extra Teflon Tapes
1 X English User Manual
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:24Kg
HS CODE:8422303090
Foot Operated Impulse Sealer With Coding Date PFS-Series Foot Pedal Sealing Machine Specification:
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:24Kg
HS CODE:8422303090
Foot Operated Impulse Sealer With Coding Date PFS-Series Foot Pedal Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length | 14 Inch/35cm | 18 Inch/45cm | 26 Inch/65cm | 32 Inch/80cm |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
