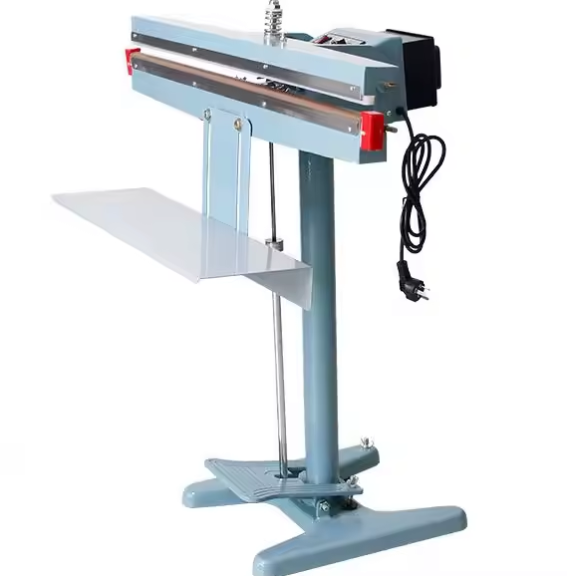

Impulse Pedal Sealing Machine Foot Operated Sealer PFS-350D
Make and Supply Impulse Pedal Sealing Machine 350mm / 14 Inches / 35cm Wide Foot Operated Plastic Bag Heat Sealer PFS-350D In China From Factory.Impulse Pedal Sealing Machine PFS-D-Series Foot Operated Plastic Bag Heat Sealer is specially designed to seal a variety of pouch types including silver foil, laminated, all type of plastics i.e. PP, LD liner and multi-layer packaging materials, ensuring a secure, leak-proof, and professional seal that preserves product freshness and protects contents from environmental exposure.Hands-Free Operation- Equipped with a foot-operated pedal mechanism that allows users to keep both hands free for positioning and handling the pouch, enhancing workflow efficiency and reducing strain during repetitive sealing tasks, especially in high-volume environments.Generous 14-Inch Sealing Width- Offers a wide 14-inch sealing bar that easily accommodates medium to large-sized pouches, making it suitable for packaging a broad range of items such as bulk food products, pharmaceutical supplies, or retail merchandise.Impulse Sealing Technology- This machine Utilizes impulse heating, which activates only during the sealing process, minimizing electricity usage and providing a safer, energy-efficient sealing solution that delivers consistent results with every use.Heavy-Duty Build Quality- Manufactured with a rugged and durable metal body structure that is built to endure continuous operation in industrial and commercial settings without compromising on sealing performance or stability.
Maximum bag sealing thickness:0.8mm X 2
Sealing Width 10 mm
Heat Time: 0.2 -2.5s
Impulse Pedal Sealing Machine 350mm / 14 Inches / 35cm Wide Foot Operated Plastic Bag Heat Sealer Features:
Maximum sealing length: 350mm / 14 Inches / 35cmMaximum bag sealing thickness:0.8mm X 2
Sealing Width 10 mm
Heat Time: 0.2 -2.5s
Work on Polyethylene, Polypropylene & Polyolefine Compounds plastic film.
Sturdy aluminum construction with support shelf for package.
Models with sealing length 300 MM - 650 MM available on request
350 MM sealing length, 8 MM sealing width.
Simple to use, no operator training requires.
Impulse sealing system offer uniform, neat and strong seals.
No warm-up time necessary.
Timer for sealing control.

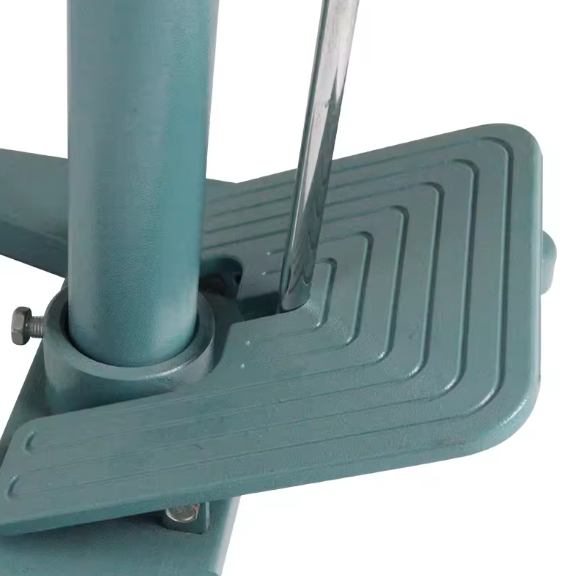

Adjustable pedal height.
Adjustable work table height.
The Heat Sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
The Heat Sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Impulse Pedal Sealing Machine 350mm / 14 Inches / 35cm Wide Foot Operated Plastic Bag Heat Sealer Specification:
Model:PFS-350D
Maximum sealing length: 350 mm / 14 Inches / 35 cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450X540X880mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
Impulse Pedal Sealing Machine 350mm / 14 Inches / 35cm Wide Foot Operated Plastic Bag Heat Sealer Package List:
1 X PFS-350D Impulse Pedal Sealing Machine
2 X Extra Heating Wires
2 X Extra Teflon Clothes
Model:PFS-350D
Maximum sealing length: 350 mm / 14 Inches / 35 cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450X540X880mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
IImpulse Pedal Sealing Machine

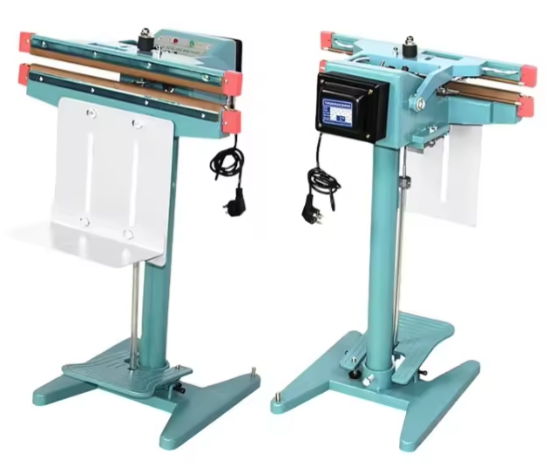

Pedal Double-Side Heating Sealer machine for Plastic Bag
Impulse pedal sealing machine is suitable plastic bags sealing, such as PE, PVC, PP film or bags. The sealing height is adjustable up and down. It is easy to operate and high efficiency.
Features adjustable timer and temperature control knobs that enable the operator to fine-tune the sealing cycle based on the thickness, texture, and type of the pouch material for optimal seal strength.
It is designed to heat up rapidly and cool down quickly between seals, ensuring smooth, uninterrupted operation and boosting overall productivity in busy packaging lines.
Impulse Pedal Sealing Machine 350mm / 14 Inches / 35cm Wide Foot Operated Plastic Bag Heat Sealer Package List:
1 X PFS-350D Impulse Pedal Sealing Machine
2 X Extra Heating Wires
2 X Extra Teflon Clothes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:19Kg
HS CODE:8422303090
Impulse Pedal Sealing Machine PFS-D-Series Foot Operated Plastic Bag Heat Sealer Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:19Kg
HS CODE:8422303090
Impulse Pedal Sealing Machine PFS-D-Series Foot Operated Plastic Bag Heat Sealer Specification:
| Model. | PFS-300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Max.Sealing Length |
12 Inch (300mm) |
14 Inch (350mm) |
18 Inch (450mm) |
26 Inch (650mm) |
| Sealing Width | 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
