Foot-Operated Double Sides Heating Impulse Sealers FSP-650D
Sale Foot-Operated Double Sides Heating Impulse Sealers 26 Inches / 650 mm / 65cm Wide Foot Pedal Sealing Machine FSP-650D From Factory In China.Foot-Operated Double Sides Heating Impulse Sealers Foot Pedal PFS-Series Foot Pedal Sealing Machine has an obstruction free throat allowing the use of roll-dispensed material to pack and seal.Can be adjusted to a 30-degree angle making it perfect for sealing liquids, powders, etc.Equipped with a sliding blade for cutting excess material a quarter inch from seal. Also, good for sealing roll bags.
Foot pedal leaves operator's hands available to load and unload. Dual 5mm heating elements produce strong, wide seals on up to 12 Mil bags
Foot Operated Impulse Sealers use standard 110 or 220 volt power.For use with polyethylene, polypropylene and metallic bags.Foot-Operated Impulse Sealers deliver reliable, high-quality seals with every press.Designed for medium- to high-volume packaging environments, these sealers let you keep both hands on your product while controlling the sealing cycle with your foot—boosting efficiency and consistency across your operation.
Maximum Bag Sealing Thickness:1mm X 2
Sealing Width 5mm
Heat Time: 0.2 -2.5 s

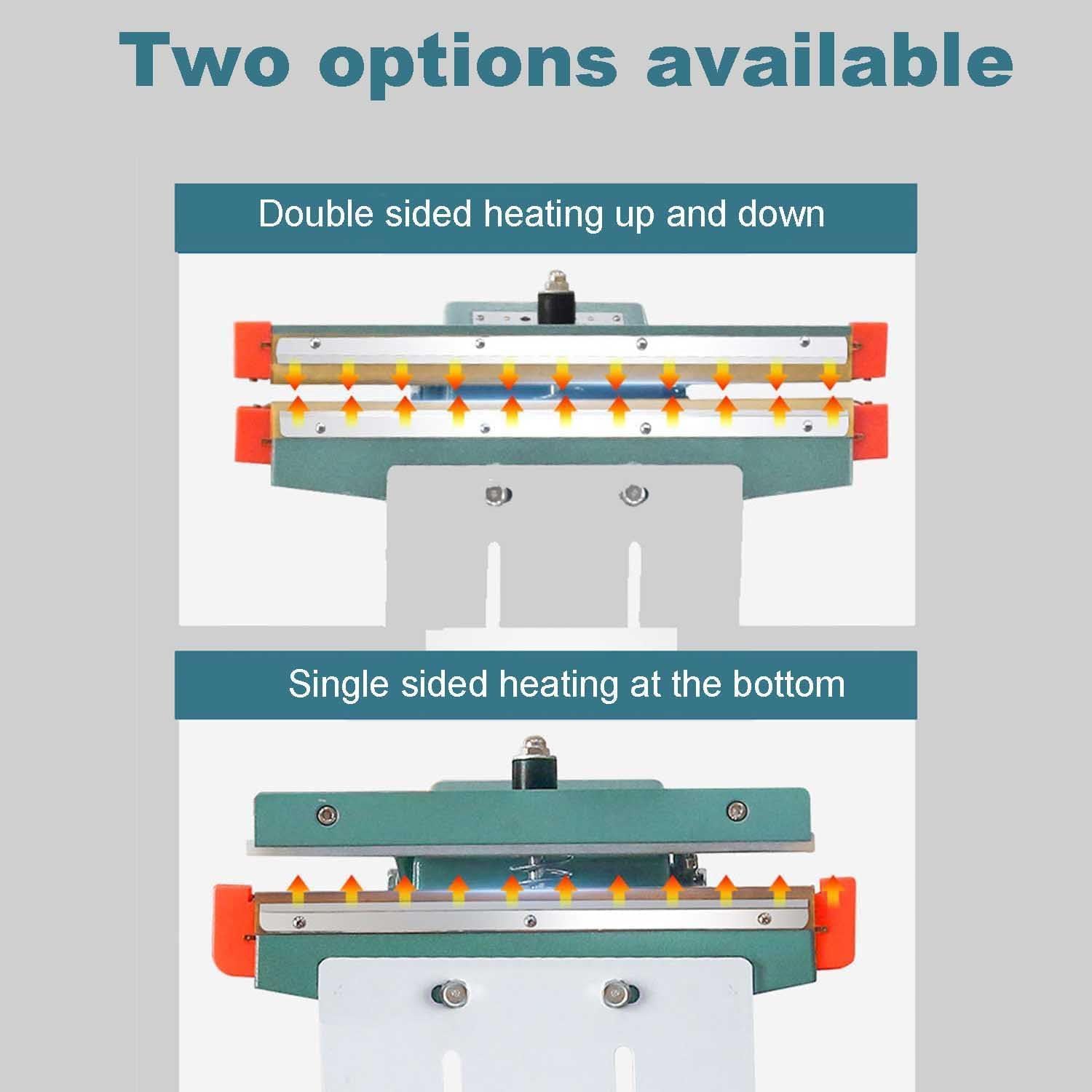

Double element sealers feature a heating element in both the upper and lower jaws and are ideal for sealing very thick polyethylene or polypropylene bags
Foot pedal operated bag sealers are all free-standing and ideal for high-volume bag sealing
Available in 12″,14″, 18″ and 26″ models
OEM-compatible parts for reliable fit and function
Minimized downtime with pre-assembled kits
Ideal for in-house maintenance teams or third-party service providers
Supports extended equipment lifespan and consistent sealing quality
Built for Daily Use: Our sealers are engineered for durability, making them a trusted choice in busy packaging environments where reliability is non-negotiable.
Hands-Free Efficiency: We help streamline your workflow with foot-operated designs that free up both hands for faster, more accurate bag positioning.
Precision Sealing Every Time: Adjustable heat settings and impulse sealing ensure strong, clean seals across a wide range of materials and bag sizes.
Foot pedal leaves operator's hands available to load and unload
Dual 5mm heating elements produce strong, wide seals on up to 1mm bags
Foot Operated Impulse Sealers use standard 110 volt power
Foot-Operated Double Sides Heating Impulse Sealers 26 Inches / 650 mm / 65cm Wide Foot Pedal Sealing Machine Features:
Maximum Sealing Length:26 Inches / 650mm / 65cmMaximum Bag Sealing Thickness:1mm X 2
Sealing Width 5mm
Heat Time: 0.2 -2.5 s
Double element sealers feature a heating element in both the upper and lower jaws and are ideal for sealing very thick polyethylene or polypropylene bags
Foot pedal operated bag sealers are all free-standing and ideal for high-volume bag sealing
Available in 12″,14″, 18″ and 26″ models
OEM-compatible parts for reliable fit and function
Minimized downtime with pre-assembled kits
Ideal for in-house maintenance teams or third-party service providers
Supports extended equipment lifespan and consistent sealing quality
Built for Daily Use: Our sealers are engineered for durability, making them a trusted choice in busy packaging environments where reliability is non-negotiable.
Hands-Free Efficiency: We help streamline your workflow with foot-operated designs that free up both hands for faster, more accurate bag positioning.
Precision Sealing Every Time: Adjustable heat settings and impulse sealing ensure strong, clean seals across a wide range of materials and bag sizes.
Foot pedal leaves operator's hands available to load and unload
Dual 5mm heating elements produce strong, wide seals on up to 1mm bags
Foot Operated Impulse Sealers use standard 110 volt power
For use with polyethylene, polypropylene and metallic bags
Foot pedal leaves operator's hands available to load and unload.
For use with polyethylene, polypropylene and metallic bags.
Service kits containing 2 heating elements and 2 PTFE glass cloth tape strips are available for each sealer.
Foot pedal leaves operator's hands available to load and unload.
For use with polyethylene, polypropylene and metallic bags.
Service kits containing 2 heating elements and 2 PTFE glass cloth tape strips are available for each sealer.
Foot-Operated Double Sides Heating Impulse Sealers 26 Inches / 650 mm / 65cm Wide Foot Pedal Sealing Machine Specification:
Model: PFS-650D
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 5mm
Heating time: 0.2-2.5 s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions (L X W X H) (mm): 700 X 570 X 880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy

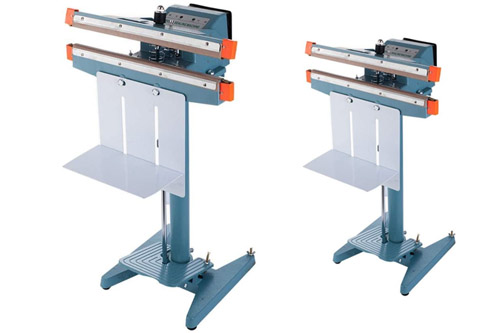

Foot-Operated Double Sides Heating Impulse Sealers Foot Pedal PFS-Series Foot Pedal Sealing Machines are self-standing machines, which are easily activated by lightly stepping on a manual foot pedal located at the base of the pedestal. Seal widths are 5mm,8mm,and 10mm. For very heavy bags,They are available. These machines are similar, but have sealing wires on both the top and bottom jaws to seal the thickest of materials.making standing operation more comfortable and productive. Mechanical, foot operated impulse sealers.. HI Series has bottom heating element. HIW Series has bottom and top heating elements for heavyweight bags. Can create a 5mm,8mm,and 10mm. seal depending on model. Self-standing so no loss of counter space. Easy to assemble.. Requires operator foot pressure to initiate the cycle.
Foot-Operated Double Sides Heating Impulse Sealers 26 Inches / 650 mm / 65cm Wide Foot Pedal Sealing Machine Package List:
1 X PFS-650D Foot-Operated Double Sides Heating Impulse Sealer
2 X Heating Elements
2 X PTFE Glass Cloth Tape Strips
Model: PFS-650D
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 5mm
Heating time: 0.2-2.5 s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions (L X W X H) (mm): 700 X 570 X 880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Foot-Operated Double Sides Heating Impulse Sealers Foot Pedal PFS-Series Foot Pedal Sealing Machines are self-standing machines, which are easily activated by lightly stepping on a manual foot pedal located at the base of the pedestal. Seal widths are 5mm,8mm,and 10mm. For very heavy bags,They are available. These machines are similar, but have sealing wires on both the top and bottom jaws to seal the thickest of materials.making standing operation more comfortable and productive. Mechanical, foot operated impulse sealers.. HI Series has bottom heating element. HIW Series has bottom and top heating elements for heavyweight bags. Can create a 5mm,8mm,and 10mm. seal depending on model. Self-standing so no loss of counter space. Easy to assemble.. Requires operator foot pressure to initiate the cycle.
Foot-Operated Double Sides Heating Impulse Sealers 26 Inches / 650 mm / 65cm Wide Foot Pedal Sealing Machine Package List:
1 X PFS-650D Foot-Operated Double Sides Heating Impulse Sealer
2 X Heating Elements
2 X PTFE Glass Cloth Tape Strips
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:24 Kg
HS CODE:8422303090
Foot-Operated Double Sides Heating Impulse Sealers Foot Pedal PFS-Series Foot Pedal Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:24 Kg
HS CODE:8422303090
Foot-Operated Double Sides Heating Impulse Sealers Foot Pedal PFS-Series Foot Pedal Sealing Machine Specification:
| Model. | PFS-300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Max.Sealing Length |
12 Inches (300mm) |
14 Inches (350mm) |
18 Inches (450mm) |
26 Inches (650mm) |
| Sealing Width | 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
