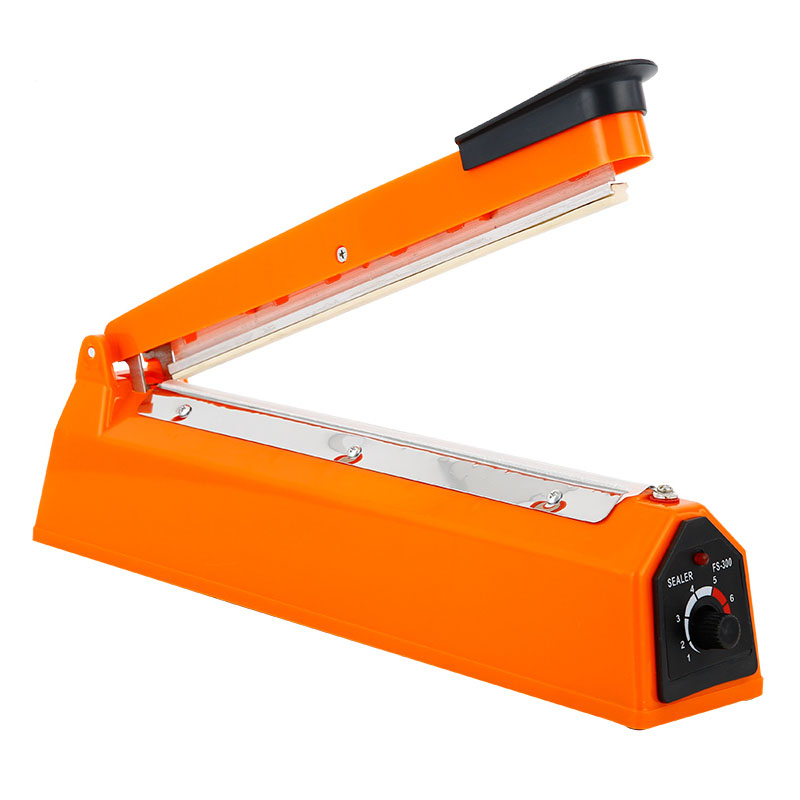

Impulse Plastic PE Bag Heat Sealer Packing Machine PFS-200
Production and Supply Manual 8"/200 mm/8 inch/20 cm Wide Plastic ABS Shell Plastic Bag Sealer Impulse Sealer PFS-200 High Quality Food Sealer Bag Packing Machine For PP and PE Plastic Bag Sealer From Zhejiang Tianyu industry Co. Ltd Factory.Plastic ABS Shell Plastic Bag Sealer Impulse Sealer High Quality Food Sealer Bag Packing Machine For PP and PE Plastic Bag Sealer is For Sealing Plastic Bags made with any Thermoplastic Material,quick and easy to use, with very tidy.it can easily be used to envelope all kinds of candy,food,general merchandise,stationery and medicin.
Manual 8"/200 mm/8 inch/20 cm Wide Plastic ABS Shell Plastic Bag Sealer Impulse Sealer PFS-200 High Quality Food Sealer Bag Packing Machine Features:
Power:300W.
Source: 110V/240V, 50/60Hz.
Item Weight: about 1.26kg .
Sealing Width: 200mmx2mm
Sealing Thickness: 0.01-0.6mm
Precision electronic control circuit.
Portable and compact size.
Plastic ABS case.
Impulse sealing for power-saving.
Adjustable timer creates perfect seals for varying bag thickness.
Labor-saving design with long handle.
Low power consumption
- Fast Heating Power-Saving Impulse Sealer Machine.
- Keep sealing edges clean - prolong the life of the heating element.
- Clean with a dry cloth or alcohol.
- Damage to the sealing rubber will lessen the effectiveness of the sealer.
- For PE/PP bags used to package food products
- Impulse sealing for power saving
- Precision electric control circuit
- Adjustable Temperature
- Secure Tight Seal
- Sealing Length: 8"/200 mm/8 inch/20 cm Length
- Source: 110V / 60Hz,220V/50Hz
- Power: 300W
- Max Length for seal: 200mm
- Width for seal: 2 mm
- Max thickness for seal: 0.2mm (Max 6 Mil for PE, max 4 Mil for PP)
- Heat Time: 0.2 -1.5s
- Single phase variable temperature control
- CE and CCC Certified
- Suitable for: PE/PP Bags
- Impluse Sealing for: Power-saving
- Circuit: Precision Electronic Control
- Color: Blue
- Dimensions: 33X10X17.2 cm (L x W x H)
- Weight: 1260g
- Size: 8"/200 mm/8 inch/20 cm
- Plug Type: US Standard
- Material: Plastic ABS
Manual 8"/200 mm/8 inch/20 cm Wide Plastic ABS Shell Plastic Bag Sealer Impulse Sealer PFS-200 High Quality Food Sealer Bag Packing Machine Packing List:
- 1 x PFS-200 Manual Plastic ABS Shell Plastic Bag Sealer Impulse Sealer Packing Machine
- 1x 8"/200 mm/8 inch/20 cm Long Extra Spare Teflon sheet
- 1x 8"/200 mm/8 inch/20 cm Long Extra Spare Heater Element
- 1x English User Manual
- 1 PCS/Color Box
- Color box Size:33X10X17.2 cm
- PFS-200 Manual Plastic ABS Shell Plastic Bag Sealer Impulse Sealer Packing Machine Weight: 1.26Kg
- 10 PCS/CTN
- Carton Size:51X34.5X36 cm
- G.W/CTN:13.38Kg
Manual Plastic ABS Shell Plastic Bag Sealer Impulse Sealer High Quality Food Sealer Bag Packing Machine Users Manual:
- Simply connect the power cord to the outlet and adjust the heating time based on the seal thickness of the material.
- Place the plastic bag on top, then press the handle, the LED indicator lights up and the machine will control the heating time itself.
- When the LED is off, the power is automatically disconnected. After 1-2 seconds, the handle is removed and the seal is completed.
- The Led indicator lights up when the machine is sealed, and it does not illuminate if you just connect it to the outlet.
- If damage occurs during sealing, it is because the heating time is too long, then shorten the heating time by turning the timer knob counterclockwise.
- If an unsafe seal occurs, it is because the heating time is too short, then extend the heating time by turning the timer knob clockwise
- If the plastic bag is sticky to the machine, it is because the cooling time is not long enough. Please extend the cooling time after the LED is turned off and keep it for a long time to release the handle.
- If the heating time is adjusted, do not make any changes during sealing or continuous sealing.
- You can connect the power cord to the outlet at any time, as it will not consume any power if it is not sealed.
Model No. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
Max sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
Max sealing width | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2-3mm | 2-3mm |
Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
