Foot Pedal Impulse Sealer 32 Inches Sealing Machine PFS-800
Product Details

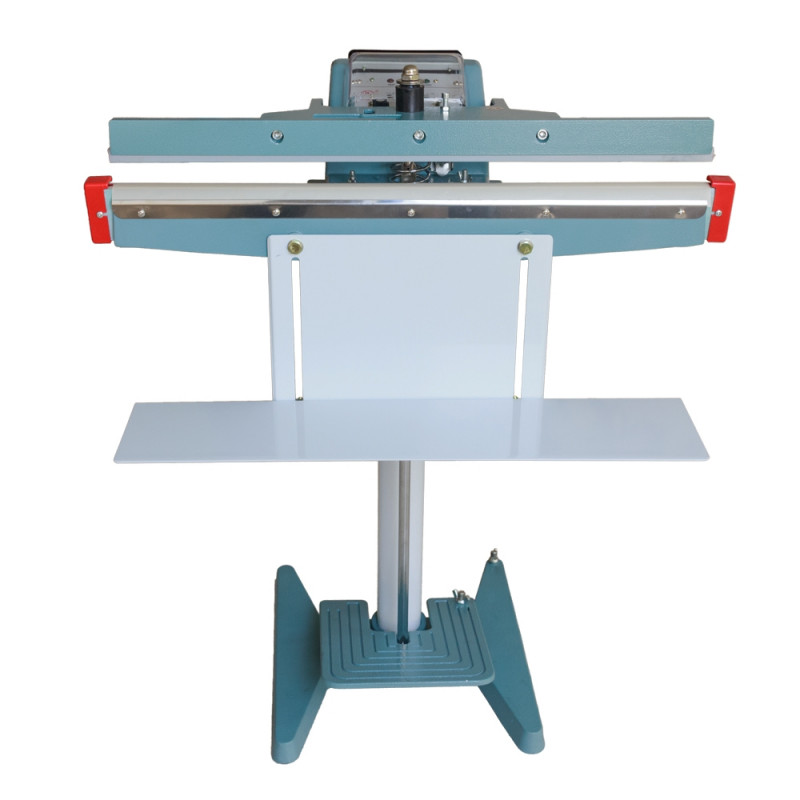

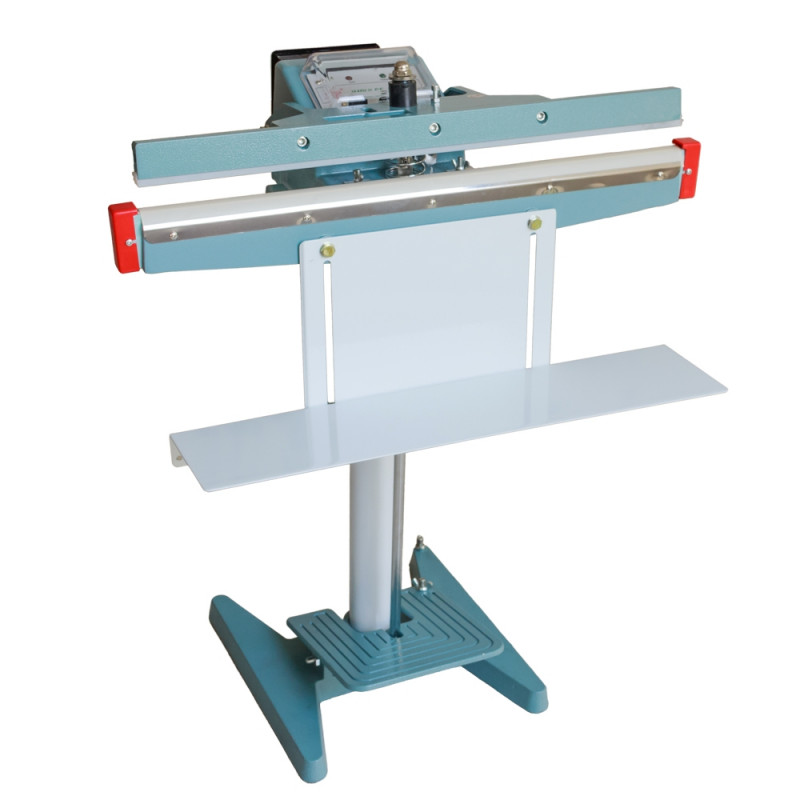

Made and Export Foot Pedal Impulse Sealer PFS-800 Foot Operated 32 Inches / 800 mm / 80 cm Wide Sealing Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Foot Pedal Impulse Sealer PFS-Series Foot Operated Sealing Machine is activated by a foot pedal, both hands are free to handle package and product.Ideal for a variety of light and medium-duty bag-sealing tasks.The sealing process is simple: Place poly bag between seal bars, depress the pedal for a few seconds and then release.The seal process ends automatically once the preset seal time is reached.
Foot Pedal Impulse Sealer PFS-Series Foot Operated Sealing Machine is ideal for high volume poly bags and other thermoplastic sealing applications.Capable of sealing 15-20 bags per minute while allowing you to keep both hands free for quicker and more accurate sealing. Features a 32-inch seal length and a 5mm wide seal.includes a 26-inch pedestal, a 2-inch base, an adjustable worktable, and an adjustable foot control.
Foot Pedal Impulse Sealer PFS-800 Foot Operated 32 Inches / 800 mm / 80 cm Wide Sealing Machine Features:
Maximum Sealing Length: 32 Inches / 800 mm / 80 cmMaximum Bag Sealing Thickness: 0.8 mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Impulse sealing - no warm up time needed
Plug-in electronic timer for variable control
Single or double sealing switch selector
Heavy duty all metal construction
Sits on rectangular stand for stability
Adjustable work table height
PFS-Series Foot Operated Sealing Machine are ideal for high volume poly bag and other thermoplastic sealing.
Thermoplastic materials up to 20mil in total thickness.
Single/double sealing switch selector provides the
Single/double sealing switch selector provides the
sealer with the flexibility to seal different types of materials.
The sealer allows you to keep both hands
The sealer allows you to keep both hands
free for quicker and more accurate sealing.
Optional-Taller stand and tension rod available adding 10" height
Spare parts kit includes: 2 heating elements
Foot Pedal Impulse Sealer PFS-800 Foot Operated 32 Inches / 800 mm / 80 cm Wide Sealing Machine Specification:
Model:PFS-800
Maximum sealing length:32 Inches / 800 mm / 80 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1800 W
Welding time: Infinitely Adjustable
External Dimensions (L X W X H) (mm): 855 X 570 X 880 mm
Net Weight:29 Kg
Material: Die-cast Aluminium Alloy
Foot Pedal Impulse Sealer PFS-800 Foot Operated 32 Inches / 800 mm / 80 cm Wide Sealing Machine Package List:
1 X PFS-800 Foot Pedal Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
Model:PFS-800
Maximum sealing length:32 Inches / 800 mm / 80 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1800 W
Welding time: Infinitely Adjustable
External Dimensions (L X W X H) (mm): 855 X 570 X 880 mm
Net Weight:29 Kg
Material: Die-cast Aluminium Alloy
Do not use the sealer if the power cord, plug or any other parts are damaged. Be sure not to allow,the power cord to drape into your work area. Check that all parts are operating properly and perform the intended functions.other conditions that may affect the operation.
Foot Pedal Impulse Sealer PFS-800 Foot Operated 32 Inches / 800 mm / 80 cm Wide Sealing Machine Package List:
1 X PFS-800 Foot Pedal Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 PCS/CTN
Carton Size: 800 X 530 X 250 mm
Net Weight:29 Kg
HS CODE:8422303090
Foot Pedal Impulse Sealer PFS-Series Foot Operated Sealing Machine Specification:
1 PCS/CTN
Carton Size: 800 X 530 X 250 mm
Net Weight:29 Kg
HS CODE:8422303090
Foot Pedal Impulse Sealer PFS-Series Foot Operated Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length | 14 Inches/350mm | 18 Inches/450mm | 26 Inches/650mm | 32 Inches/800mm |
| Sealing Width | 2 mm /3 mm/5 mm/8 mm/10 mm | |||
| Max.sealing thickness | 0.8 mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions(mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
