Foot Operated Impulse Sealers Heat Sealing Machines PFS-450
Product Details
Make and Supply Foot Operated Impulse Sealer PFS-450 Foot Pedal Heat 450 mm / 45 cm / 18 Inches Wide Sealing Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China. Foot Operated Impulse Sealer PFS-Series Foot Pedal Foot Pedal Heat Sealing Machine divided into two types pedal instant heating type and pedal direct heating type.The instant heating type is suitable for sealing and bag making of polyvinyl chloride, polyethylene and other materials, and the direct heating type is suitable for cellophane, aluminum foil and copper.Sealing and bag-making of foil, tin foil, biaxially stretched polystyrene, polystyrene paper composites, and hot stamping on the seal at the same time as delivery and storage date, etc.

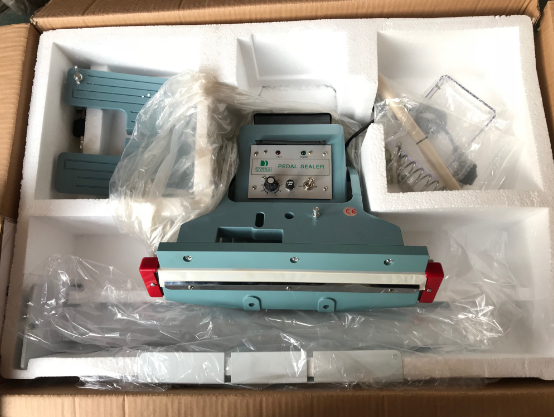

Foot Operated Impulse Sealer PFS-Series Foot Pedal Foot Pedal Heat Sealing Machine is for sealing all types of plastic packaging material.Seals up to, material up to 32 inches wide using energy efficient impulse seal.Comes with 8mm sealing element.Adjustable timer ensures the same quality seal everytime.Comes with small work table in front of sealing jaws to hold product while sealing.Easy to operate.Insert the material between the two sealing bars.Press down the foot pedal and release.Comes complete with tool kit and replacement heating elements.Some assembly required.Picture is of direct hot machine assembled, yours will arrive in box as it came from the factory.
Foot Operated Impulse Sealer PFS-450 Foot Pedal Heat 450 mm / 45 cm / 18 Inches Wide Sealing Machine Features:
Maximum sealing length: 450 mm / 18 Inches / 45 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 10 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Portable foot hand heat impulse sealer machine.
The sealing machine has the very sample structure, it adopts the pedal sealing type.
The pedal heating induction sealing machine is used for, PP bags, PE bag and composite plastic bag.
The bracket can be adjusted, according to your need. And it heats both the top and down size to seal the bag.side sealing machine is high efficiency and easy to operate.
Sample structure, it adopts the pedal sealing type.
used for PE bag, PP bags and composite plastic bag.
The bracket can be adjusted, according to your need. And it heats both the op and down size to seal the bag. It is high efficiency and easy to operate.
Foot Operated Impulse Sealer PFS-450 Foot Pedal Heat 450 mm / 45 cm / 18 Inches Wide Sealing Machine Specification:
Model:PFS-450
Maximum sealing length: 450 mm / 18 Inches / 45 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8 mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1250 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 550X540X880mm
Net Weight:21Kg
Material: Die-cast Aluminium Alloy
Foot Operated Impulse Sealer PFS-Series Foot Pedal Foot Pedal Heat Sealing Machine is ideal for sealing large bags. By foot operated, it is easier for user to operate machine by foot, 2 hands hold the bags well operated to make an excellent and perfect sealing.
Foot Operated Impulse Sealer PFS-450 Foot Pedal Heat 450 mm / 45 cm / 18 Inches Wide Sealing Machine Package List:
1 X PFS-450 Foot Operated Impulse Sealer
2 X Sealing Elements
2 X Teflon Tapes
Model:PFS-450
Maximum sealing length: 450 mm / 18 Inches / 45 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8 mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1250 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 550X540X880mm
Net Weight:21Kg
Material: Die-cast Aluminium Alloy
Foot Operated Impulse Sealer PFS-Series Foot Pedal Foot Pedal Heat Sealing Machine is ideal for sealing large bags. By foot operated, it is easier for user to operate machine by foot, 2 hands hold the bags well operated to make an excellent and perfect sealing.
Foot Operated Impulse Sealer PFS-450 Foot Pedal Heat 450 mm / 45 cm / 18 Inches Wide Sealing Machine Package List:
1 X PFS-450 Foot Operated Impulse Sealer
2 X Sealing Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:21Kg
HS CODE:8422303090
Foot Operated Impulse Sealer PFS-Series Foot Pedal Foot Pedal Heat Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:21Kg
HS CODE:8422303090
Foot Operated Impulse Sealer PFS-Series Foot Pedal Foot Pedal Heat Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length | 14 Inch/35cm | 18 Inch/45cm | 26 Inch/65cm | 32 Inch/80cm |
| Sealing Width | 2/3/5/8/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
