Foot Impulse Sealer High-speed Heat Sealing Machine PFS-650
Product Details
Sale Foot Impulse Sealer High-speed Heat Sealing Machine PFS-650 Foot-controlled Pedal Type 26 Inches / 650 mm / 65 cm Wide Seal and Cut Packaging Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Foot Impulse Sealer High-speed Heat Sealing Machine PFS-Series Foot-controlled Pedal Type Seal and Cut Packaging Machine is high-speed packaging solutions that can be used for the sealing of polybags and various other thermoplastic sealings.They are highly demanding among our customers due to their high durability, low power consumption, and high working efficiency.These machines are available in various sizes that are capable to make sealing over different sized packages.Foot Sealers offered by us are also provided with light indicators that give a signal to indicate the completion of the heat cycle.
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-Series Foot-controlled Pedal Type Seal and Cut Packaging Machine is allow you to keep both hands free for quicker and more accurate sealing.The machines are also equipped with a plug-in timer.The timer controls the sealing time needed for different materials.Once the timer is set, it will give a consistently flat seal. When seal is done, the signal light on the timer will turn off.The foot sealers are available in 14 Inches , 18 Inches , 26 Inches and 32 Inches with a 2mm,3mm,5mm,8mm or 10mm seal width. Depending on the model of the sealer, materials up to 32 Inches wide and 2mm total thickness can be sealed.The sealers include a pedestal, base, an adjustable worktable and an adjustable foot control.
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-650 Foot-controlled Pedal Type 26 Inches / 650 mm / 65 cm Wide Seal and Cut Packaging Machine Features:
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 10 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Ideal for high volume sealing
Plug-in electronic time for variable control
All metal construction
No warm-up time
Sits on rectangular base for stability
Easy to operate
PTFE coated jaws
Standing operation
Consumable parts
CE,RoHS and CCC Certified.
CE,RoHS and CCC Certified.
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-650 Foot-controlled Pedal Type 26 Inches / 650 mm / 65 cm Wide Seal and Cut Packaging Machine Specification:
Model:PFS-650
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8 mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1500 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700X570X880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-650 Foot-controlled Pedal Type 26 Inches / 650 mm / 65 cm Wide Seal and Cut Packaging Machine Package List:
1 X PFS-650 Foot Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Tapes
Model:PFS-650
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8 mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1500 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700X570X880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy

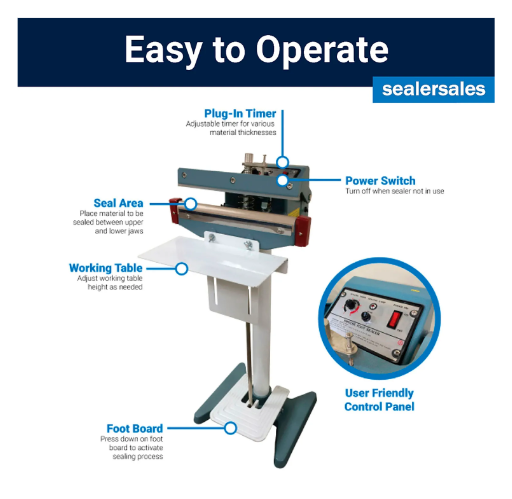

Foot Impulse Sealer High-speed Heat Sealing Machine PFS-Series Foot-controlled Pedal Type Seal and Cut Packaging Machine Is Easy to Operate,Set the timer. Insert the bag between the two sealing bars and press down on the foot board. Hold down the foot board for an additional 2-3 seconds after the timer light goes off to set the seal.
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-650 Foot-controlled Pedal Type 26 Inches / 650 mm / 65 cm Wide Seal and Cut Packaging Machine Package List:
1 X PFS-650 Foot Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250 mm
Net Weight:24 Kg
HS CODE:8422303090
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-Series Foot-controlled Pedal Type Seal and Cut Packaging Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250 mm
Net Weight:24 Kg
HS CODE:8422303090
Foot Impulse Sealer High-speed Heat Sealing Machine PFS-Series Foot-controlled Pedal Type Seal and Cut Packaging Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length | 14 Inches/35 cm | 18 Inches/45 cm | 26 Inches/65 cm | 32 Inches/80 cm |
| Sealing Width | 2mm / 3mm / 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 0.8 mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
