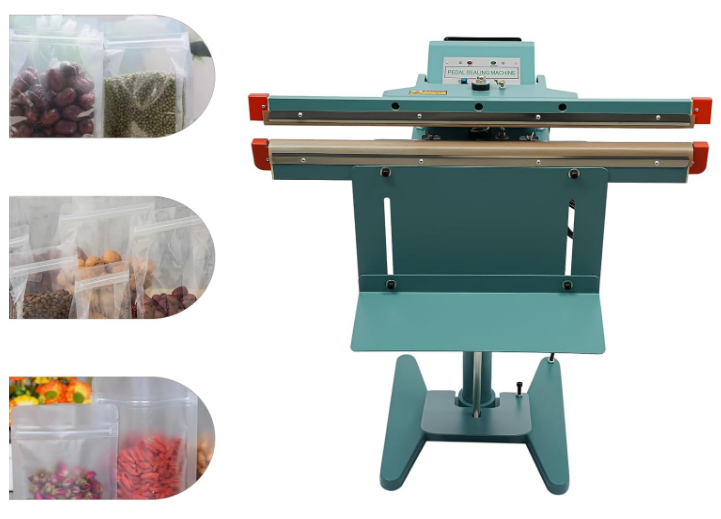

Foot Pedal Impulse Sealer Cutter Sealing Machine PFS-350D
Product Details
Supply Foot Pedal Impulse Sealer With Cutter PFS-350D Foot Operated Double Sided Heating Jaw Sealing Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Foot Pedal Impulse Sealer With Cutter PFS-D-Series Foot Operated Double Sided Heating Jaw Sealing Machine is ideal for high volume poly bag and other thermoplastic sealing.This sealer is capable of sealing 15-20 bags per minute.Foot sealer allows the user to keep both hands free for quicker and more accurate sealing.The sealer is also equipped with a plug-in timer.The timer controls the sealing time needed for different materials.Once the timer is set, the sealer will provide a consistently flat seal.
Set the timer. Insert the bag between the sealing bars, press down on the foot board and release after the timer light turns off. For the best quality seal, hold the pedal down for an extra 2 seconds after the timer light goes off. During sealing operation, it is not easy to slide, making the operation more stable and efficient, and the sealing operation is completed in one step. This machine is made of high-quality metal, with smooth rotation, wear resistance, and longer equipment service life!
Foot Pedal Impulse Sealer With Cutter PFS-350D Foot Operated Double Sided Heating Jaw Sealing Machine Features:
Maximum sealing length: 350 mm / 14 Inches / 35 cmMaximum bag sealing thickness:1 mm X 2
Sealing Width 5 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Easy operation to achieve sealing and cutting functions
Equipped with Precision electronic control circuit for automatically heating control
Sturdy metal case construction with anti-skid footpad to increase stability
Self-standing and compact design for less space occupying easy carry
Pure copper transformer for over temperature protection and overload protection
Strong power but low electricity consumption
Widely used across various industries and materials
Equipped with Precision electronic control circuit for automatically heating control
Sturdy metal case construction with anti-skid footpad to increase stability
Self-standing and compact design for less space occupying easy carry
Pure copper transformer for over temperature protection and overload protection
Strong power but low electricity consumption
Widely used across various industries and materials
Foot Pedal Impulse Sealer With Cutter PFS-350D Foot Operated Double Sided Heating Jaw Sealing Machine Specification:
Model:PFS-350D
Maximum sealing length: 350 mm / 14 Inches / 35 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 5 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450X540X880mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
Foot Pedal Impulse Sealer With Cutter PFS-D-Series Foot Operated Double Sided Heating Jaw Sealing Machine designed for high volume users. Foot pedal leaves operator's hands available to load and unload. Dual 5mm heating elements produce strong, wide seals on up to 12 Mil bags! Foot Operated Impulse Sealers use standard 110 volt power. For use with polyethylene, polypropylene and metallic bags. Service kits containing 2 heating elements and 2 PTFE glass cloth tape strips are available for each sealer.
Foot Pedal Impulse Sealer With Cutter PFS-350D Foot Operated Double Sided Heating Jaw Sealing Machine Package List:
1 X PFS-350D Foot Pedal Impulse Sealer With Cutter
2 X Heating Elements
2 X Teflon Tapes
Model:PFS-350D
Maximum sealing length: 350 mm / 14 Inches / 35 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 5 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450X540X880mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
Foot Pedal Impulse Sealer With Cutter PFS-D-Series Foot Operated Double Sided Heating Jaw Sealing Machine designed for high volume users. Foot pedal leaves operator's hands available to load and unload. Dual 5mm heating elements produce strong, wide seals on up to 12 Mil bags! Foot Operated Impulse Sealers use standard 110 volt power. For use with polyethylene, polypropylene and metallic bags. Service kits containing 2 heating elements and 2 PTFE glass cloth tape strips are available for each sealer.
Foot Pedal Impulse Sealer With Cutter PFS-350D Foot Operated Double Sided Heating Jaw Sealing Machine Package List:
1 X PFS-350D Foot Pedal Impulse Sealer With Cutter
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:19Kg
HS CODE:8422303090
Foot Pedal Impulse Sealer With Cutter PFS-D-Series Foot Operated Double Sided Heating Jaw Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:19Kg
HS CODE:8422303090
Foot Pedal Impulse Sealer With Cutter PFS-D-Series Foot Operated Double Sided Heating Jaw Sealing Machine Specification:
| Model. | PFS300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Max.Sealing Length | 12 Inches | 14 Inches | 18 Inches | 26 Inches |
| Sealing Width | 5 mm / 8 mm / 10 mm | |||
| Max.sealing thickness | 1 mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
