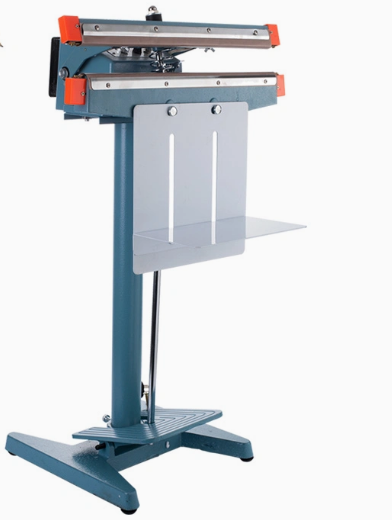

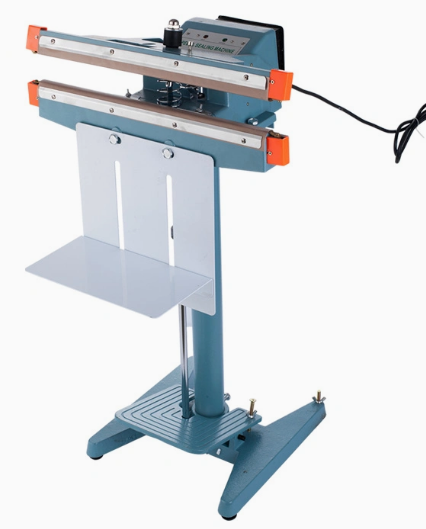

Foot Impulse Sealer With Cutter Double Heating Bar PFS-650D
Product Details
Supply Foot Impulse Sealer With Pedestal PFS-650D Foot Pedal Operated Double 26 Inches / 650 mm / 65 cm Wide Impulse Bar Heating Sealing Machine By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Foot Impulse Sealer With Pedestal PFS-D-Series Foot Pedal Operated Double Impulse Bar Heating Sealing Machine is A base Foot Sealer ;also available are Foot Sealer with extra functionality such as Single jaw element seal and print option.Our pedestal heat sealers easily seal polythene and polypropylene. In addition, covered element retainers provide operator safety and cleverly designed sealing jaws apply pressure evenly and efficiently. All models come with a timer, foot pedal and tray.
Employing a dual-impulse mechanism, hands-free sealers are imbued with twin top and bottom heating elements, orchestrated through a foot pedal initiation.This advanced configuration equips the sealers with unparalleled versatility, enabling the encapsulation of an extensive gamut of materials.In contrast, the historical absence of dual top and bottom heat units necessitated alternative and often intricate sealing methodologies to tackle recalcitrant substances such as vinyl.
Foot Impulse Sealer With Pedestal PFS-650D Foot Pedal Operated Double 26 Inches / 650 mm / 65 cm Wide Impulse Bar Heating Sealing Machine Features:
Maximum sealing length:650 mm / 26 Inches / 65 cmMaximum bag sealing thickness:1 mm X 2
Sealing Width 10 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Suitable Seal film polypropylene and polythene bags and tubing and laminates
Foot operated
Comes with timer, foot pedal & adjustable tray
Comes with timer, foot pedal & adjustable tray
Foot operated pedestal impulse heat sealers are very handy for larger bags where both hands are required to hold your bag whilst sealing.
They also come with an adjustable table and pedestal extension for the taller operator.
The foot pedal angle and stroke is adjustable for maximum operator comfort.
The control is a single timer which automatically impulses the element and shuts it off in one quick action.
There is no danger of over sealing if the pedal is held down too long.
CE,RoHS and CCC Certified.
CE,RoHS and CCC Certified.
Foot Impulse Sealer With Pedestal PFS-650D Foot Pedal Operated Double 26 Inches / 650 mm / 65 cm Wide Impulse Bar Heating Sealing Machine Specification:
Model: PFS-650D
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700X570X880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Foot Impulse Sealer With Pedestal PFS-D-Series Foot Pedal Operated Double Impulse Bar Heating Sealing Machine offers extra power, and increased timer range and a double seal. This heat sealer easily seals polythene, polypropylene and polythene/paper (such as autoclave). In addition, covered element retainers provide operator safety and cleverly designed sealing jaws apply pressure evenly and efficiently.
Foot Impulse Sealer With Pedestal PFS-650D Foot Pedal Operated Double 26 Inches / 650 mm / 65 cm Wide Impulse Bar Heating Sealing Machine Package List:
1 X PFS-650D Foot Impulse Sealer With Pedestal
2 X Sealing Elements
2 X Teflon Tapes
Model: PFS-650D
Maximum sealing length: 650 mm / 26 Inches / 65 cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700X570X880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Foot Impulse Sealer With Pedestal PFS-D-Series Foot Pedal Operated Double Impulse Bar Heating Sealing Machine offers extra power, and increased timer range and a double seal. This heat sealer easily seals polythene, polypropylene and polythene/paper (such as autoclave). In addition, covered element retainers provide operator safety and cleverly designed sealing jaws apply pressure evenly and efficiently.
Foot Impulse Sealer With Pedestal PFS-650D Foot Pedal Operated Double 26 Inches / 650 mm / 65 cm Wide Impulse Bar Heating Sealing Machine Package List:
1 X PFS-650D Foot Impulse Sealer With Pedestal
2 X Sealing Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250 mm
Net Weight:24Kg
HS CODE:8422303090
Foot Impulse Sealer With Pedestal PFS-D-Series Foot Pedal Operated Double Impulse Bar Heating Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250 mm
Net Weight:24Kg
HS CODE:8422303090
Foot Impulse Sealer With Pedestal PFS-D-Series Foot Pedal Operated Double Impulse Bar Heating Sealing Machine Specification:
| Model. | PFS300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Sealing Length | 12 Inches (300mm) | 14 Inches (350mm) | 18 Inches (450mm) | 26 Inches (650mm) |
| Sealing Width | 5mm/8mm/10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
