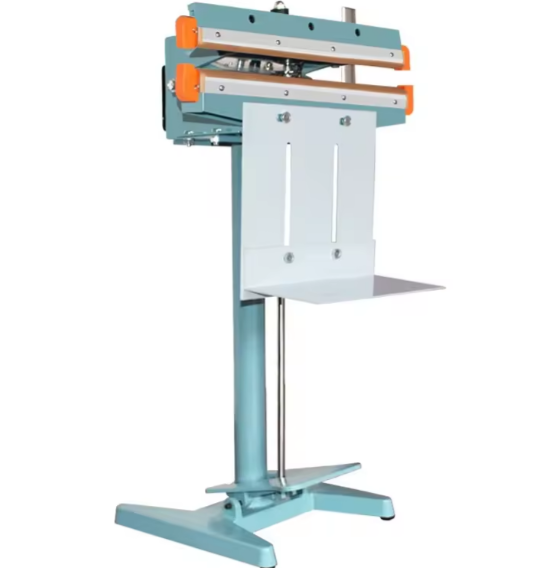

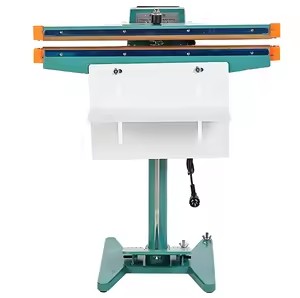

Foot Sealer Double-Sided Heating Sealing Machine PFS-450D
Product Details
Make and Supply Foot Sealer PFS-450D Double-Sided Jaw Heating 450 mm / 45 cm / 18 Inches Wide Sealing Machine With Cutter Packing Machine By Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer In China.Foot Sealer PFS-D-Series Double-Sided Jaw Heating Sealing Machine With Cutter Packing Machine offered are made available by us under varied model.Foot Operated Sealing Machines provides adjustable heat controller, adjustable bag rest, easy of operation, high productivity and hot bar sealer with energy regulate for sealing pouches.These can operate on rated power supply of AC 220V, 50Hz and can deliver both impulse/continuous type sealing options.
Employing a dual-impulse mechanism, hands-free sealers are imbued with twin top and bottom heating elements, orchestrated through a foot pedal initiation. This advanced configuration equips the sealers with unparalleled versatility, enabling the encapsulation of an extensive gamut of materials. In contrast, the historical absence of dual top and bottom heat units necessitated alternative and often intricate sealing methodologies to tackle recalcitrant substances such as vinyl. The sealing width, quantified at 5mm, is approximately 0.25 inches.
Foot Sealer PFS-450D Double-Sided Jaw Heating 450 mm / 45 cm / 18 Inches Wide Sealing Machine With Cutter Packing Machine Features:
Maximum sealing length:450 mm / 18 Inches / 45 cmMaximum bag sealing thickness:1 mm X 2
Sealing Width 5 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Adjustable electronic timer
Tiltable sealing jaw
Adjustable bag rest
Ease of operation
High productivity
Visual indication during sealing
Audio indication at the end of sealing
Hot bar sealer with energy regulator for sealing laminated pouches
All metal constructionTiltable sealing jaw
Adjustable bag rest
Ease of operation
High productivity
Visual indication during sealing
Audio indication at the end of sealing
Hot bar sealer with energy regulator for sealing laminated pouches
No warm-up time
Sits on rectangular base for stability
Foot Sealer PFS-450D Double-Sided Jaw Heating 450 mm / 45 cm / 18 Inches Wide Sealing Machine With Cutter Packing Machine Specification:
Model: PFS-450D
Maximum sealing length: 450 mm / 18 Inches / 45 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 5 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1400 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm): 550X540X880 mm
Net Weight:21 Kg
Material:Die-cast Aluminium Alloy
Foot Sealer PFS-D-Series Double-Sided Jaw Heating Sealing Machine With Cutter Packing Machine require vertical heavy-duty sealing, such as the packaging and sealing of powders, liquids, and very heavy bags. This type of impulse foot sealer uses both sealing jaws to produce a long lasting seal. It can be combined with a conveyer or working table and can be linked to sealing or filling system. Adjustable Height and Electric Foot Pedal Operated.
Foot Sealer PFS-450D Double-Sided Jaw Heating 450 mm / 45 cm / 18 Inches Wide Sealing Machine With Cutter Packing Machine Package List:
1 X PFS-450D Foot Sealer
2 X Extra Heating Elements
2 X Extra Teflon Tapes
Model: PFS-450D
Maximum sealing length: 450 mm / 18 Inches / 45 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 5 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1400 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm): 550X540X880 mm
Net Weight:21 Kg
Material:Die-cast Aluminium Alloy
Foot Sealer PFS-D-Series Double-Sided Jaw Heating Sealing Machine With Cutter Packing Machine require vertical heavy-duty sealing, such as the packaging and sealing of powders, liquids, and very heavy bags. This type of impulse foot sealer uses both sealing jaws to produce a long lasting seal. It can be combined with a conveyer or working table and can be linked to sealing or filling system. Adjustable Height and Electric Foot Pedal Operated.
Foot Sealer PFS-450D Double-Sided Jaw Heating 450 mm / 45 cm / 18 Inches Wide Sealing Machine With Cutter Packing Machine Package List:
1 X PFS-450D Foot Sealer
2 X Extra Heating Elements
2 X Extra Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:21Kg
HS CODE:8422303090
Foot Sealer PFS-D-Series Double-Sided Jaw Heating Sealing Machine With Cutter Packing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250mm
Net Weight:21Kg
HS CODE:8422303090
Foot Sealer PFS-D-Series Double-Sided Jaw Heating Sealing Machine With Cutter Packing Machine Specification:
| Model. | PFS300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Sealing Length |
300mm 12 Inch |
350mm 14 Inch |
450mm 18 Inch |
650mm 26 Inch |
| Sealing Width | 5mm/8mm/10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
