Product Info
  • Seal and Cut Double Impulse Foot Pedal Heat Sealer PFS-300D

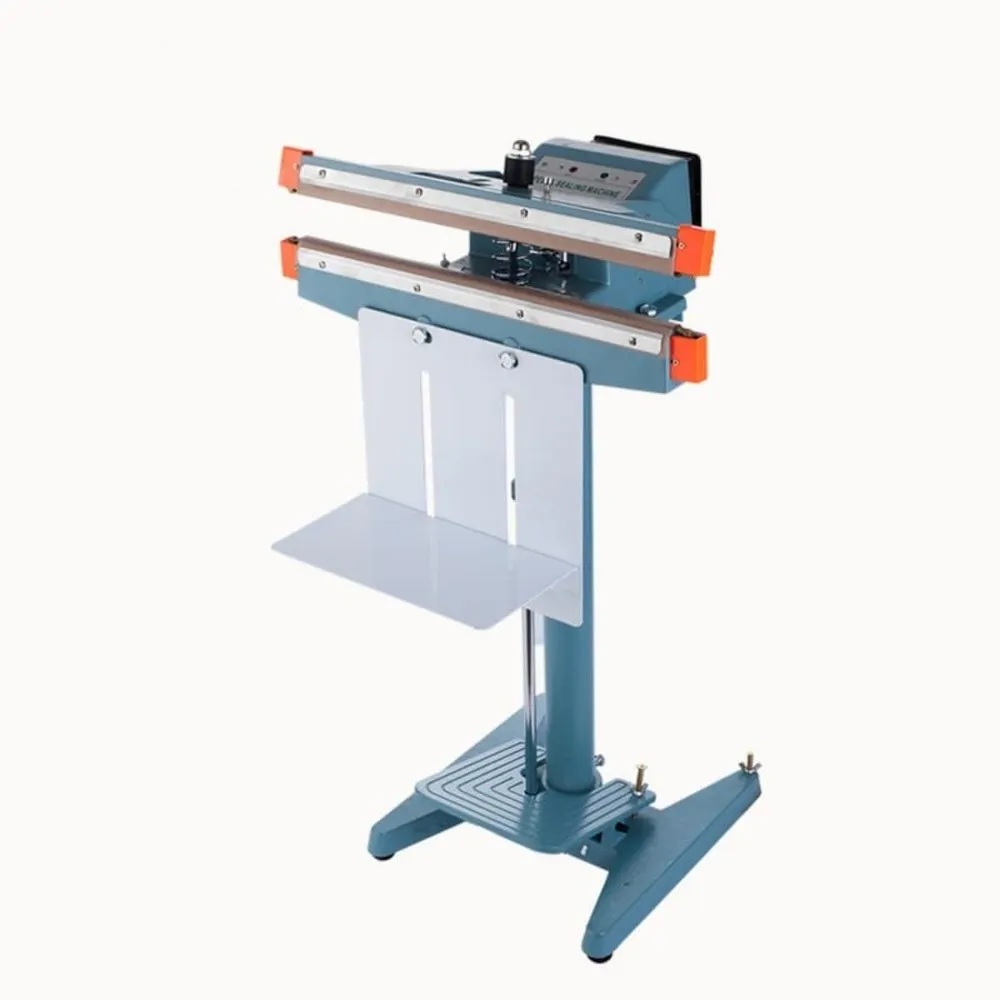

Seal and Cut Double Impulse Foot Pedal Heat Sealer PFS-300D

Product Details

Export Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-300D Foot Operated 300 mm / 12 Inches / 30 cm Long and 10 mm Heat Sealing Machine With Round Wire By Zhejiang Tianyu Industry Co., Ltd.Supplier Factory Manufacturer In China.Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-D-Series Foot Operated Heat Sealing Machine With Round Wire is a perfect industrial and scientific equipment to meet your seal and cut desire. Adopted high quality steel material and anti-skid footpad design, this heat seal closer is durable and stable.In addition, equipped with pure copper transformer and high temperature resistant cloth, this seal machine ensures your safe use.  Most importantly, it can achieve sealing and cutting function by very easy operation, which allows everyone to make it. All in all, our foot stamping sealing machine will definitely satisfy all your needs.



Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-300D Foot Operated 300mm / 12 Inches / 30cm Long and 10mm Heat Sealing Machine With Round Wire Features:


Maximum sealing length:300 mm / 12 Inches / 30 cm
Maximum bag sealing thickness:1 mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products

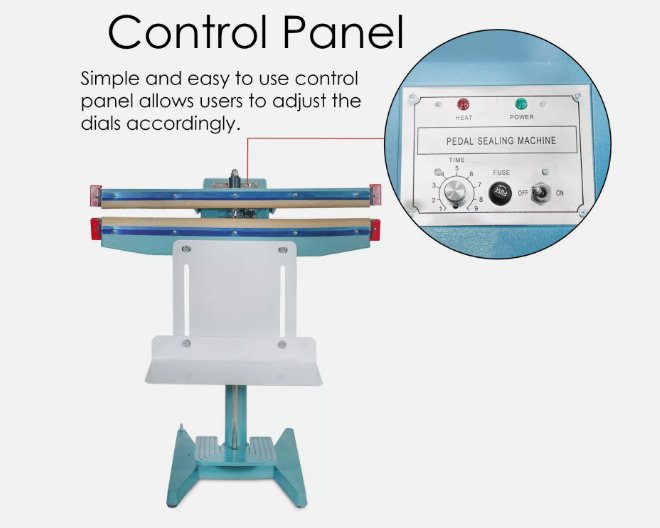

Product is an English operating panel, with instructions in English, easy to understand operation
Sturdy aluminum construction with support shelf for package.
Dual top and bottom heating elements version
Customer needs to select 220 or 110 volts
Simple to use, no operator training requires
Impulse sealing system offer uniform, neat and strong seals
No warm-up time necessary
Timer for sealing control
Adjustable pedal height

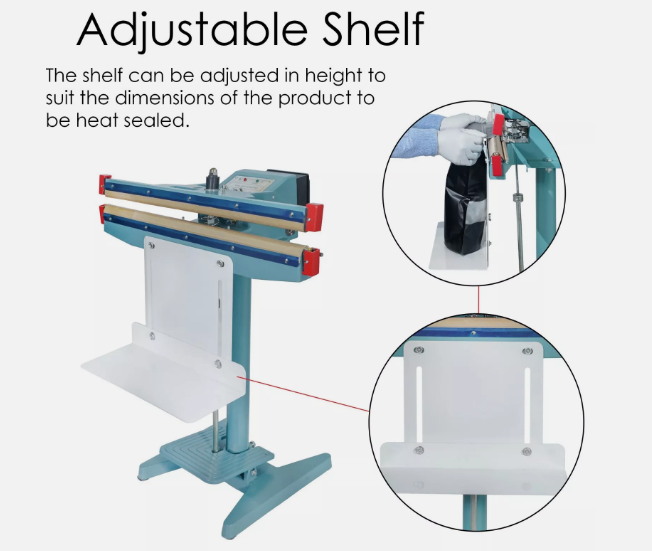

Adjustable work table height
Full spare parts and replacement kit included


Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-300D Foot Operated 300mm / 12 Inches / 30cm Long and 10mm Heat Sealing Machine With Round Wire Specification:


Model: PFS-300D
Maximum sealing length: 300 mm / 12 Inches / 30 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:900 W
Welding time:Infinitely Adjustable
External Dimensions  (LXWXH) (mm): 350X540X880 mm
Net Weight:17 Kg
Material:Die-cast Aluminium Alloy
Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-D-Series Foot Operated Heat Sealing Machine With Round Wire is widely used in such industries as foodstuff, special local products, tea, medicine, hardware etc. They are most convenient and economical sealing equipments for shops, families and factories.



Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-300D Foot Operated 300mm / 12 Inches / 30cm Long and 10mm Heat Sealing Machine With Round Wire Package List:


1 X PFS-300D Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800X530X250 mm
Net Weight:17Kg



Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-D-Series Foot Operated Heat Sealing Machine With Round Wire Operation:

According to the thickness of the packaging bag, to determine the temperature, green indicator lights, can be used.

The packaging bags into the heated bar at the sealer.

Depress the foot pedal, so that the pressure of the heating strips and tightly fitting, red light is off, the seal is complete.


HS CODE:8422303090
Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-D-Series Foot Operated Heat Sealing Machine With Round Wire Specification:




Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer Make and Export Seal and Cut Double Heating Jaw Impulse Foot Pedal Sealer PFS-D-Series Foot Operated Heat Sealing Machine With Round Wire Specification
Model.  PFS300D   PFS-350D PFS-450D PFS-650D
Impulse Voltage AC220V/50HZ or AC110V/60HZ
Impulse Power (W) 900 1300 1400 1700
Max.Sealing Length  300 mm 350 mm 450 mm 650 mm
Sealing Width 5 mm / 8 mm / 10 mm
Max.sealing thickness 1mm X 2
Heat Time (sec) 0-2.5
Welding Time Infinitely Adjustable
External Dimensions  (L×W×H) (mm) 350X540X880 450X540X880 550X540X880 700X570X880
Package 1 PCS/CTN
Carton Size(mm)  800X530X250mm
Net Weight(Kg) 17 19 21 24
