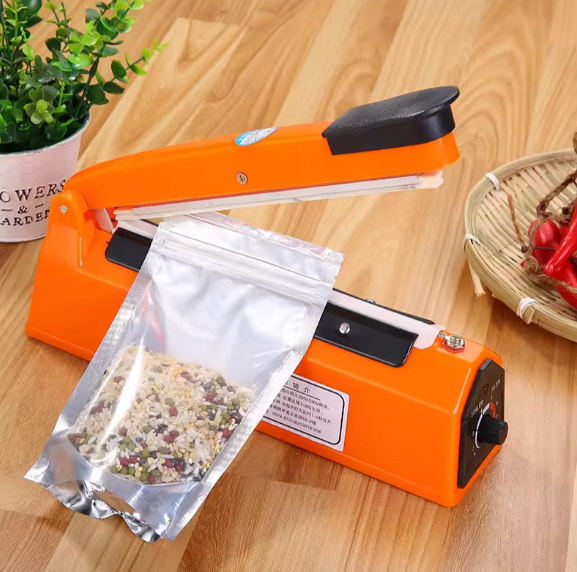

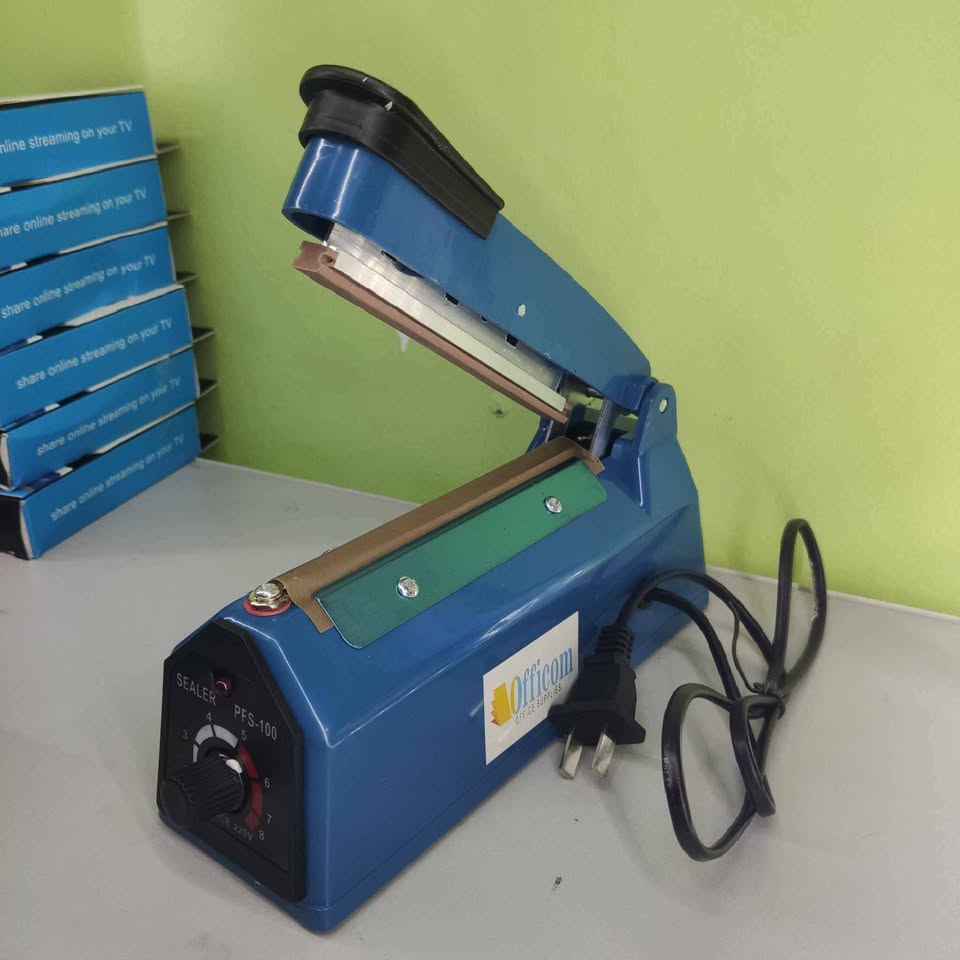

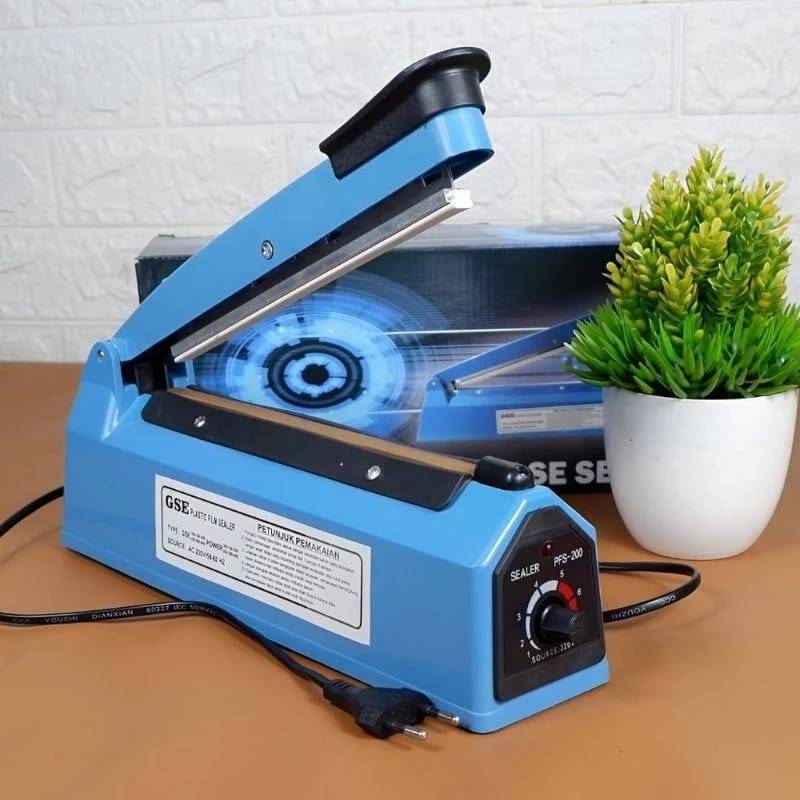

Hand Operated Impulse Sealer Heat Sealing Coffee Bag Machine PFS-100 In Factory From China.Hand Operated Impulse Sealer Plastic ABS Body PFS-Series Heat Sealing Coffee Bag Machine intended only for closing foil bags. This model is intended for seals of length up to 400 mm.Seal is performed by kanthal sealing element of the width of 2 mm.This sealer is suitable for non-series usage. trusted by businesses and individuals for its perfect balance of functionality, reliability, and ease of use.This highly capable, hand-operated unit provides a standard up to 16-inch (400mm) sealing length with a 2mm seal width, making it an exceptionally versatile solution for a broad spectrum of packaging needs.We offer seal widths in 2mm,3mm, 5mm, 8mm or a specialized round seal to accommodate diverse packaging needs. Its straightforward operation means you simply plug it into a standard 110V power system, and it's ready for immediate use, ensuring seamless integration into any workplace or production line. ample sealing length and consistent performance make it an indispensable tool across numerous industries and applications. ensures high-quality machines that enable rapid and precise plasticisation of the materials concerned. The operation of the machines involves both the process of the sealing itself and the subsequent cooling of the seam, allowing the material to remain under sufficient pressure.Thus reducing the risk of damage to the plane to be welded. The result is that impulse sealers can be used in an extremely wide range of production processes. Their applications include automatic packaging machines, production technologies or vacuum packaging. Contact sealing using this method represents one of the most commonly used methods of joining plastics.
Hand Operated Impulse Sealer Heat Sealing Coffee Bag Machine Features:
Model: PFS-100
Max Sealing Length: 100mm / 4 Inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.2mm
Heat Time: 0.2 -1.5s
Electricity is used only when the sealing bar is down for safety.
8 different adjustable lengths of sealing time.
Seals a range of materials including polyethylene, mylar, nylon, polypropylene, tyvek, and more.
Effortless Operation-Simply set the timer, insert the bag, and press down for a secure seal without any warm-up time.
Durable Design-Constructed with all-metal components, ensuring long-lasting performance and reliability for all your sealing needs.
Versatile Sealing Options-Compatible with round wire heating elements for both sealing and cutting, providing added functionality for various applications.
Safety Certified-ETL Listed, guaranteeing that the product meets high safety standards for peace of mind during use.
Instantly use-No warm up time needed, Lightweight Design. 8 stalls temperature adjustme...
Built-in fuse for safe using, Easy to use and to clean,ideal for household, retail, produce...
Energy Conservation Manual Impulse Sealer，Non-Toxic, Odorless, Durable, Reinforced and...
The Heat Sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Hand Operated Impulse Sealer Heat Sealing Coffee Bag Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.2mm
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug/AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Seals materials up to 16 inches wide and 10 mil thick for versatile applications.
Instant operation with no warm-up time, allowing for immediate sealing.
Durable construction ensures long-lasting performance and reliability.
Optional features like round wire heating elements and sliding cutters enhance functionality.
An impulse sealer uses an electric current to generate heat to seal bags and other materials.
Impulse sealers are used throughout the food and drink industry, as they provide a convenient solution to create airtight packaging.
Hand Operated Impulse Sealer Heat Sealing Coffee Bag Machine Package list:
1 X PFS-100 Hand Operated Impulse Sealer
2 X 4 Inches Sealing Wires
2 X 4 Inches High Temperature Clothes
1 X English User Manual
PFS-100 Hand Operated Impulse Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245 X 95 X 170mm
20 PCS/CTN
Carton Size:490 X 255 X 640mm
G.W/CTN:23Kg
HS CODE:8422303090
Hand Operated Impulse Sealer Plastic ABS Body PFS-Series Heat Sealing Coffee Bag Machine Specification:
Zhejiang Tianyu Industry Co. Ltd.Supplier Factory Manufacturer Exporting Hand Operated Impulse Sealer Plastic ABS Body PFS-Series Heat Sealing Coffee Bag Machine Specification
|
Model No. |
PFS-100 |
PFS-150 |
PFS -200 |
PFS -250 |
PFS-300 |
PFS-400 |
|
Impulse power |
150W |
220W |
300W |
350W |
400W |
600W |
|
Impulse voltage |
AC220V/50HZ or AC110V/60HZ |
|
Max sealing length |
100mm
4 Inches |
150mm
6 Inches |
200mm
8 Inches |
250mm
10 Inches |
300mm
12 Inches |
400mm
16 Inches |
|
Max sealing thickness |
0.3mm |
0.3mm |
0.3mm |
0.3mm |
0.3mm |
0.3mm |
|
Sealing width |
2mm |
2mm |
2mm |
2mm |
2mm |
3mm |
|
Heating time |
0.2-1.5S |
0.2-1.5S |
0.2-1.5S |
0.2-1.5S |
0.2-1.5S |
0.2-2S |
|
Dimensions (L x W x H) Cm |
24.5X9.5X17 |
29.5X9.5X18 |
33X10X17.2 |
38X10.2X18.3 |
43X10.2X17.5 |
57.5X10.5X19 |
|
Weight |
1.06KGS |
1.24KGS |
1.26KGS |
1.58KGS |
1.68KGS |
2.82KGS |
|
Package |
1 Pcs/Color Box |
|
QTY/CTN |
20PCS |
20PCS |
10PCS |
10PCS |
10PCS |
10PCS |
|
Carton Size(cm) |
49X25.5X64 |
52.5X29.5X65.5 |
51X34.5X36 |
53.5X39.5X36 |
52.5X44.5X36 |
59X55.5X39 |
|
G.W/CTN(Kg) |
23 |
25.84 |
13.38 |
16.4 |
17.78 |
26.5 |
|
QTY(sets)/20'GP |
7000 |
5500 |
4450 |
3700 |
3350 |
2200 |
|
QTY(sets)/40'GP |
14500 |
11500 |
9200 |
7650 |
6900 |
4550 |
|
QTY(sets)/40'HQ |
17000 |
13400 |
10800 |
8950 |
8100 |
5350 |
