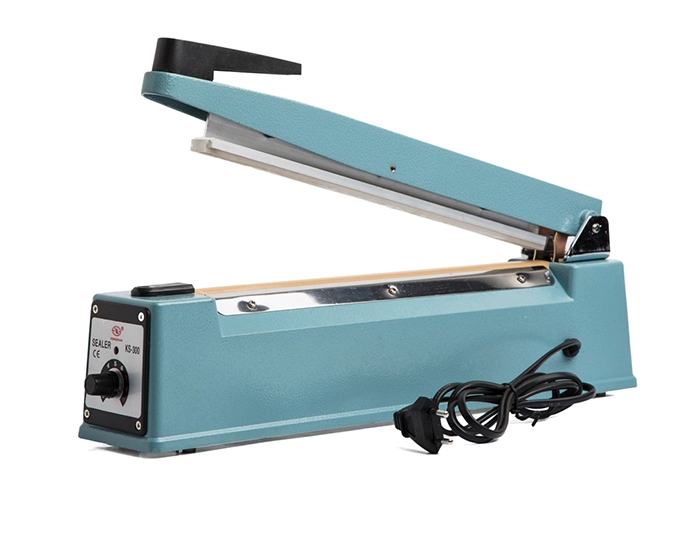

Impulse Hand Sealer For Plastic Pouch Packing Machine FS-400
Product Details
Make and Wholesale Impulse Hand Sealer For 16 Inches / 400mm / 40cm Width Plastic Pouch Packing Machine FS-400 In Factory From China.Impulse Hand Sealer Iron Case FS-Series Plastic Pouch Packing Machine is a highly efficient and versatile device that plays a crucial role in various industries.It is widely used for sealing bags, pouches, and other packaging materials with ease and precision.This machine utilizes the principle of heat and pressure to create airtight seals, ensuring the freshness and safety of the contents inside.One of the key advantages of the impulse sealer is its simplicity and ease of use.It features a user-friendly interface and requires minimal training to operate effectively.With just a few simple steps, operators can achieve consistent and reliable seals, regardless of the packaging material’s thickness.The sealing process involves placing the open end of the bag or pouch between the sealer’s jaws.When the machine is activated, an electrical current is passed through a heating element, generating intense heat.The heat quickly transfers to the sealing area, causing the packaging material to melt and fuse together.Simultaneously, pressure is applied to ensure a strong and secure seal.The entire process is completed within seconds, making it ideal for high-volume production lines.The impulse sealer sealing machine offers precise control over the sealing parameters, allowing operators to adjust the temperature and sealing time according to the specific requirements of different materials.This flexibility makes it suitable for sealing a wide range of packaging materials, including polyethylene, polypropylene, laminates, and more. In addition to its sealing capabilities, the impulse sealer also enhances product presentation by creating clean, professional-looking seals.It helps prevent leakage, contamination, and tampering, ensuring the integrity and quality of the packaged goods. Overall, the impulse sealer sealing machine is an indispensable tool for industries that rely on efficient and reliable packaging solutions. Its ease of use, versatility, and ability to produce consistent, airtight seals make it an essential asset for businesses seeking to optimize their packaging processes and deliver superior products to their customers.
Sealing Length:400mm / 16 inches / 40cm
Seal width: 3mm
Sealing Thickness: 0.01-0.8mm
Heat Time: 0.2 -2s
Can Make OEM Products
Impulse Hand Sealer For 16 Inches / 400mm / 40cm Width Plastic Pouch Packing Machine Package:
Impulse Hand Sealer For 16 Inches / 400mm / 40cm Width Plastic Pouch Packing Machine Features:
Sealing Length:400mm / 16 inches / 40cm
Seal width: 3mm
Sealing Thickness: 0.01-0.8mm
Heat Time: 0.2 -2s
Can Make OEM Products
Body Material : Iron
Automation Grade : Manual
Ideal for sealing heat sealable poly pouches.
Hand operated Impulse (instant) sealing.
Adjustable electronic timer.
Suitable for packing solids, granules and powders.
Round element option for simultaneous sealing and cutting.
Used for sealing parts and components in plastic bags to protect them from dirt or moisture.
Sealing bags containing food items like snacks, grains, or dried foods to preserve freshness and prevent contamination.
Sealing pouches containing medical products like sterile instruments, bandages, or medications.
Packaging medicines in blister packs or small plastic pouches to ensure safety and tamper-evidence.
Impulse Hand Sealer For 16 Inches / 400mm / 40cm Width Plastic Pouch Packing Machine Specifications:
Model:FS-400
Color: Gray,Black, Blue,White
Sealing Length:400mm / 16 inches / 40cm
Seal width: 3mm
Sealing Thickness: 0.01-0.8mm
Source: AC110V/60Hz or AC220V/50Hz
Power: 600W
Weight: 3.26 Kg
Dimensions: 575 X 105 X 195mm (LX WX H)
Material: Iron Case + Aluminum construction
Plug:US Standard
Color: Gray,Black, Blue,White
Sealing Length:400mm / 16 inches / 40cm
Seal width: 3mm
Sealing Thickness: 0.01-0.8mm
Source: AC110V/60Hz or AC220V/50Hz
Power: 600W
Weight: 3.26 Kg
Dimensions: 575 X 105 X 195mm (LX WX H)
Material: Iron Case + Aluminum construction
Plug:US Standard
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.
Customize: OEM and ODM available.
This Impulse Hand Sealer Machine is suitable for the low graded plastics and we do not recommend Impulse Type Hand Sealer Machine for High Density Polythene, for high graded plastics, the Hot Bar Hand Sealer Machines recommended.
This Impulse Hand Sealer is a manual sealing device designed to seal plastic bags and other flexible packaging materials. It features a heating element that creates an instant seal when the user presses down on the handle, which activates the impulse mechanism.

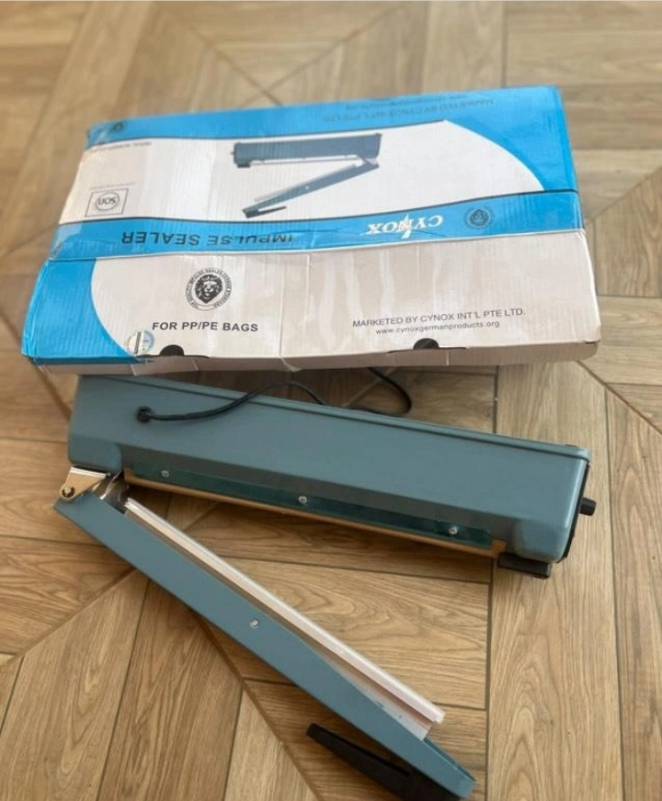

Impulse Hand Sealer For 16 Inches / 400mm / 40cm Width Plastic Pouch Packing Machine Package:
1 X FS-400 Impulse Hand Sealer
2 X Replacement Wire Heat Strip
2 X Replacement Teflon Tapes
1 X English Instruction Manual
Color Box Size:575 X 105 X 195mm
FS-400 Impulse Heat Sealer Weight: 3.26 Kg
1 PCS/Color Box
10 PCS/CTN
10 PCS/CTN
Carton Size:590 X 570 X 390mm
G.W/CTN:32.6 Kg
Impulse Hand Sealer Iron Case FS-Series Plastic Pouch Packing Machine Usage:
No warm-up time needed.
Put Plastic bag on platform, press down the handle, wait for desired time and beep (as per material)
Leave the handle about one second.
Do the final adjustments on the timer after a few operations.
If the bag is not sealed properly, increase the time slowly & if the bag is sealed too much or melted, decrease the time.
Put Plastic bag on platform, press down the handle, wait for desired time and beep (as per material)
Leave the handle about one second.
Do the final adjustments on the timer after a few operations.
If the bag is not sealed properly, increase the time slowly & if the bag is sealed too much or melted, decrease the time.
HS CODE:8422303090
Impulse Hand Sealer Iron Case FS-Series Plastic Pouch Packing Machine Specification:
| Model. | FS -200 | FS-300 | FS-400 |
| Impulse power | 300W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | ||
| Max. sealing length |
200mm (8 Inch) |
300mm (12 Inch) |
400mm (16 Inch) |
| Sealing width | 2mm | 2mm | 3mm |
| Max. sealing thickness | 0.3mm | 0.6mm | 0.8mm |
| Heating time | 0.2-1.5 s | 0.2-1.5 s | 0.2-2 s |
|
Temperature Control |
8-Level | ||
| Dimensions (L x W x H)Cm | 33.3X10X17.3 | 47X10.5X19 | 57.5X10.5X19.5 |
| Weight | 1.98KGS | 2.24KGS | 3.26KGS |
| Package | 1 PCS/Color Box | ||
| QTY/CTN | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 53.5X34.5X36 | 57X48.5X38.5 | 59X57X39 |
| G.W/CTN(Kg) | 20.6 | 23.58 | 32.6 |
| QTY(sets)/20'GP | 4220 | 2630 | 2140 |
| QTY(sets)/40'GP | 8730 | 5450 | 4430 |
| QTY(sets)/40'HQ | 10240 | 6390 | 5190 |
