Product Info

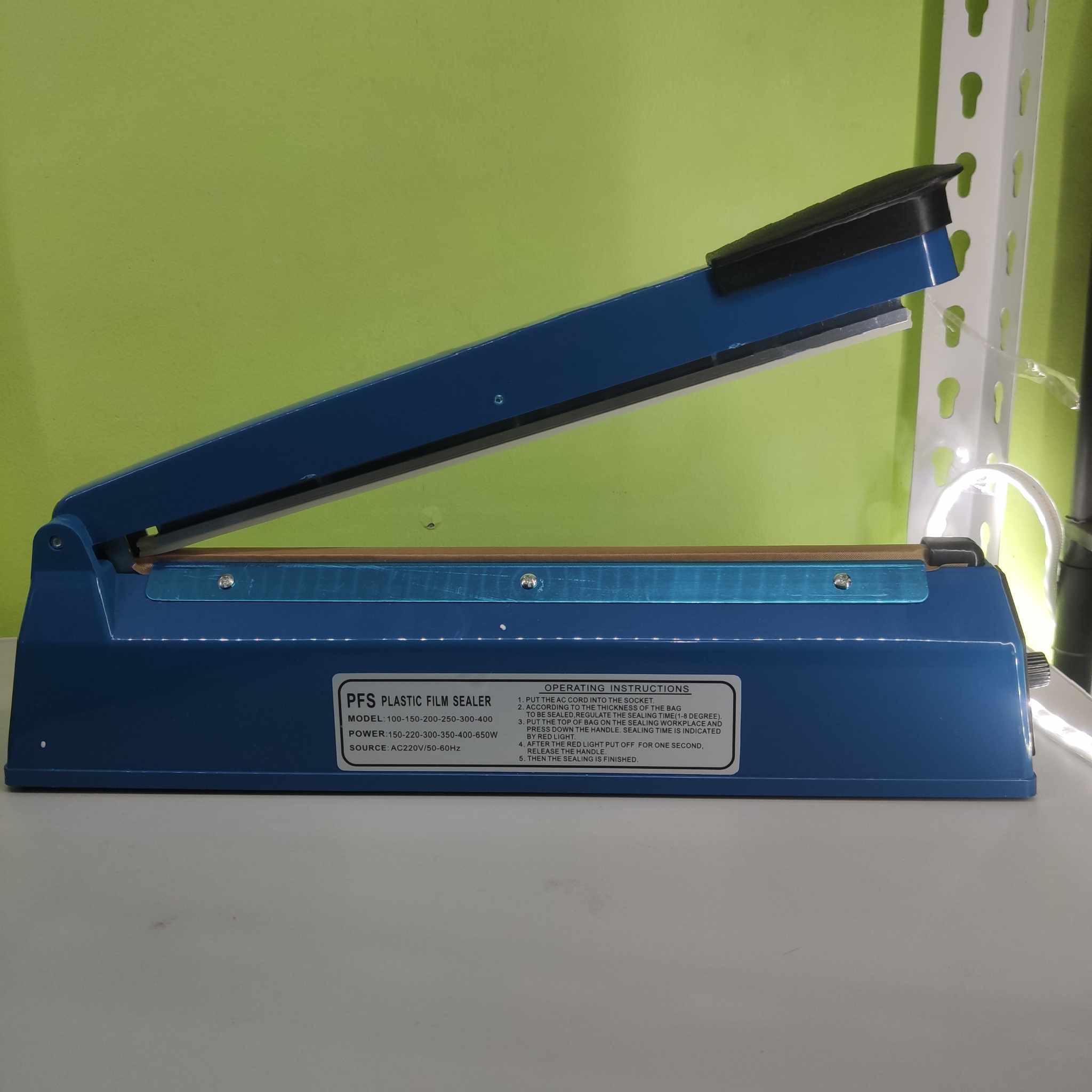

Hand Impulse Bag Sealer Plastic Film Sealing Machine PFS-250

Make and Export Hand Impulse Bag Sealer 10 Inch / 250mm / 25cm Width Plastic Film Paper Heat Sealing Machine PFS-250 In Factory From China.Hand Impulse Bag Sealer Plastic Body PFS-Series Plastic Film Paper Heat Sealing Machine is a device that uses an electric impulse to heat the jaws of the sealer to a fusion temperature, which causes the material to be sealed permanently by building up heat and pressure. It is beneficial for small parts that require a quick and permanent fixation. The seal area stays clamped and is cooled beneath pressure. Impulse seals are less wider than hot bar seals but can be doubled up. The impulse process may provide a better seal when little contamination is present. (Such as powder and liquid products) Voltage and duration are varied according to the material.Sealing PE films with heated wires or strips is common to create welded seals. If the seal is not to be cut through the web, the heating strip has covered so that it doesn’t stick to the molten polymer and destroy the seal.It is achieved by covering the strip with a release sheet such as PTFE-covered glass fiber woven cloth. The resultant seals gain 100% film strength. Using PE sealing equipment, it is possible to make the same type of seals with coextruded OPP, but the seals are more sensitive to tearing close to the seal due to the expected easy tear propagation caused by high-stress orientation.

Hand Impulse Bag Sealer 10 Inch / 250mm / 25cm Width Plastic Film Paper Heat Sealing Machine Features:

Max.Sealing Length: 10 Inch / 250mm / 25cm

Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max thickness for seal: 0.6mm
Can OEM Products

Light, portable - Fits comfortably on any table

Fast impulse sealing of all types of plastic bags- including many laminates

Seals thin as well as thick materials

Just plug in and use, no warm up needed

Durable and economical

Plug-in electronic timer for variable control

Easy to Operate,Set the timer; insert the bag between the sealing bars, then press down and release. We recommend that the user hold the sealing arm down for an additional second or two to ensure enough time for the bag to set and cool.
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.

Hand Impulse Bag Sealer 10 Inch / 250mm / 25cm Width Plastic Film Paper Heat Sealing Machine Specifications:

Model: PFS-250
Color: Light Blue,Green,White or Red
Max.Sealing Length:10 Inch / 250mm / 25cm
Width for seal: 2mm
Heat Time: 0.2 -1.5s
Max Thickness For Seal: 0.6mm
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 350 W
Dimensions: 38 X 10.2 X 18.3Cm (L X W X H)
Weight: 1.58 Kg
Comes With 2 Replacement Kits.
SAA approval plug: US plug/EU plug/UK plug/AU plug
CE Certified
Material: ABS Plastic Shell + Aluminum construction

Our plastic bag sealing machine is lightweight and easy to use.

Simply place the bag onto the sear bar, press the handle, and release!

The poly bag sealer safely uses heat and pressure to make airtight, watertight seals through wrinkles, gussets, and multiple film layers.

This machine also has an adjustable timer that automatically presets the wielding time, giving you the perfect seal every time, regardless of bag thickness.

All heat sealers have an unmistakably solid construction for stability and accuracy.

Hand Impulse Bag Sealer 10 Inch / 250mm / 25cm Width Plastic Film Paper Heat Sealing Machine Package Includes:

1 X PFS-250 Hand Impulse Bag Sealer
2 X Spare Heat Wires
2 X Spare Teflon Sheets
1 X English Instructions
Color Box Size:38 X 10.2 X 18.3cm (L X W X H)
PFS-250 Hand Impulse Bag Sealer Weight:1.58 Kg

1 PCS/Color Box
10 PCS/CTN
Carton Size:535 X 395 X 360mm
G.W/CTN:16.4 Kg

HS CODE:8422303090

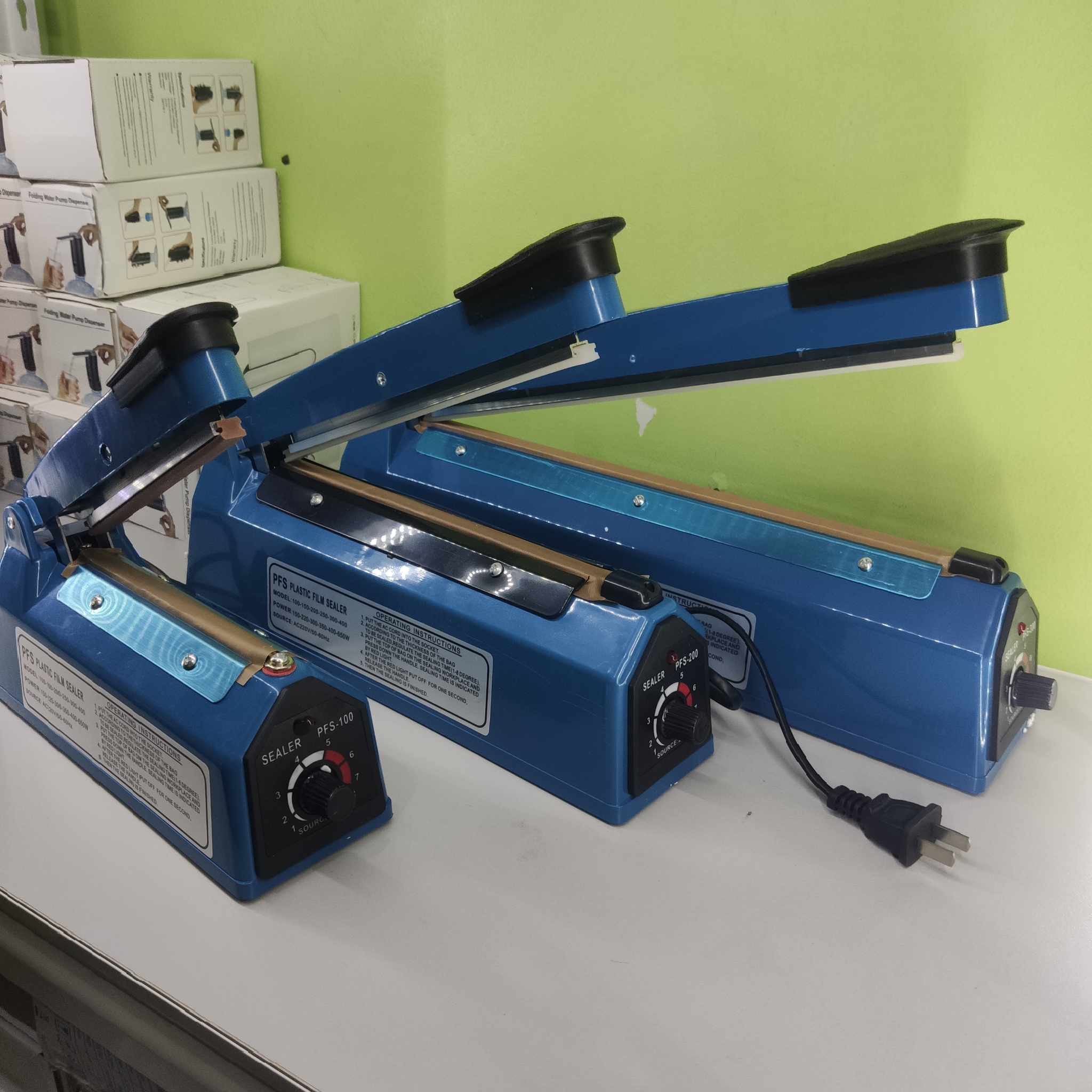

Hand Impulse Bag Sealer Plastic Body PFS-Series Plastic Film Paper Heat Sealing Machine Specification:

**Zhejiang Tianyu Industry Co. Ltd Supplier Factory Manufacturer Make and Export Hand Impulse Bag Sealer Plastic Body PFS-Series Plastic Film Paper Heat Sealing Machine Specification**
Model.	PFS-100	PFS-150	PFS-200	PFS-250	PFS-300	PFS-400
Impulse voltage	AC220V/50HZ or AC110V/60HZ
Impulse power	150W	220W	300W	350W	400W	600W
Max sealing length	100mm (4 inch)	150mm (6 inch)	200mm (8 inch)	250mm (10 inch)	300mm (12 inch)	400mm (16 inch)
Max sealing width	2mm					3mm
Max sealing thickness	0.6mm	0.6mm	0.6mm	0.8mm	0.8mm	0.8mm
Adjustable heating time	0.2-1.5 s					0.2-2 s
Dimensions (LX W X H)mm	245X95X170	295X95X180	330X100X172	380X102X183	430X102X175	575X105X190
Weight	1.06KGS	1.24KGS	1.26KGS	1.58KGS	1.68KGS	2.82KGS
Package	1 PCS/Color Box
QTY/CTN	20 PCS	20 PCS	10 PCS	10 PCS	10 PCS	10 PCS
Carton Size(mm)	490X255X640	525X295X655	510X345X360	535X395X360	525X445X360	590X555X390
G.W/CTN(Kg)	23	25.84	13.38	16.4	17.78	26.5
QTY(sets)/20'GP	7000	5500	4450	3700	3350	2200
QTY(sets)/40'GP	14500	11500	9200	7650	6900	4550
QTY(sets)/40'HQ	17000	13400	10800	8950	8100	5350

Zhejiang Tianyu Industry Co. Ltd Supplier Factory Manufacturer Make and Export Hand Impulse Bag Sealer Plastic Body PFS-Series Plastic Film Paper Heat Sealing Machine
