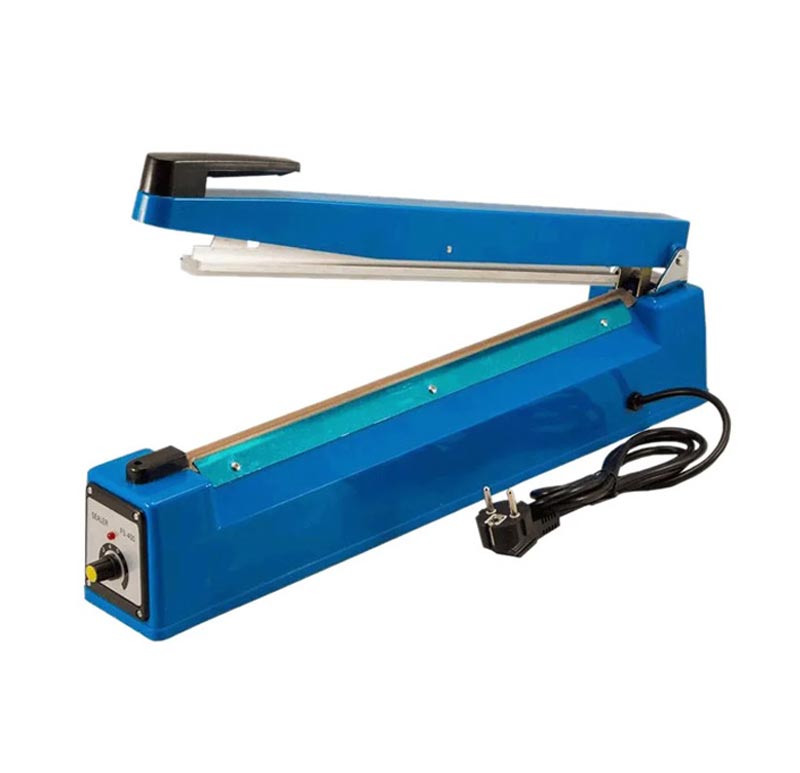

Impulse Sealer Hand Poly Bag Film Heat Seal Machine PFS-200
Product Details
Make and Export Impulse Sealer 8 inch / 200 mm / 20 cm Wide Hand Poly Bag Film Heat Seal Machine PFS-200 In Factory From China.Impulse Sealer Plastic ABS Shell PFS-Series Hand Poly Bag Film Heat Seal Machine is a device that uses a brief surge of electrical current to heat a sealing wire, which then thermally bonds materials together.This method is particularly effective for sealing plastic materials.
Its operating principle is straightforward,when activated, a short, high-current impulse is sent through a heating element or wire.This rapid heating is sufficient to melt and seal the adjoining surfaces of the material being sealed.Once the current stops, the material cools and solidifies, forming a secure seal.
Impulse Sealers Plastic ABS Shell PFS-Series Hand Poly Bag Film Heat Seal Machines are widely used in various industries, including food packaging, industrial product packaging, and medical supplies packaging.They are particularly effective for sealing bag openings.Notable features of these sealers include their ability to minimize heat transfer, thanks to the brief heating period, and their capability for precise sealing.They are also compatible with a wide range of materials.For optimal results, it's important to choose a sealer appropriate for the material and to adjust the sealer settings accurately for the specific sealing task.
Impulse Sealer 8 inch / 200 mm /20 cm Wide Hand Poly Bag Film Heat Seal Machine Features:
Adjustable timer for different poly thicknesses.
Sealing Length:8 inch / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.6 mm
Can OEM Products
Impulse Sealer 8 inch / 200 mm / 20 cm Wide Hand Poly Bag Film Heat Seal Machine Description:
Sealing Length:8 inch / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.6 mm
Can OEM Products
Precise Control-Impulse sealers allow for exact control over the sealing process, ensuring a strong and reliable seal every time.
Energy Efficiency-By using a brief burst of heat, impulse sealers reduce energy consumption and minimise the risk of overheating.
Flexibility-These sealers can handle a wide range of materials, including plastic bags, poly bags, and various packaging materials.
Safety-Designed with safety in mind, impulse sealers feature automatic shut-off and other safety mechanisms to prevent accidents.
Cost-Effective-Often more affordable than other types of heat sealers, impulse sealers provide excellent value for money, making them a smart investment for businesses.
Read the Manual-Before using an impulse heat sealer, thoroughly read the manual to understand the operating instructions and safety features.
Keep Children Away-Ensure that children are kept away from the impulse heat sealer while it’s in operation to prevent accidents.
Avoid Overheating-Be cautious not to overheat the impulse heat sealer, as this can cause damage to the machine and pose a fire hazard.
Regular Maintenance-Perform regular maintenance on the impulse heat sealer to keep it in good working condition and to prevent any malfunctions or accidents.
CE,RoHS and CCC Certified.
Impulse Sealer 8 inch / 200 mm / 20 cm Wide Hand Poly Bag Film Heat Seal Machine Description:
-
Model:PFS-200
Color:Light Blue,Green,White or Red
Sealing Length: 8 inch / 200 mm / 20 cm
Width for seal: 2 mm
Heat Time: 0.2 -1.5 s
Max thickness for seal: 0.6 mm
Source: AC110V / 60Hz or AC220V / 50Hz
Power: 300 W
Dimensions: 33 X 10 X 17.2 cm (L X W X H)
Weight: 1.26 Kg - Material: Plastic ABS Shell + Aluminum Frame
- Impulse Sealer Plastic ABS Shell PFS-Series Hand Poly Bag Film Heat Seal Machine can seal plastic sheets, bags, or flat tubing. Safely seal polyethylene and polypropylene plastics up to 0.6mm thick. Sealers feature a timing knob for safe sealing. Simply set timing knob, press handle down on plastic, and remove when timing light indicates complete cycle. Heating element is hot only when sealing.
1 X PFS-200 Impulse Sealer
2 X Extra Teflon Sheets
2 X Extra Heater Elements
1 X English User Manual
Color Box Size: 33 X 10 X 17.2 cm
PFS-200 Impulse Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51 X 34.5 X 36 cm
G.W/CTN:13.38 Kg
2 X Extra Teflon Sheets
2 X Extra Heater Elements
1 X English User Manual
Color Box Size: 33 X 10 X 17.2 cm
PFS-200 Impulse Sealer Weight:1.26 Kg
1 PCS/Color Box
10 PCS/CTN
Carton Size:51 X 34.5 X 36 cm
G.W/CTN:13.38 Kg
HS CODE:8422303090

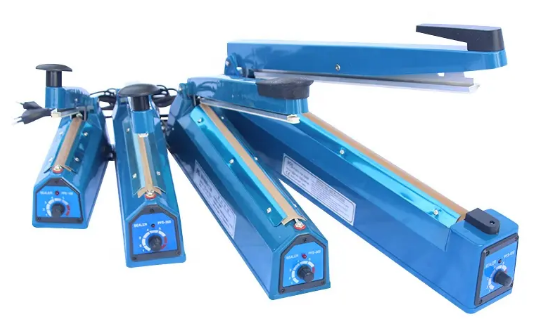

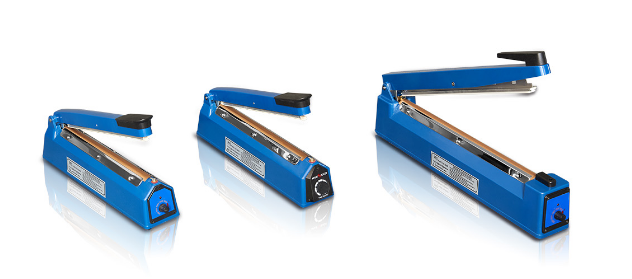

Impulse Sealer Plastic ABS Shell PFS-Series Hand Poly Bag Film Heat Seal Machine Specification:
| Model No | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Max sealing length |
100 mm (4 Inch) |
150 mm (6 Inch) |
200 mm (8 Inch) |
250 mm (10 Inch) |
300 mm (12 Inch) |
400 mm (16 Inch) |
| Max sealing thickness | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm | 0.3 mm |
| Max sealing width | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 3 mm |
| Heating time | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-2 s |
| Timer Setting | 8 Grade | |||||
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
