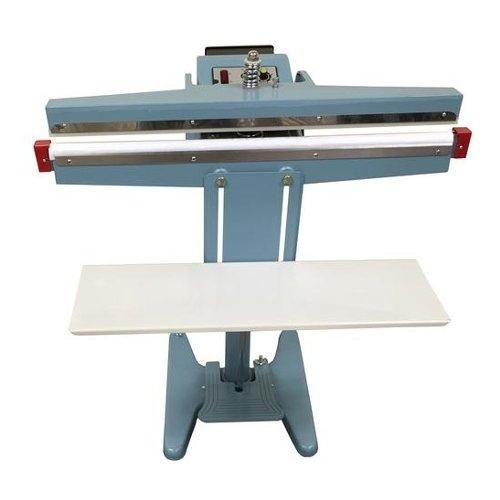

Foot Operated Impulse Sealer with 32-inches Seal Bar PFS-800
Product Details
Wholesale Foot Operated Impulse Sealer with 32-inches Seal Bar and 8 mm Seal Width Flat Wire Sealing Machine From Factory In China.Foot Operated Impulse Sealer PFS-Series Foot Operated Sealing Machine is Suitable for high-volume polybag and other thermoplastic sealing, the PFS-Series Foot Operated Sealing Machine Impulse Sealer with 2mm,3mm,5mm,8mm,or 10mm seal width can handle materials up to 32 inches wide and up to 16 mil total thickness.The PFS-Series Foot Operated Sealing Machine has a plug-in timer that regulates the sealing time required for various materials and accurately produces a flat seal after setting.It has a 26" pedestal, a 2" base, an adjustable worktable, and an adjustable foot control.This light blue sealer allows for hands-free sealing, is easy to operate, and can seal 15-20 bags per minute.

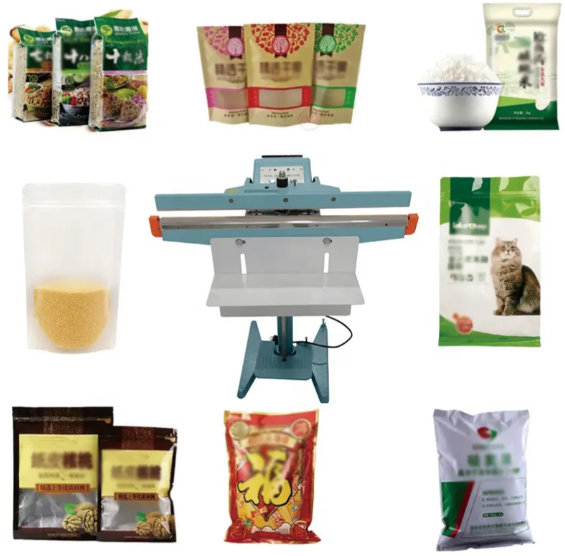

Foot Operated Impulse Sealer PFS-Series Foot Operated Sealing Machine is widely applied to seal all kinds of plastics films, compound films and Aluminum-plastic film.Foot Operated Impulse Sealer PFS-Series Foot Operated Sealing Machine is widely used in such industries as foodstuff, special local products, tea, medicine, hardware etc. They are most convenient and economical sealing equipments for shops, families and factories.
Foot Operated Impulse Sealer with 32-inches Seal Bar and 8 mm Seal Width Flat Wire Sealing Machine Features:
Maximum Sealing Length: 32 Inches / 800 mm / 80 cmMaximum Bag Sealing Thickness: 0.8 mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
Ideal for high-volume poly bag and other thermoplastic sealing
Allows you to keep your hands free for quicker and more accurate sealing.
Plug-in electronic timer for variable control.
Includes a 26” pedestal, a 2” base, adjustable work table, and adjustable foot control.
All metal construction.
Heavy duty.
No warm-up time.
Sits on rectangular stand for stability.
Easy to operate:
Set the timer. Insert the bag between the two sealing bars and press down on the foot board. Hold down the foot board for an additional 2-3 seconds after the timer light goes off to set the seal.
CE,RoHS and CCC Certified.
Foot Operated Impulse Sealer with 32-inches Seal Bar and 8 mm Seal Width Flat Wire Sealing Machine Specification:
Model:PFS-800
Maximum sealing length:32 Inches / 800 mm / 80 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5 s
Film thickness: PE 0.06-0.2 mm / PP 0.03-0.8 mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1800 W
Welding time: Infinitely Adjustable
External Dimensions (L X W X H) (mm): 855 X 570 X 880 mm
Net Weight:29 Kg
Material: Die-cast Aluminium Alloy
Foot Operated Impulse Sealer with 32-inches Seal Bar and 8 mm Seal Width Flat Wire Sealing Machine Package List:
1 X PFS-800 Foot Operated Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
Model:PFS-800
Maximum sealing length:32 Inches / 800 mm / 80 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5 s
Film thickness: PE 0.06-0.2 mm / PP 0.03-0.8 mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1800 W
Welding time: Infinitely Adjustable
External Dimensions (L X W X H) (mm): 855 X 570 X 880 mm
Net Weight:29 Kg
Material: Die-cast Aluminium Alloy
Foot Operated Impulse Sealer PFS-Series Foot Operated Sealing Machine is used to seal plastic bags and or seal and cut plastic film using heat to join similar materials together. Heat Sealing uses either a sealing wire that can be round or flat in different widths or a sealing element to apply heat to the contact area to seal or weld the thermoplastic together. Depending on the machine used heat sealing will only take seconds to achieve a perfect seal.
Foot Operated Impulse Sealer with 32-inches Seal Bar and 8 mm Seal Width Flat Wire Sealing Machine Package List:
1 X PFS-800 Foot Operated Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size: 800 X 530 X 250 mm
Net Weight:29 Kg
HS CODE:8422303090
Foot Operated Impulse Sealer PFS-Series Foot Operated Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size: 800 X 530 X 250 mm
Net Weight:29 Kg
HS CODE:8422303090
Foot Operated Impulse Sealer PFS-Series Foot Operated Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length | 14 Inches/350mm | 18 Inches/450mm | 26 Inches/650mm | 32 Inches/800mm |
| Sealing Width | 2 mm /3 mm/5 mm/8 mm/10 mm | |||
| Max.sealing thickness | 0.8 mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions(mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
