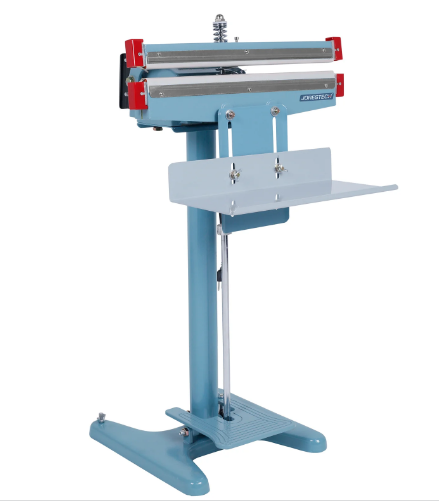

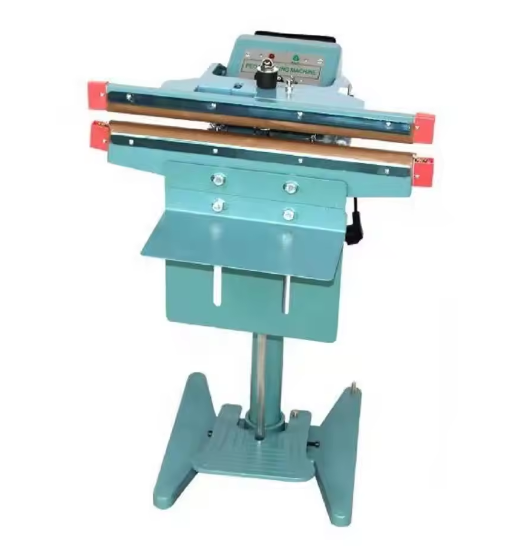

Foot Impulse Sealer With Double 14-Inches Seal Bar PFS-350D
Product Details
Supply Foot Operated Impulse Sealer With Double 14-Inches Heating Sealing Bar Machine In Factory From China.Foot Operated Impulse Sealer With Double Heating Sealing Bar Machine PFS-D-Series Foot Pedal Heat Packing Machine is made in steel or alum.Casting with powder coating, is ideal for sealing large quantity.By foot operated, it is easier for user to operate machine by foot, 2 hands hold the bags well operated to make an excellent and perfect sealing.Congealing time is necessary to an excellent and perfect sealing.
Foot-controlled impulse sealers with built-in cutting blade. Seal length is up to 26 inches, seal width is 5mm,8mm or 10 mm (according to modification). These models are designed for producing and closing large heavy bags up to the thickness of 0.8 mm. These sealers are standardly equipped with thermistor (thermal protection of transformer). It is possible to buy height extender as a optional equipment for these sealers.
Foot Operated Impulse Sealer With Double Heating Sealing Bar Machine PFS-D-Series Foot Pedal Heat Packing Machine is ideal for high volume poly bags and other thermoplastic sealing applications. Capable of sealing 15-20 bags per minute while allowing you to keep both hands free for quicker and more accurate sealing. Features a 24-inch seal length and a 5mm wide seal. includes a 26-inch pedestal, a 2-inch base, an adjustable worktable, and an adjustable foot control.
Foot Operated Impulse Sealer With Double 14-Inches Heating Sealing Bar Machine Features:
Maximum sealing length:14 Inches / 350 mm / 35 cmMaximum bag sealing thickness:1 mm X 2
Sealing Width 10 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
No warmup time.
Single sealing : PE, PP, OPP, PVC, POF, etc, plastic materials.
Double sides sealing : alum, gusset (folded) bags
Foot operated pedestal impulse heat sealers are very handy for larger bags where both hands are required to hold your bag whilst sealing.
They also come with an adjustable table and pedestal extension for the taller operator.
The foot pedal angle and stroke is adjustable for maximum operator comfort.
The control is a single “set and forget” timer which automatically impulses the element and shuts it off in one quick action.
There is no danger of over sealing if the pedal is held down too long.
Food Industry: Seal pouches for tea, confectionery, snacks, and powders with precision.
Industrial Packaging: Ideal for LD, PP, and BOPP pouch sealing, from small sachets to 25 kg packs.
Manufacturing: Boost efficiency in sealing processes across various production lines.
Retail: Ensure secure and appealing packaging for retail products.
It can seal polythene, poly propylene and multi-layer compound plastics.
Height adjustable shelf for bag makes sealing easier.
Up and down sealing earns high efficiency.
Strong aluminum body.
And it is irreplaceable by other sealing machine.
CE,RoHS and CCC Certified.
Foot Operated Impulse Sealer With Double 14-Inches Heating Sealing Bar Machine Specification:
Model:PFS-350D
Maximum sealing length:14 Inches / 350 mm / 35 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450 X 540 X 880 mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
Foot Operated Impulse Sealer With Double Heating Sealing Bar Machine PFS-D-Series Foot Pedal Heat Packing Machine adopts electronic pulse technology with high power transformer to shorten sealing time from 2-4S to just 0.2S, it is cost performance for sealing operation. Easy operation for all series films' sealing, with beautiful appearance and long term usage life.
Foot Operated Impulse Sealer With Double 14-Inches Heating Sealing Bar Machine Package List:
1 X PFS-350D Foot Operated Impulse Sealer
2 X Extra Heating Wires
2 X Extra Teflon Clothes
Model:PFS-350D
Maximum sealing length:14 Inches / 350 mm / 35 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 10 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450 X 540 X 880 mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
Foot Operated Impulse Sealer With Double Heating Sealing Bar Machine PFS-D-Series Foot Pedal Heat Packing Machine adopts electronic pulse technology with high power transformer to shorten sealing time from 2-4S to just 0.2S, it is cost performance for sealing operation. Easy operation for all series films' sealing, with beautiful appearance and long term usage life.
Foot Operated Impulse Sealer With Double 14-Inches Heating Sealing Bar Machine Package List:
1 X PFS-350D Foot Operated Impulse Sealer
2 X Extra Heating Wires
2 X Extra Teflon Clothes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Foot Operated Impulse Sealer With Double Heating Sealing Bar Machine PFS-D-Series Foot Pedal Heat Packing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Foot Operated Impulse Sealer With Double Heating Sealing Bar Machine PFS-D-Series Foot Pedal Heat Packing Machine Specification:
| Model. | PFS-300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Max.Sealing Length |
12 Inches (300mm) |
14 Inches (350mm) |
18 Inches (450mm) |
26 Inches (650mm) |
| Sealing Width | 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
