Impulse Foot Sealer Poly Tubing Heat Sealing Machine PFS-350
Product Details
Wholesale Impulse Foot Sealer 14 Inches Wide Foot Pedal Operated Poly Tubing Heat Sealing Machine In Factory From China.Impulse Foot Sealer PFS-Series Foot Pedal Operated Poly Tubing Heat Sealing Machine is heavy duty sealers, specially manufactured to increase sealing production.Equipped with foot pedal activator, the user's hands are free to feed the machine.The Impulse Type Foot Sealers come complete with pedestal, stand, adjustable worktable and adjustable foot pedal.An added bonus is the Foot Sealers can be operated by one person, without assistance.
Foot-operated impulse sealers are ideal for high volume poly bag and other thermoplastic sealing.The sealers are capable of sealing 15-20 bags per minute.These sealers allow you to keep both hands free for quicker and more accurate sealing.The machines are also equipped with a plug-in timer.The timer controls the sealing time needed for different materials.Once the timer is set, it will give a consistently flat seal.When seal is done, the sealer will automatically beep or the signal light on the timer will turn off.
Impulse Foot Sealer PFS-Series Foot Pedal Operated Poly Tubing Heat Sealing Machine are available in 14 inches, 18 inches , 26 inches & 32 inches with a 2mm,3mm,5mm,8mm,10mm seal width.Depending on the model of the sealer, materials up to 16 mil total thickness can be sealed.The sealers include a 26” pedestal, a 2” base, an adjustable worktable, & an adjustable foot control.
Easy to operate,Set the timer, insert the bag between the sealing bars, press down the foot board & release after timer goes off. To enhance the appearance of the seal, hold down the foot board for an additional 1 to 2 seconds after the timer light goes off.
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
Impulse Foot Sealer 14 Inches Wide Foot Pedal Operated Poly Tubing Heat Sealing Machine Features:
Maximum sealing length:14 Inches / 350 mm / 35 cmMaximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
High quality foot type sealing machine
Suitable for poly bags, alum. bags, multi-layer bags,
Medical and special material bags
Safety CE approved
Ideal for high volume sealing
Plug-in electronic time for variable control
High quality sealing machine
Suitable for plastic bags
Injection die casted body
No warm-up time
This sealer features a foot pedal activator, allowing for hands-free operation.
Adjustable worktable, and adjustable foot pedal.
For added convenience and customization, there are additional options available such as heavy-duty worktables, taller stands, and tilt head adjustments, which can be purchased separately.
It is a reliable and versatile tool for sealing packages and ensuring secure shipments.
Impulse Heat Sealers are best suited for KEL-F, POLYFLEX, P.V.A., POLYETHYLENE, POLYURETHANE, POLYVINYLCHLORIDE, POLYPROPYLENE, PLIOFILM, TIVAC, SARAN and most other heat sealable materials.
Sits on rectangular base for stability.
Impulse Foot Sealer 14 Inches Wide Foot Pedal Operated Poly Tubing Heat Sealing Machine Specification:
Model: PFS-350
Maximum sealing length:14 Inches / 350 mm / 35 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 1200 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH): 450 X 540 X 880 mm
Net Weight:19 Kg
Material: Die-cast Aluminium Alloy

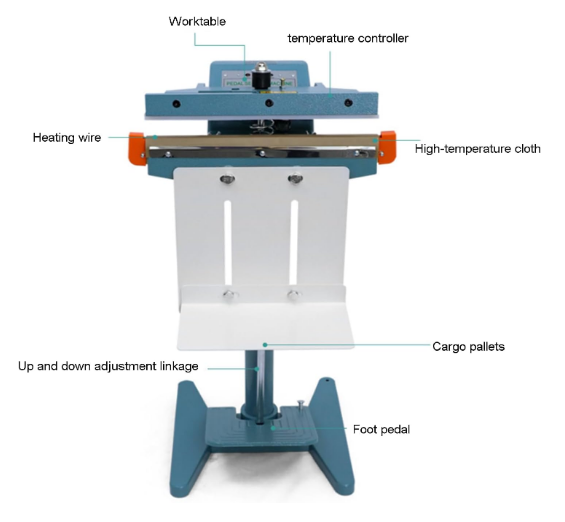

To use Impulse Foot Sealer PFS-Series Foot Pedal Operated Poly Tubing Heat Sealing Machine, the bag or pouch is placed between the heating element and the clamping bar. The foot pedal is then depressed, activating the heating element and applying pressure to the bag or pouch, which melts the plastic and creates a seal. The foot pedal is then released, and the sealed bag or pouch can be removed from the machine.
Impulse Foot Sealer 14 Inches Wide Foot Pedal Operated Poly Tubing Heat Sealing Machine Package List:
1 X PFS-350 Impulse Foot Sealer
2 X Replacement Heating Elements
2 X Replacement Teflon Tapes
Model: PFS-350
Maximum sealing length:14 Inches / 350 mm / 35 cm
Maximum bag sealing thickness: 0.8 mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 1200 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH): 450 X 540 X 880 mm
Net Weight:19 Kg
Material: Die-cast Aluminium Alloy
To use Impulse Foot Sealer PFS-Series Foot Pedal Operated Poly Tubing Heat Sealing Machine, the bag or pouch is placed between the heating element and the clamping bar. The foot pedal is then depressed, activating the heating element and applying pressure to the bag or pouch, which melts the plastic and creates a seal. The foot pedal is then released, and the sealed bag or pouch can be removed from the machine.
Impulse Foot Sealer 14 Inches Wide Foot Pedal Operated Poly Tubing Heat Sealing Machine Package List:
1 X PFS-350 Impulse Foot Sealer
2 X Replacement Heating Elements
2 X Replacement Teflon Tapes
1 X English User Manual
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Impulse Foot Sealer PFS-Series Foot Pedal Operated Poly Tubing Heat Sealing Machine Specification:
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Impulse Foot Sealer PFS-Series Foot Pedal Operated Poly Tubing Heat Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length |
350mm (14 Inches) |
450mm (18 Inches) |
650mm (26 Inches) |
800mm (32 Inches) |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
