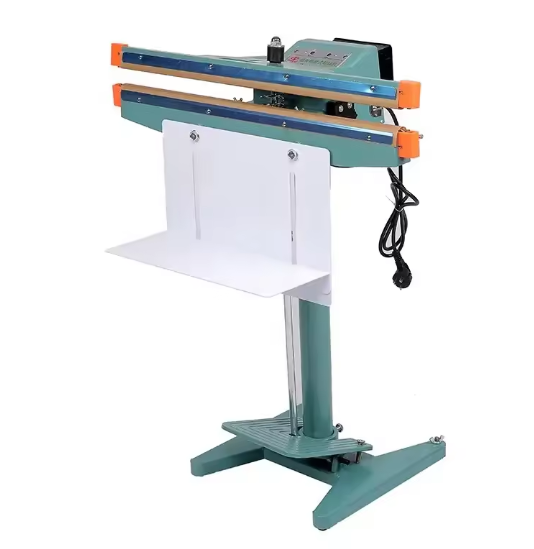

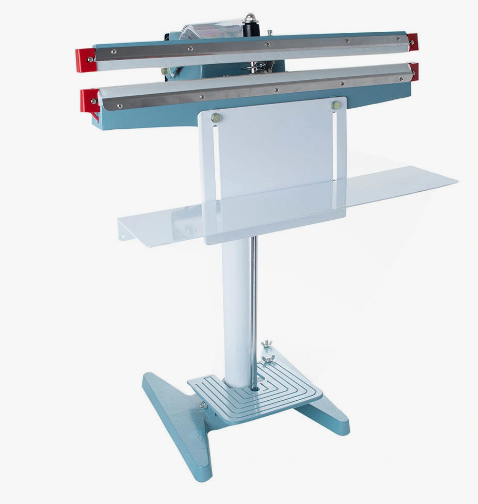

Foot Impulse Sealer 5 mm Width Plastic Seal Machine FSP-650D
Product Details
Manufacture and Supply Foot Impulse Sealer FSP-650D Foot Pedal Operated 26 Inches / 650 mm / 65 cm Long 5 mm Width Plastic Seal Machine By Zhejiang Tianyu Industry Co.,Ltd.Supplier Factory Manufacturer In China.Foot Impulse Sealer PFS-Series Foot Pedal Operated Plastic Seal Machine is ideal for high-volume poly bag sealing. Available in 14", 18" ,26" and 32" lengths with a 2mm,3mm,5mm,8mm or 10mm seal, the foot sealers are capable of sealing 15-20 bags/min.These sealers allow you to keep your hands free for quicker and more accurate sealing.The machines are also equipped with a plug-in timer.Once the timer is set, the sealer provides a consistently flat seal.The sealers are light blue in color.Depending on the model of the sealer, materials up to 32" wide with a 16 mil total thickness an be sealed.The distance from floor to sealing area is 32".The sealers include a 26" pedestal, 2" base, adjustable work table, and adjustable foot control.Work table measures 12"L x 5"W while the adjusting plate measures 9-1/2"L x 10"W. An optional 36" pedestal for standing operation is available.The manufacturer's replacement kit includes two elements.
Foot Impulse Sealer FSP-650D Foot Pedal Operated 26 Inches / 650 mm / 65 cm Long 5 mm Width Plastic Seal Machine Features:
Maximum Sealing Length:26 Inches / 650 mm / 65 cmMaximum Bag Sealing Thickness:1 mm X 2
Sealing Width 5 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Easy to operate – Foot press – no warm-up time
No preheating required.
Single or twin heating could be chose depends on customer’s demands.
Twin element: available for aluminum bag, tinfoil bag, sterilization bag.
Single element: PE, PP, PVC, OPP, POF…plastic bag.
Sealing width: 5mm or 10mm
Additional accessories:
Can add an electric magnet or pneumatic eqipment for pedal switch controled.
Date coder.
Suitable for lots of applications including powder and liquid products; great for sealing coffee bags.
Foot Impulse Sealer FSP-650D Foot Pedal Operated 26 Inches / 650 mm / 65 cm Long 5 mm Width Plastic Seal Machine Specification:
Model: PFS-650D
Maximum sealing length: 26 Inches / 650 mm / 65 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 5 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700 X 570 X 880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Foot Impulse Sealer PFS-Series Foot Pedal Operated Plastic Seal Machine is redesigned and manufactured on the basis of advanced domestic and foreign models. It is suitable for all plastic bag film sealing and bag making.It is an ideal sealing equipment for food factories,cosmetics factories.
Foot Impulse Sealer FSP-650D Foot Pedal Operated 26 Inches / 650 mm / 65 cm Long 5 mm Width Plastic Seal Machine Package List:
1 X PFS-650D Foot Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
Model: PFS-650D
Maximum sealing length: 26 Inches / 650 mm / 65 cm
Maximum bag sealing thickness: 1 mm X 2
Sealing Width 5 mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700 X 570 X 880 mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Foot Impulse Sealer PFS-Series Foot Pedal Operated Plastic Seal Machine is redesigned and manufactured on the basis of advanced domestic and foreign models. It is suitable for all plastic bag film sealing and bag making.It is an ideal sealing equipment for food factories,cosmetics factories.
Foot Impulse Sealer FSP-650D Foot Pedal Operated 26 Inches / 650 mm / 65 cm Long 5 mm Width Plastic Seal Machine Package List:
1 X PFS-650D Foot Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:24 Kg
HS CODE:8422303090
Foot Impulse Sealer PFS-Series Foot Pedal Operated Plastic Seal Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:24 Kg
HS CODE:8422303090
Foot Impulse Sealer PFS-Series Foot Pedal Operated Plastic Seal Machine Specification:
| Model. | PF-S300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Sealing Length | 12 Inches (300mm) | 14 Inches (350mm) | 18 Inches (450mm) | 26 Inches (650mm) |
| Sealing Width | 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
