  • Semi Automatic Boba Tea Coffe Cup Sealer Seal Machine CS-A2

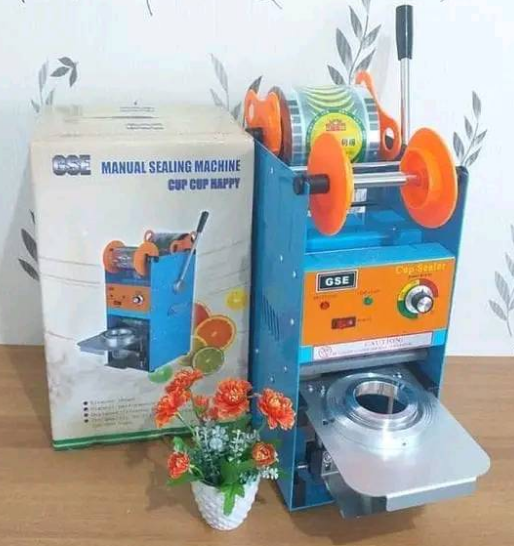

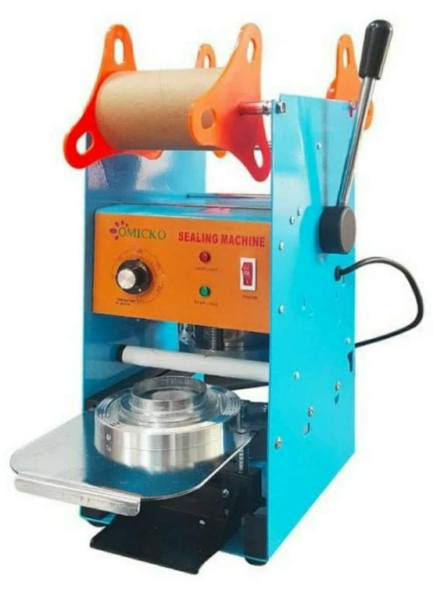

Semi Automatic Boba Tea Coffe Cup Sealer Seal Machine CS-A2

Product Details

Make and Sale Semi Automatic Boba Tea Coffe Cup Sealer CS-A2 Hand Heat Sealing Machine From Zhejiang Tianyu industry Co. Ltd. Supplier Factory Manufacturer.Semi Automatic Boba Tea Coffe Cup Sealer Sealing Diameter Cup 72mm / 78mm / 90mm / 95mm CS-A Series Hand Heat Sealing Machine can be used to seal PP plastic cups and paper cups. The material of the cup should be same as the material of the sealing film.The body of the cup sealing machine is with thick sheet metal and the key parts such as upper and lower templates and guide rails are made of stainless steel.Heavy duty and durable mild steel structure provides commercial quality reliability you can depend on and makes this an everyday workhouse.It's small and doesn't take up too much space for you. It's suitable for bakeries, cafes, drinks shops and breakfast shops.Simple operation, quick sealing, you can seal 300-500 cups per hour , saving your time and improving your work efficiency.

Semi Automatic Boba Tea Coffe Cup Sealer CS-A2 Hand Heat Sealing Machine Feature:

Suitable Cup Dia: 72mm / 78mm / 90mm / 95mm
Production capacity: 300~500 cups/hour
Suitable Cup Height: less 120mm
Take a good ground to ensure safe use of electricity.
When the machine fails, you should turn off the power, resume normal temperature before troubleshooting.
The use of the process must not hand into the upper and lower mold, so as not to crush or burns.
Carrying cup push die movement, the die must be carried out at the highest point of stop motion.
Template-carrying cup to a later innermost allowed rebound, or upper and lower mold will be damaged.
The working voltage must be maintained at AC220V or AC110V.



Semi Automatic Boba Tea Coffe Cup Sealer CS-A2 Hand Heat Sealing Machine Specifications:


Model: CS-A2
Color: Blue or Yellow
Suitable Cup Dia : 72mm / 78mm / 90mm / 95mm
Suitable Cup Height: Less 120mm
Production Capacity: 300~500 cups/hour
Temperature Control Range: 0ºC-250ºC/0ºF- 482ºF
Input voltage:AC220V 50Hz or AC110V  60Hz
Power: 300 W
1 PCS/Color Box
Color Box Size:275 X 238 X 478mm
Weight: 9.6 Kg
Material: Iron Case
UL & CSA certificated power cord
CE certified



Semi Automatic Boba Tea Coffe Cup Sealer CS-A2 Hand Heat Sealing Machine Package Includes:

1 X CS-A2 Semi-automatic Tea Cup Sealer
2 X Rolling Tubes With Spring and Rings
1 X Film Collecting Roll
1 X 95 mm Dia Cup Mold
1 X English Product Manual
Color Box Size:275X238X478mm
CS-A1 Semi-automatic Tea Cup Sealer Weight: 9.6 Kg
1 PCS/Color Box

You Choose Add Cup Diameter Mold 72mm / 78mm / 90mm

Semi Automatic Boba Tea Coffe Cup Sealer Sealing Diameter Cup 72mm / 78mm / 90mm / 95mm CS-A Series Hand Heat Sealing Machine Operating Instructions :


1. Power, turn the power switch, indicator lights, the thermostat is set to a predetermined temperature, when the green heating indicator light. When the hot plate reaches a predetermined temperature, the red indicator light is constant (sealing machine at work, electric heating and insulation means constantly alternating states, so green and red lights are constantly alternating, this is normal).
2. The plastic cups were placed in the lower mold slide, slide his hands pushed into the die to determine the location, after touching the limit switch, the module automatically after receiving the signal under the pressure seal, reset automatically rise, touched on travel switch on mold motor stops. film motor begins to turn, turned a predetermined length film by electric eye controlling the motor stops automatically.
3. After the film must be the motor rotation, only pulled lower mold slide the plastic cup into the lower mold slide pushed into the next cycle begins.


HS CODE:8422301090

Semi Automatic Boba Tea Coffe Cup Sealer Sealing Diameter Cup 72mm / 78mm / 90mm / 95mm CS-A Series Hand Heat Sealing Machine Specification:




Zhejiang Tianyu Industry Co. Ltd. Supplier Factory Manufacturer Make and Sale Semi Automatic Boba Tea Coffe Cup Sealer Sealing Diameter Cup 72mm / 78mm / 90mm / 95mm CS-A Series Hand Heat Sealing Machine Specification
Model  No. CS-A1 CS-A2
Color Blue or Yellow
Suitable Cup Dia 72mm / 78mm / 90mm / 95mm
Suitable Cup Height Less 120mm
Production Capacity 300~500 cups/hour
Temperature Control Range 0ºC-250ºC/0ºF- 482ºF
Power Voltage AC220V/50HZ or AC110V/60HZ
Impulse Power 300 W
Color Box Size (L x W x H)mm 350X230X345 275X238X478
Package 1 PCS/Color Box
G.W 8 KGS 9.6 KGS
QTY(sets)/20'GP 1000 870
QTY(sets)/40'GP 2070 1800
QTY(sets)/40'HQ 2430 2100

Zhejiang Tianyu Industry Co. Ltd. Supplier Factory Manufacturer Make and Sale Semi Automatic Boba Tea Coffe Cup Sealer Sealing Diameter Cup 72mm / 78mm / 90mm / 95mm CS-A Series Hand Heat Sealing Machine
Zhejiang Tianyu Industry Co. Ltd. Supplier Factory Manufacturer Make and Sale Semi Automatic Boba Tea Coffe Cup Sealer Sealing Diameter Cup 72mm / 78mm / 90mm / 95mm CS-A Series Hand Heat Sealing Machine
